Quadra-Fire Baffle Board Set – 2362A | Replaces SRV7045-160 | Fits 4100 ACC Model 41I-ACC

Quadra-Fire Baffle Board Set – 2362A | Replaces SRV7045-160 | Fits 4100 ACC Model 41I-ACC | Superwool Plus | 2100°F Heat Rating | Made in USA

Maintain peak efficiency and clean combustion in your Quadra-Fire stove with the Lynn Manufacturing 2362A Replacement Baffle Board Set. This 2-piece set replaces SRV7045-160 and is designed for the Quadra-Fire 4100 Automatic Combustion Control (ACC) system. Crafted from Superwool Plus, a safe, durable ceramic fiber alternative, it offers superior performance and long-lasting reliability under extreme heat conditions.

Key Features:
• Direct OEM Replacement – Replaces Quadra-Fire SRV7045-160
• Includes Two Baffle Boards – Complete, precision-fit replacement set
• High Heat Rated – Withstands up to 2100°F for consistent, long-term performance
• Safe Superwool Material – Non-carcinogenic, no GHS health hazard labels
• Durable & Rigid – Rigidized grey finish enhances structural strength and stability
• Made in the USA – Manufactured by Lynn Manufacturing for trusted quality
• Full Replacement Requires Blanket – Use with Lynn Item #2351E (832-3401)

Specifications:

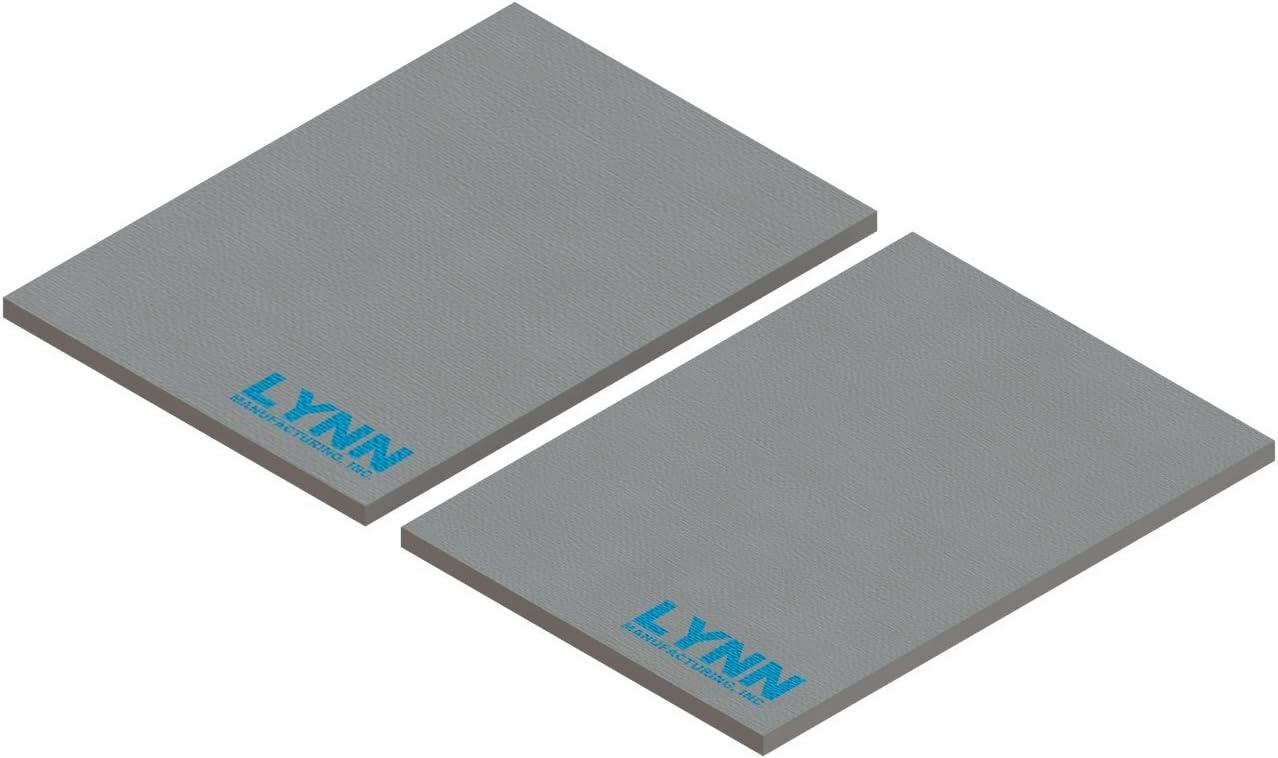

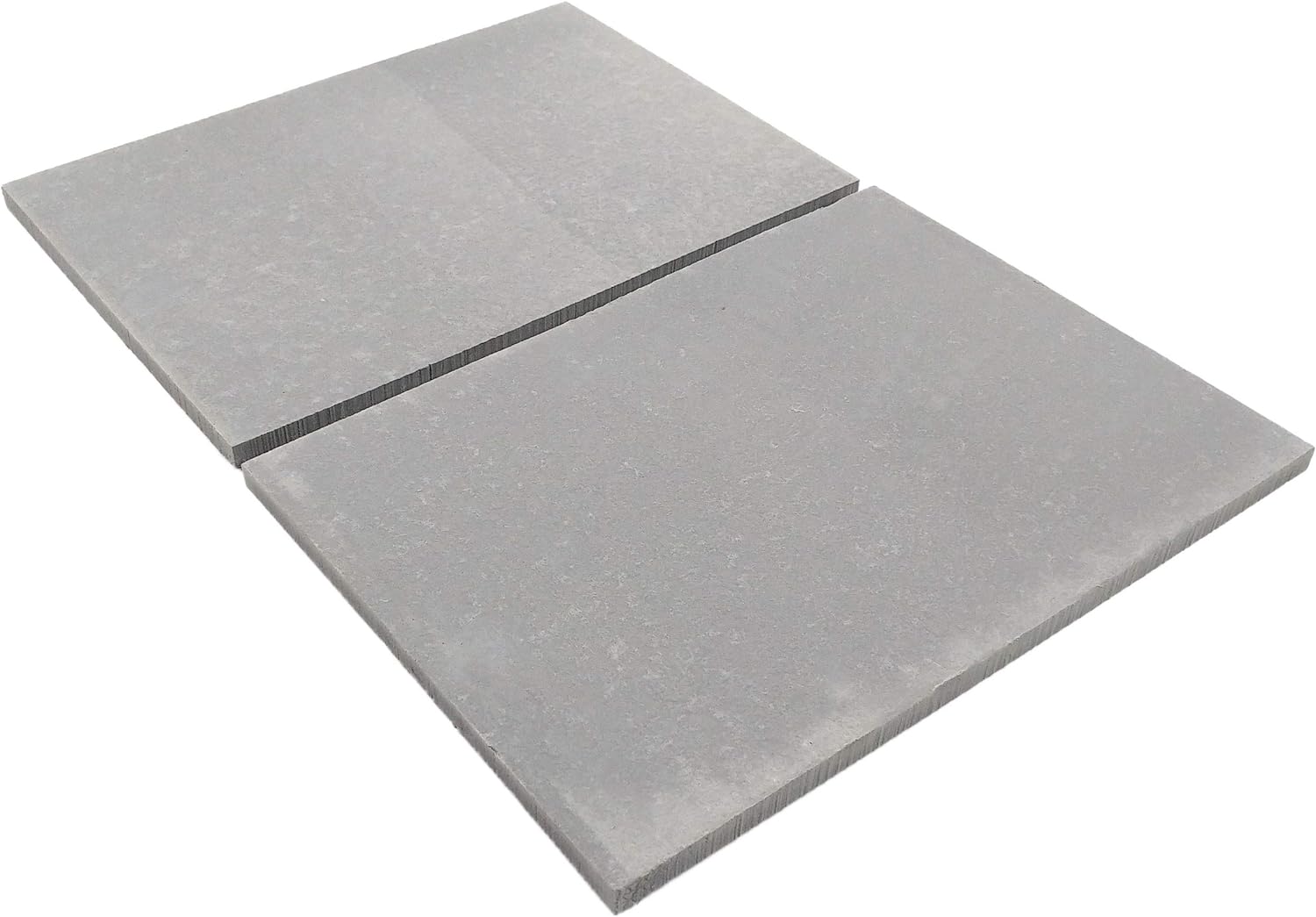

• Product Name: Quadra-Fire Replacement Baffle Board Set
• Part Number: 2362A
• Replaces: SRV7045-160
• Compatibility: Quadra-Fire 4100 ACC including model 41I-ACC
• Does NOT fit ACT (Advanced Combustion Technology) models – see Lynn 2361A

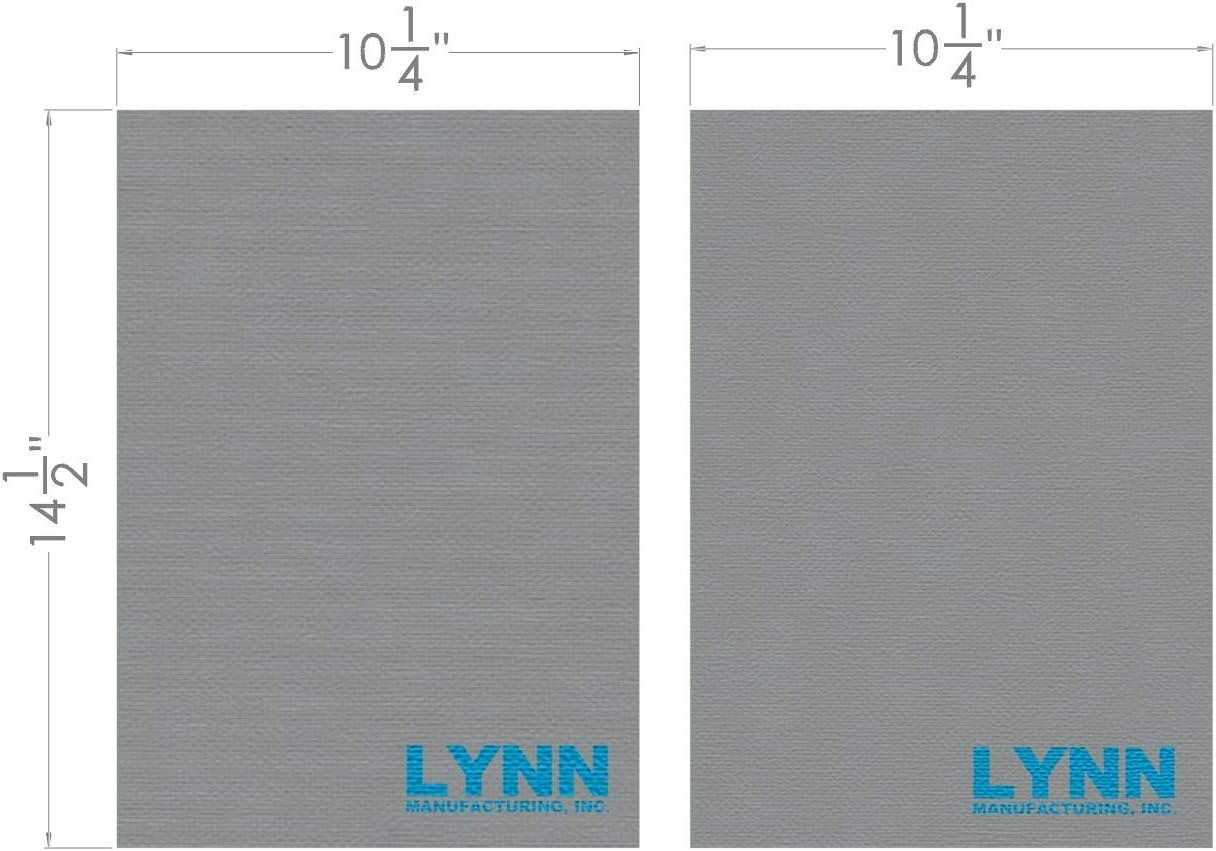

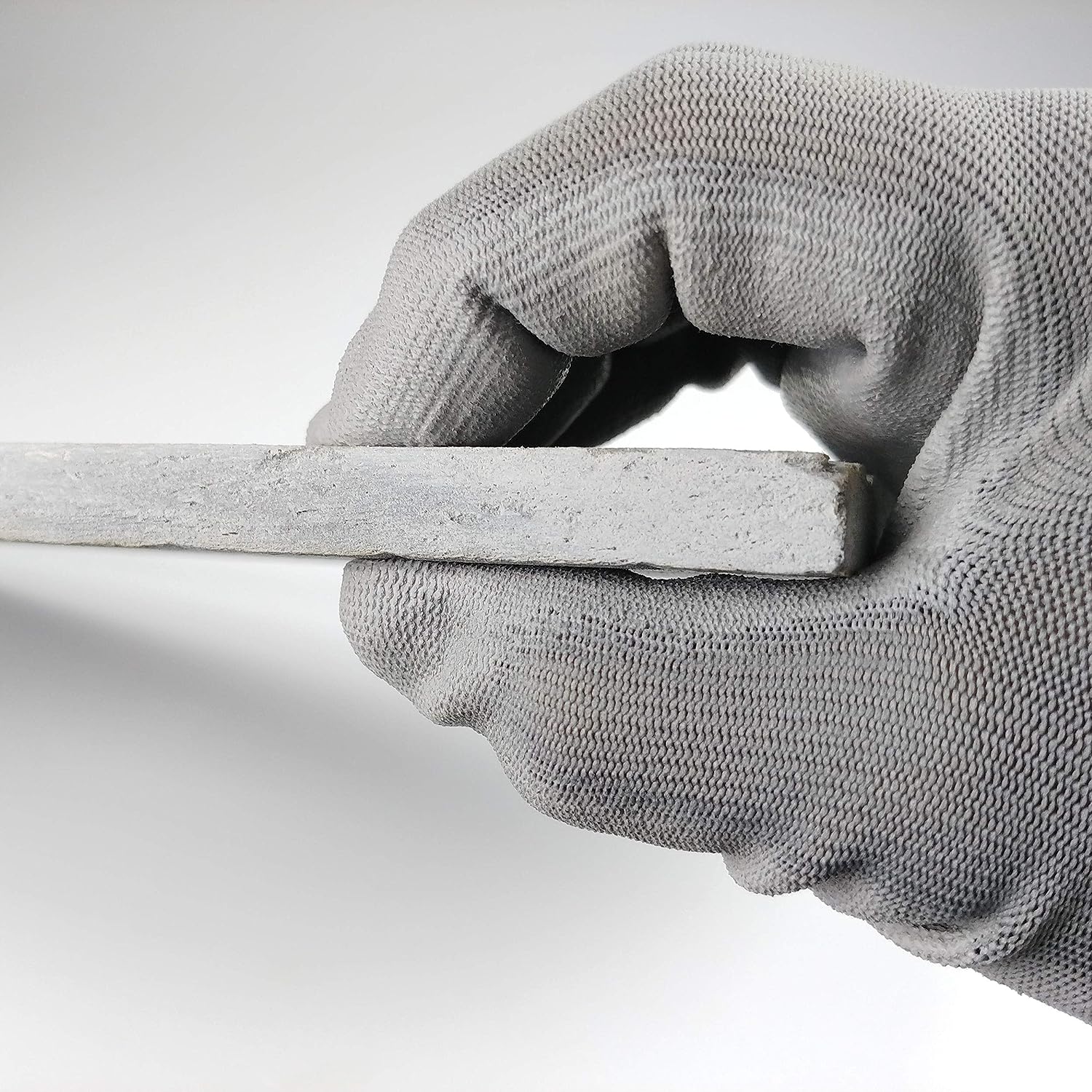

• Size (each board): Approx. 14-1/2" x 10-1/2" x 1/2"
• Quantity: Set of 2 boards
• Material: Rigidized grey Superwool Plus (ceramic fiber alternative)
• Temperature Rating: Up to 2100°F
• Weight: 3.24 lbs
• Package Dimensions: 21.5" x 12.9" x 2.3"
• Model Number: 2362A
• ASIN: B072F4TW35
• Country of Origin: USA

Important Note:
This product is made from Superwool Plus, a modern pyro-ceramic fiber alternative—not tempered glass. Pyro-ceramic materials are engineered to withstand high temperatures without cracking, making them ideal for sustained wood stove operation and safe handling during installation.

Pairs Well With: Quadra Fire Parts, insulation blanket 832-3401 (Lynn #2351E), firebrick, secondary air tubes, and combustion system components

Why Choose the Lynn Manufacturing 2362A Baffle Board Set?
Cracked or deteriorated baffles reduce heat output, disrupt secondary combustion, and increase emissions. The 2362A Superwool Plus baffle board set restores proper airflow, protects the secondary burn chamber, and helps maintain EPA-certified performance. Built for strength, safety, and precision fit, it’s a long-lasting upgrade for Quadra-Fire ACC systems.

Installation Instructions:
Allow the stove or insert to cool completely before servicing. Ensure all embers are extinguished.
Remove the surround panels or access components as required to reach the baffle area.
Carefully remove the existing baffle boards and insulation blanket if present.
Clean the baffle support ledges and inspect for debris or damage.
Install both new 2362A baffle boards in the same orientation as the originals, ensuring they sit flat and are properly supported.
Install the required insulation blanket (832-3401 / Lynn #2351E) above the baffles for complete replacement.
Reinstall all removed components and verify proper baffle placement before operating the stove.

Installation Tip:
Never operate the stove without both baffle boards and the correct insulation blanket installed. Missing or damaged baffles can lead to reduced efficiency and internal stove damage.

Restore clean combustion, reliable heat output, and long-term stove protection with the Lynn Manufacturing 2362A Quadra-Fire Baffle Board Set—engineered for durability, safety, and precision fit.
