Lynn Manufacturing Replacement Quadra-Fire Ceramic Fiber Baffle Board and Blanket, Pioneer-III, SRV4182-113, SRV4182-205, 2390C

2390C Quadra-Fire Baffle Board & Blanket Kit – Replaces SRV4182-113 & SRV4182-205 – Fits Pioneer III – Superwool Plus 2100°F – Made in USA

Restore complete baffle system performance with the Lynn Manufacturing 2390C Replacement Baffle Board and Blanket Kit. Designed as a direct replacement for Quadra-Fire parts SRV4182-113 and SRV4182-205, this kit includes both the ceramic fiber baffle board and insulation blanket required for proper operation of the Quadra-Fire Pioneer III wood stove. Constructed from advanced Superwool Plus, this high-temperature system delivers superior durability, improved efficiency, and safer performance compared to traditional materials.

Key Features:

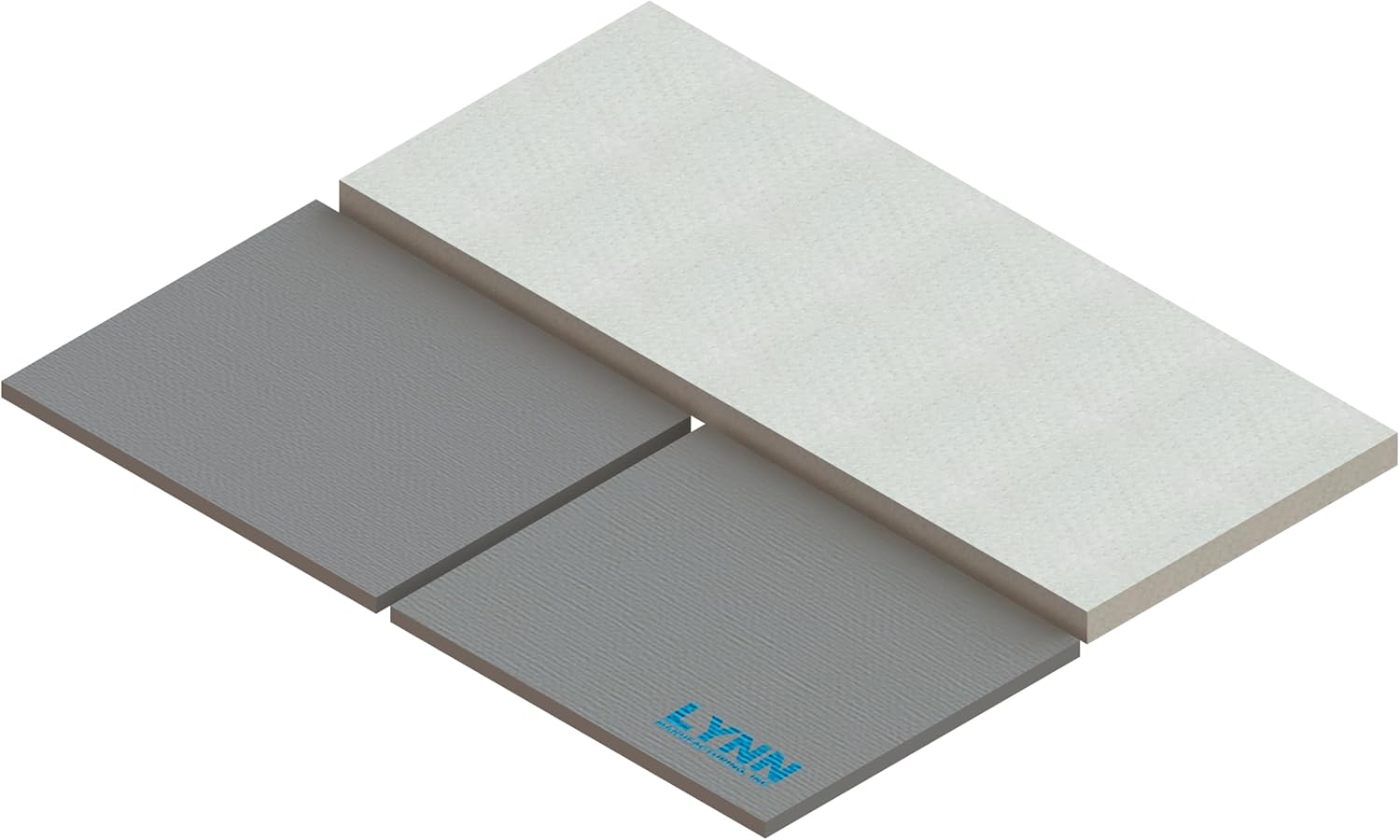

• Complete baffle system kit – includes board and insulation blanket
• Replaces Quadra-Fire SRV4182-113 and SRV4182-205
• Designed for Quadra-Fire Pioneer III wood stoves
• High-temperature rating up to 2100°F
• Superwool Plus construction – non-carcinogenic ceramic fiber alternative
• Improves combustion efficiency and heat retention
• Restores proper airflow and secondary burn performance
• Made in the USA by Lynn Manufacturing

Specifications:
• Part Number: 2390C

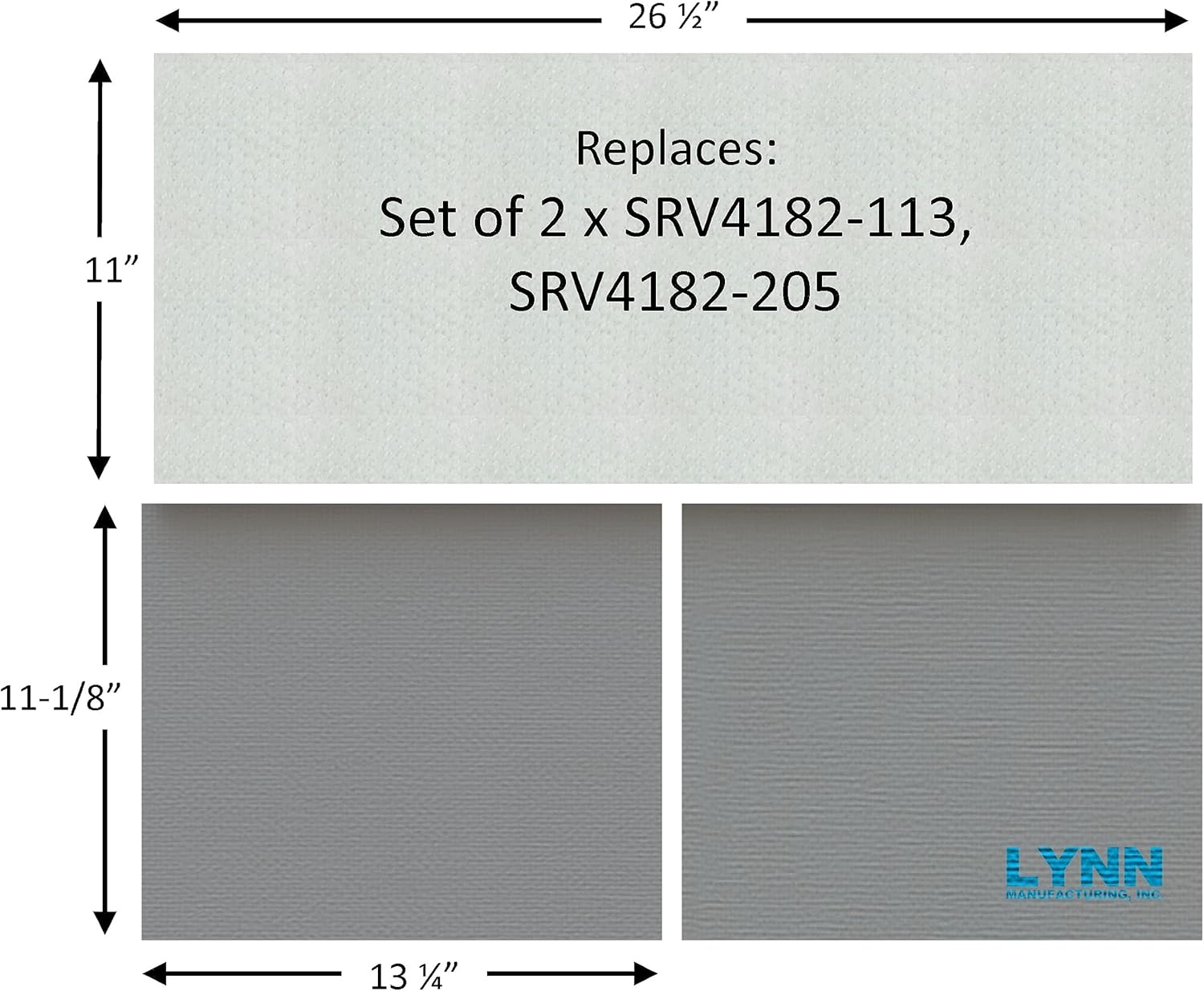

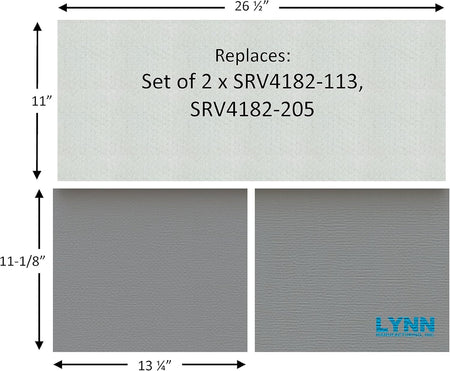

• Replaces: SRV4182-113 (baffle board), SRV4182-205 (insulation blanket)
• Product Type: Baffle Board & Insulation Blanket Kit
• Material: Superwool Plus ceramic fiber alternative
• Color: Gray board / white insulation blanket
• Temperature Rating: Up to 2100°F
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Compatible Stove Brands & Models:
• Quadra-Fire Pioneer III wood stove

Fitment Note:
This kit is designed for units using part numbers SRV4182-113 and SRV4182-205. Always verify your stove model and existing components before ordering.

Important Note:
This product is made from Superwool Plus, a next-generation pyro-ceramic insulation material designed for high-temperature stove applications. It is not tempered glass. This material is engineered to withstand direct flame exposure and continuous heat while maintaining structural integrity.

Pairs Well With:
Firebrick panels, secondary air tubes, combustion system components, and other Quadra-Fire replacement parts.

Why Choose the Lynn Manufacturing 2390C Baffle Kit?
A worn or damaged baffle board or insulation blanket can significantly reduce stove efficiency, increase emissions, and allow excessive heat loss. This complete kit restores proper airflow, improves secondary combustion, and helps maintain EPA-compliant performance—ensuring your stove burns cleaner and more efficiently.

Installation Instructions:
Allow the stove to cool completely before servicing.
Remove access panels and internal components as needed.
Carefully remove the existing baffle board and insulation blanket.
Clean and inspect support ledges and surrounding areas.
Install the new baffle board in the correct orientation.
Place the insulation blanket above the baffle board as designed.
Ensure proper fit and full coverage before reassembly.
Reinstall all components and verify secure placement.

Installation Tip:
Always replace both the baffle board and insulation blanket together for best performance. Using worn components together can reduce efficiency and shorten the lifespan of your stove.

Restore efficiency, improve combustion, and protect your stove with the Lynn Manufacturing 2390C Quadra-Fire Pioneer III Baffle Board & Blanket Kit—engineered for durability, safety, and reliable high-temperature performance.
