Lynn Manufacturing Replacement Quadra-Fire Baffle Board and Blanket Kit Explorer II, SRV7061-160, SRV7061-161, Set of 3, 2393C

2393C Quadra-Fire Baffle Board & Blanket Kit – Replaces SRV7061-160 & SRV7061-161 – Fits Explorer II – Set of 3 – Superwool Plus 2100°F – Made in USA

Restore complete combustion efficiency and protect your stove’s internal components with the Lynn Manufacturing 2393C Replacement Baffle Board and Blanket Kit. Designed as a direct replacement for Quadra-Fire parts SRV7061-160 and SRV7061-161, this complete kit includes two baffle boards and one insulation blanket for the Quadra-Fire Explorer II wood stove. Constructed from advanced Superwool Plus, this high-temperature system delivers superior durability, improved safety, and long-lasting performance.

Key Features:

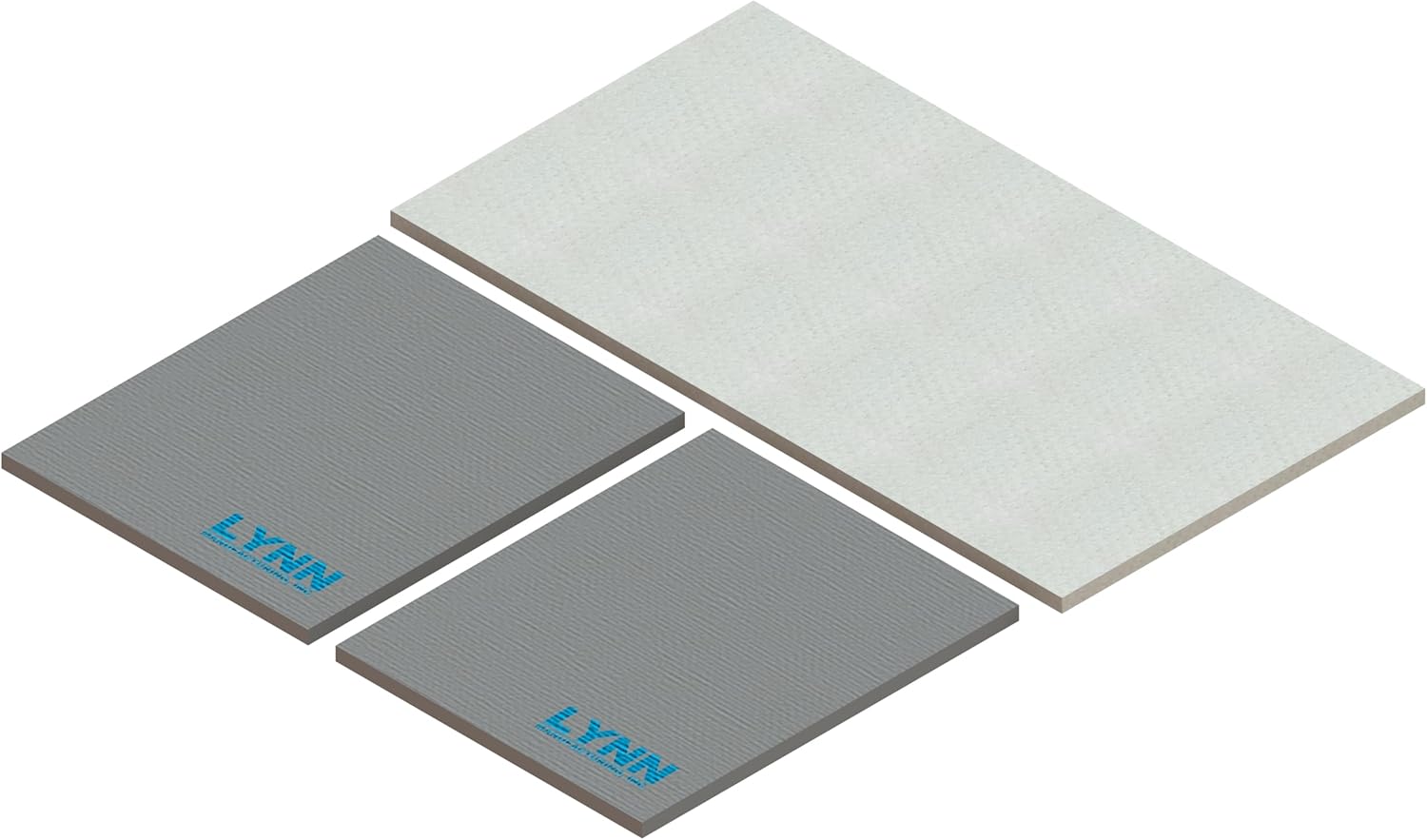

• Complete baffle system kit – includes 2 boards and 1 insulation blanket
• Replaces Quadra-Fire SRV7061-160 and SRV7061-161
• Designed for Quadra-Fire Explorer II wood stoves
• High-temperature rated up to 2100°F
• Superwool Plus construction – non-carcinogenic ceramic fiber alternative
• Restores proper airflow and secondary combustion efficiency
• Improves heat retention and overall stove performance
• Made in the USA by Lynn Manufacturing

Specifications:
• Part Number: 2393C

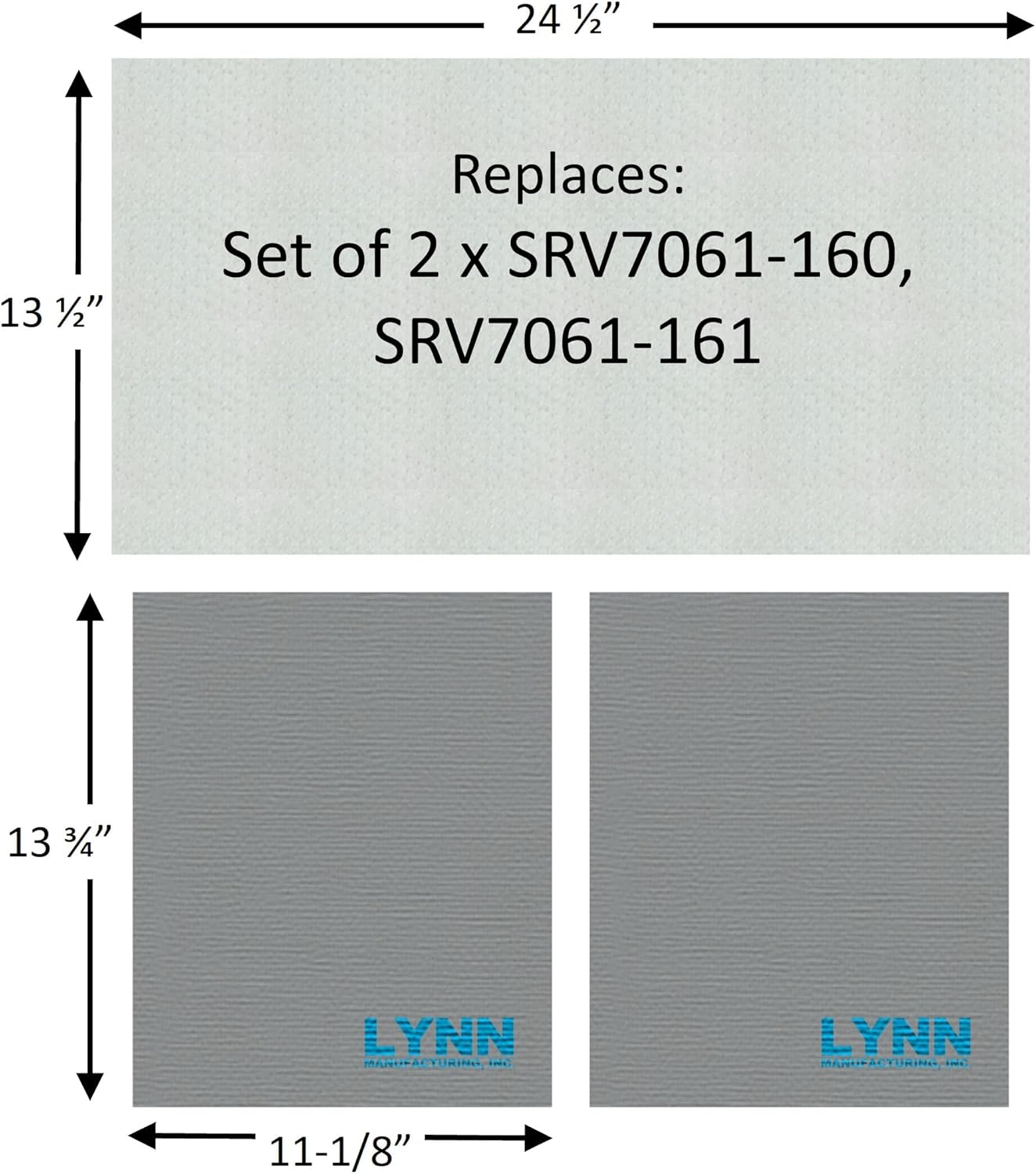

• Replaces: SRV7061-160 (baffle boards), SRV7061-161 (insulation blanket)
• Product Type: Baffle Board & Insulation Blanket Kit
• Quantity: Set of 3 (2 boards + 1 blanket)

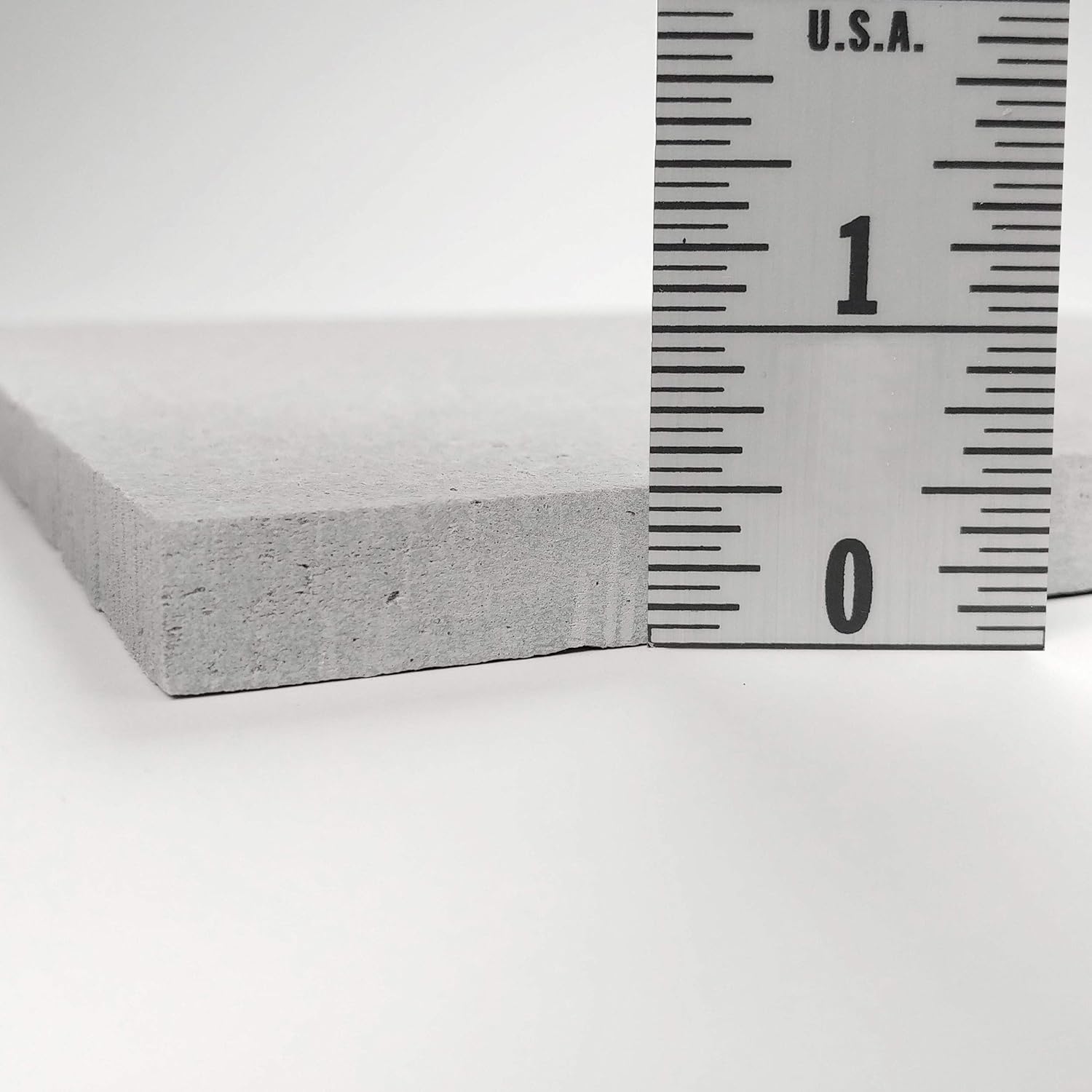

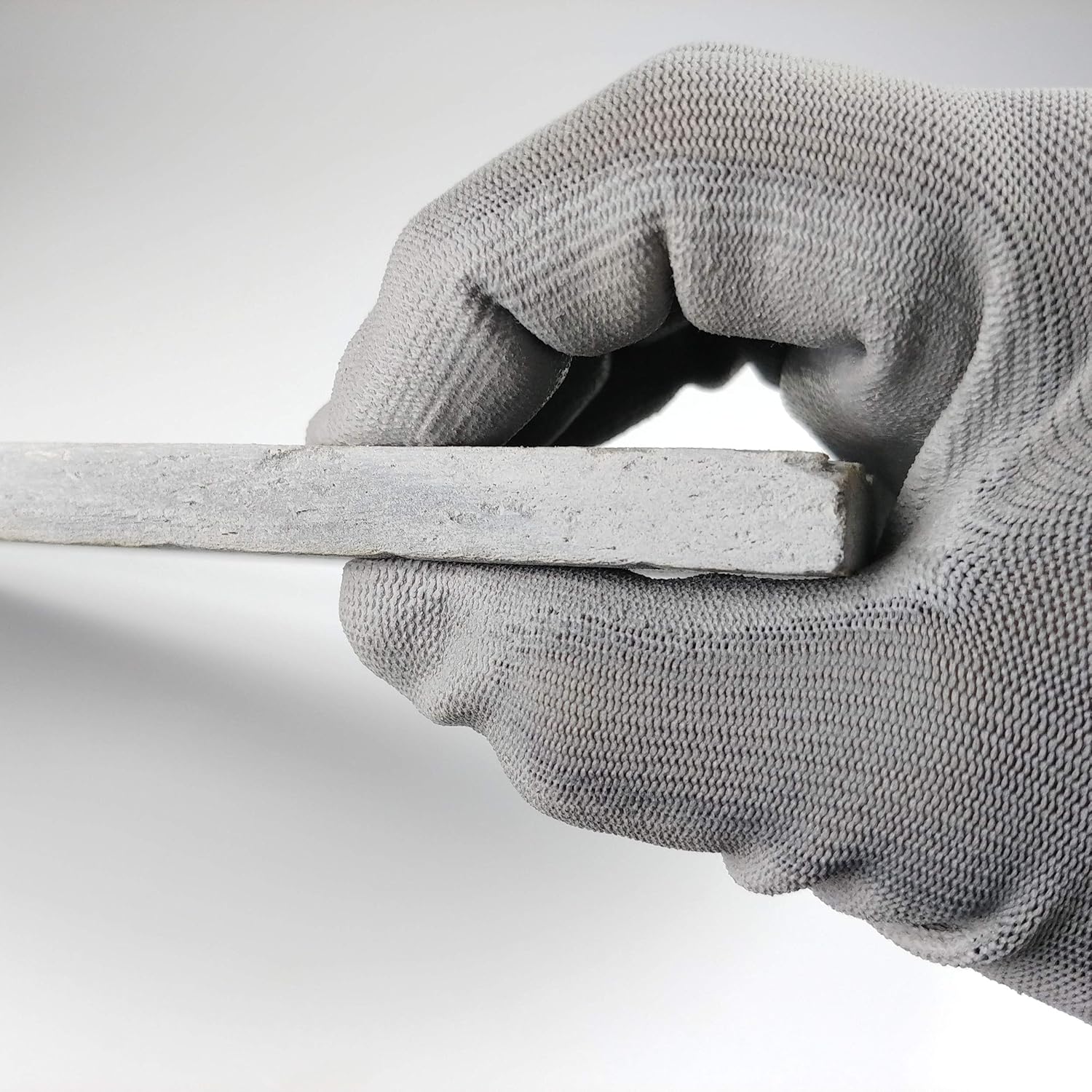

• Material: Superwool Plus ceramic fiber alternative

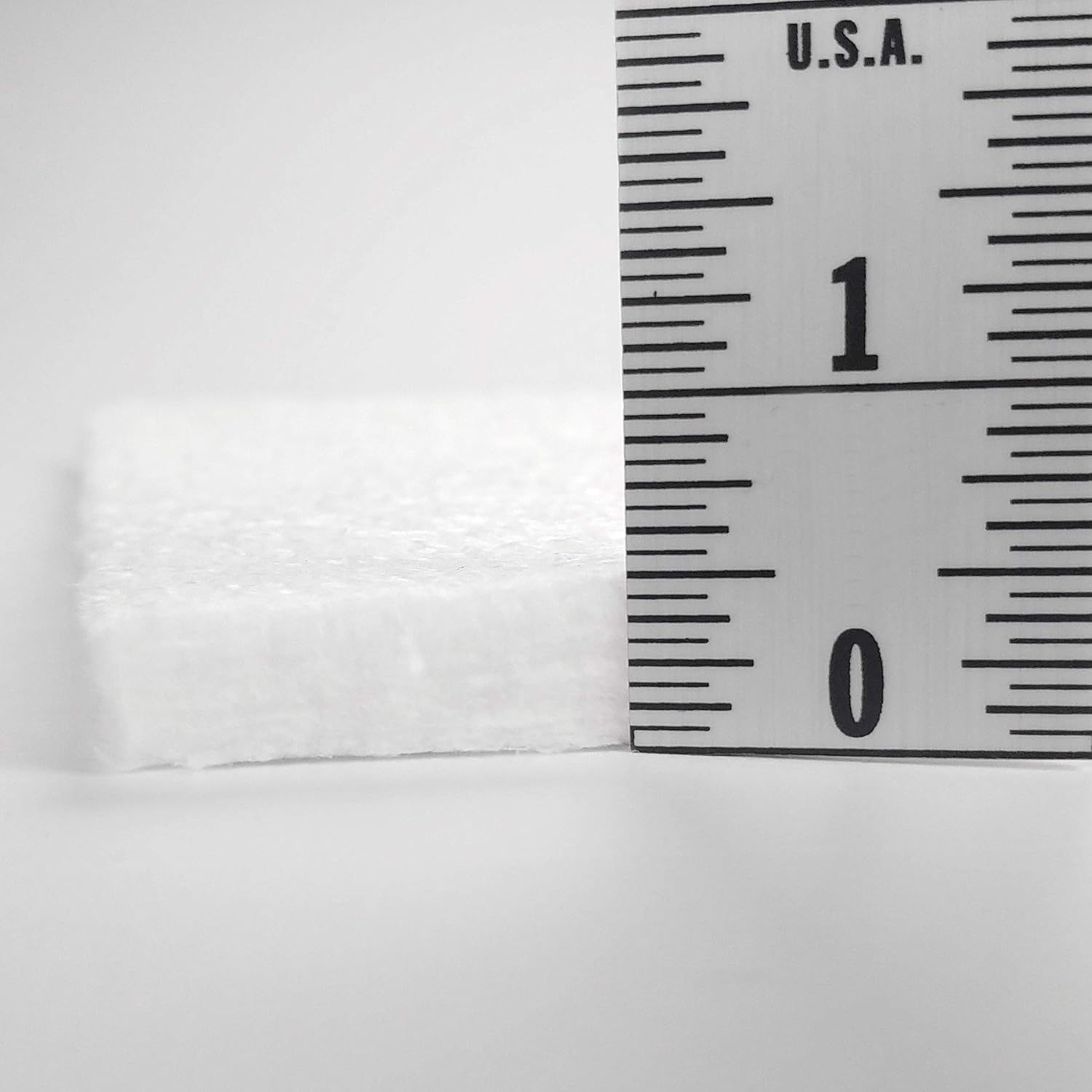

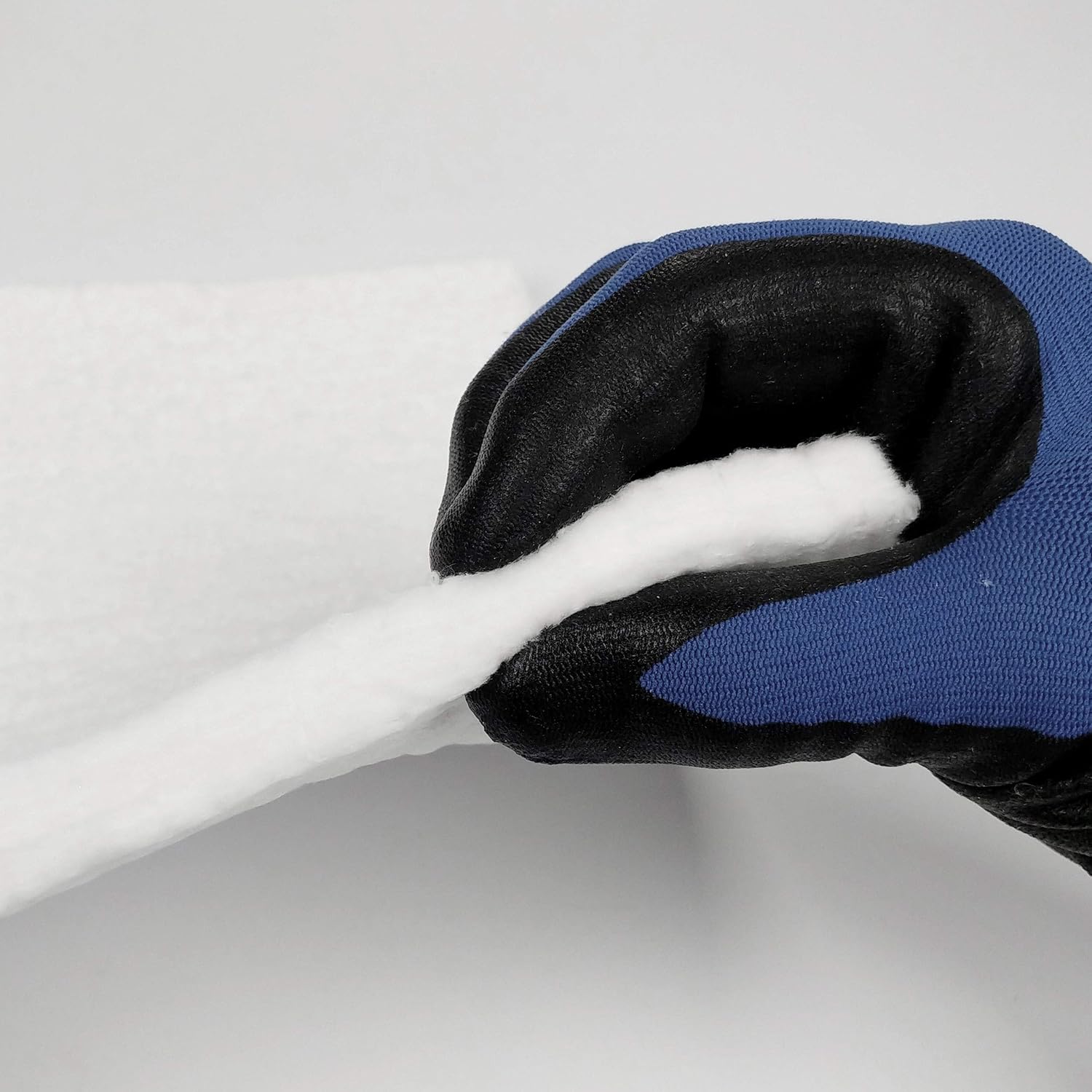

• Color: Gray boards / white insulation blanket
• Temperature Rating: Up to 2100°F
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Compatible Stove Brands & Models:
• Quadra-Fire Explorer II wood stove

Fitment Note:
This kit is designed for stoves using part numbers SRV7061-160 and SRV7061-161. Always verify your model and existing components before ordering.

Important Note:
This product is made from Superwool Plus, a next-generation pyro-ceramic insulation material designed for high-temperature applications. It is not tempered glass. This material is engineered to withstand direct flame exposure and continuous heat while maintaining structural integrity.

Pairs Well With:
Firebrick panels, secondary air tubes, combustion components, and other Quadra-Fire replacement parts.

Why Choose the Lynn Manufacturing 2393C Baffle Kit?
A worn or damaged baffle system can lead to reduced efficiency, poor combustion, and excessive heat loss. This complete replacement kit restores proper airflow, improves secondary burn performance, and helps maintain EPA-compliant operation. Replacing both the baffle boards and insulation blanket together ensures optimal stove performance and longevity.

Installation Instructions:
Allow the stove to cool completely before servicing.
Remove access panels and internal components as needed.
Carefully remove the existing baffle boards and insulation blanket.
Clean and inspect the support ledges and surrounding areas.
Install the new baffle boards in the correct orientation.
Place the insulation blanket above the boards as designed.
Ensure proper fit and full coverage.
Reassemble components and verify secure placement.

Installation Tip:
Always replace the full baffle system together. Mixing old and new components can reduce efficiency and shorten the lifespan of your stove.

Restore efficiency, improve combustion, and protect your stove with the Lynn Manufacturing 2393C Quadra-Fire Explorer II Baffle Board & Blanket Kit—engineered for durability, safety, and reliable high-temperature performance.
