Baffle Board & Blanket Kit – 2388C | Replaces SRV4184-113 & SRV4184-205 | Fits Quadra-Fire Pioneer II-C, Majestic WarmMajic II, Heat & Glo Northstar-C, Heatilator Constitution C40-C

Baffle Board & Blanket Kit – 2388C | Replaces SRV4184-113 & SRV4184-205 | Fits Quadra-Fire Pioneer II-C, Majestic WarmMajic II, Heat & Glo Northstar-C, Heatilator Constitution C40-C | Superwool Plus | 2100°F Heat Rating | Made in USA

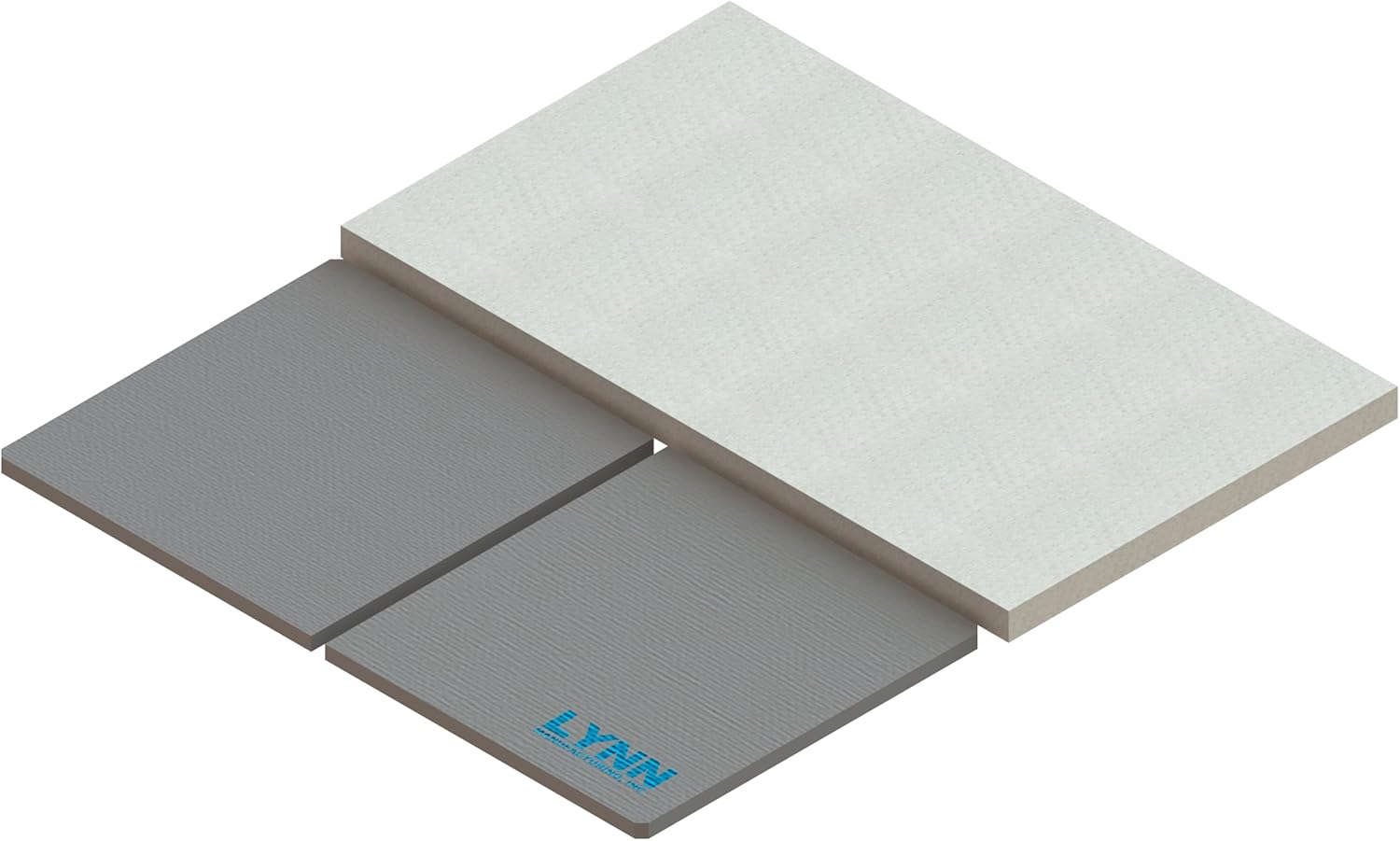

Maximize efficiency and maintain EPA compliance in your wood-burning fireplace or insert with the Lynn Manufacturing 2388C Replacement Baffle and Blanket Kit. This complete replacement set includes two baffle boards and one insulation blanket, all constructed from Superwool Plus — a high-performance, non-carcinogenic ceramic fiber alternative that provides exceptional heat resistance and durability without health hazard warnings.

Key Features:
• Replaces OEM Parts: SRV4184-113 (2-piece baffle board) and SRV4184-205 (blanket).
• High-Temperature Resistant: Rated for continuous operation up to 2100°F (1148°C).
• Safe Ceramic Fiber Alternative: Made with Superwool Plus — no GHS health hazard label.
• Strong & Durable: Rigidized board resists cracking; flexible blanket conforms easily for a snug fit.
• Made in the USA: Precision manufactured by Lynn Manufacturing for reliable quality.
• Complete Kit: Includes all components needed for easy replacement during maintenance.

Specifications:
• Product Name: Replacement Baffle Board & Blanket Kit
• Part Number: 2388C
• Replaces: SRV4184-113 (boards), SRV4184-205 (blanket)
• Compatibility:
  • Quadra-Fire Pioneer II-C
  • Majestic WarmMajic II
  • Heat & Glo Northstar-C
  • Heatilator Constitution C40-C

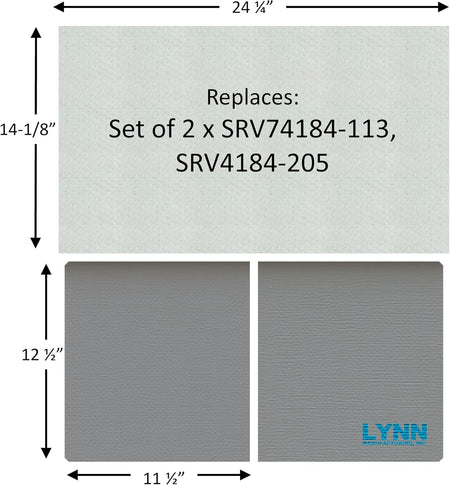

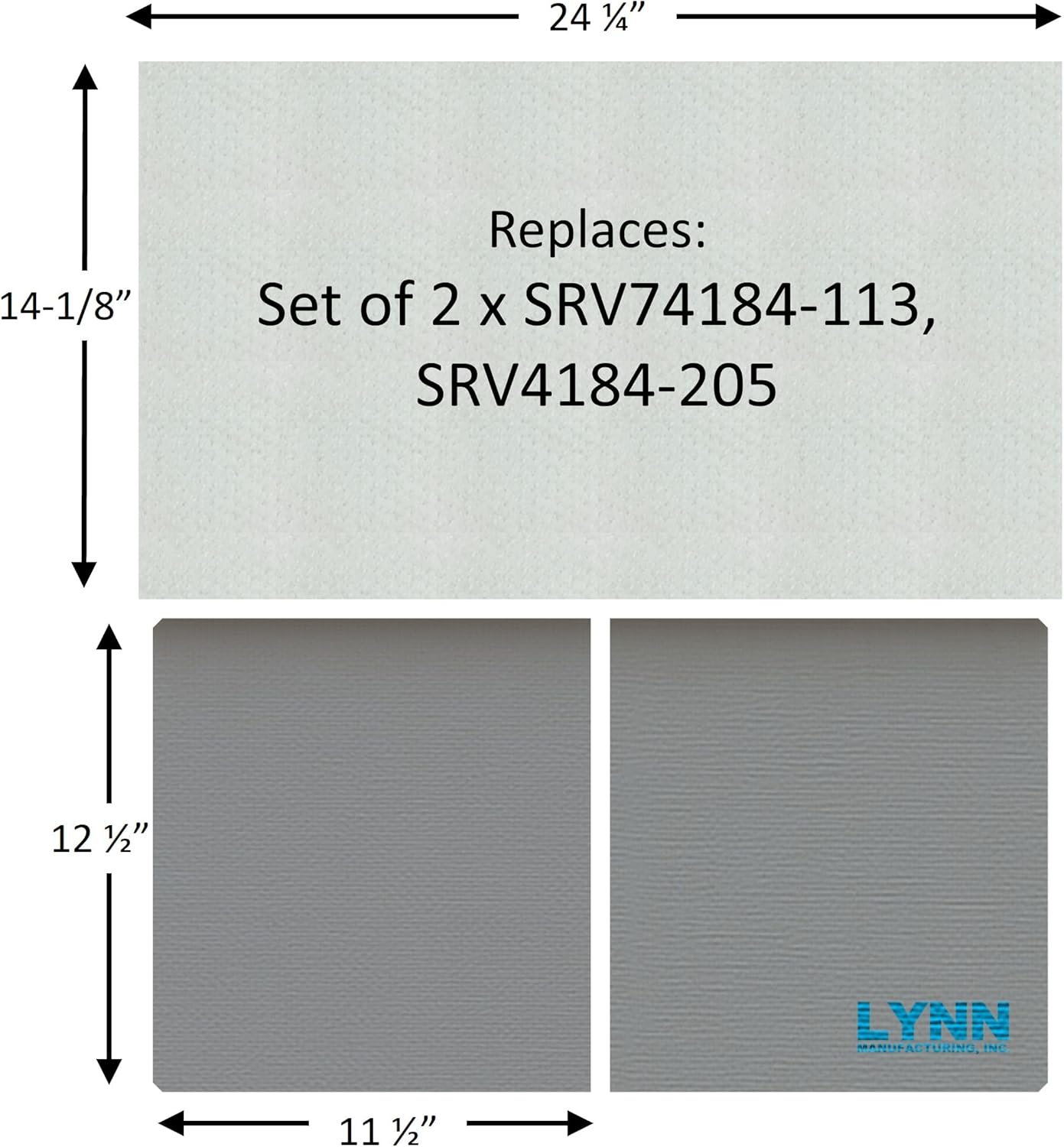

• Baffle Board Size (each): 12-1/2" x 11-1/2" x 1/2"
• Blanket Size: 24-1/4" x 14-1/8" x 1"
• Materials:

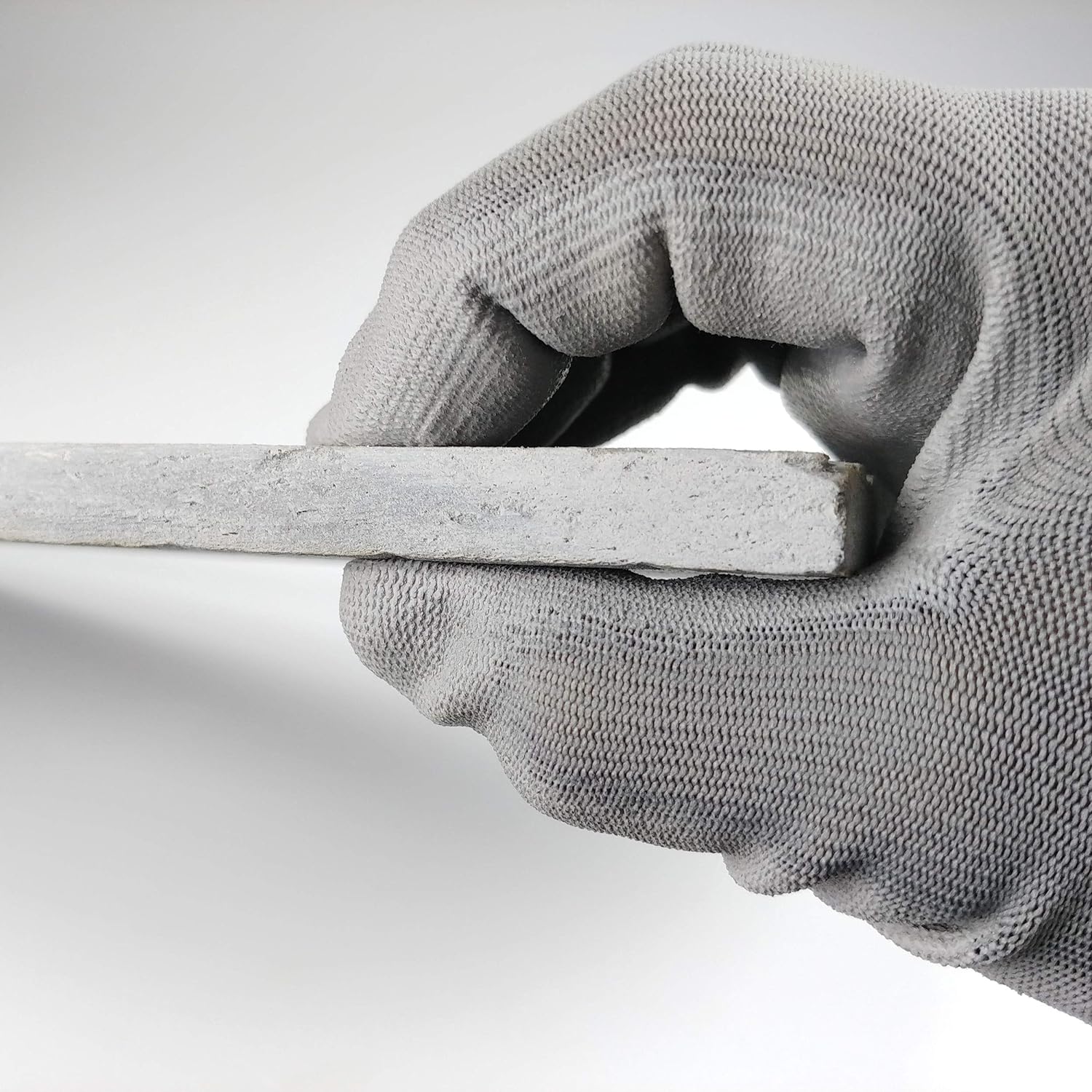

  • Boards – Rigidized grey Superwool Plus (ceramic fiber alternative, rated 2100°F)
  • Blanket – Soft, flexible Superwool Plus insulation (rated 2100°F)
• Comparable To: Superwool Plus, SuperMag, Insulfrax
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Why Choose the Lynn 2388C Kit?
Baffles and blankets are essential for clean, efficient wood combustion. The Lynn 2388C Kit restores proper airflow, insulation, and secondary combustion performance — improving heating efficiency while helping your fireplace or insert stay EPA compliant. Constructed with safe, long-lasting Superwool Plus materials, it’s the ideal replacement or upgrade for continued reliable performance.

Why Choose the Lynn Manufacturing 2388C Kit?
Worn or damaged baffles and insulation blankets can reduce efficiency, disrupt airflow, and increase emissions. The Lynn 2388C Baffle Board & Blanket Kit restores proper insulation and secondary combustion performance, helping your appliance burn cleaner, hotter, and more efficiently while maintaining EPA compliance.

Installation Instructions:
Allow the fireplace or insert to cool completely before servicing. Ensure all embers are extinguished.
Remove the access panels or internal components required to reach the baffle area.
Carefully remove the old baffle boards and insulation blanket.
Clean the baffle support ledges and inspect for damage or debris.
Install both new baffle boards in the same orientation as the originals, ensuring they sit flat and fully supported.
Position the new insulation blanket above the baffle boards, covering them evenly without gaps.
Reinstall all removed components and confirm the baffle system is secure before operation.

Installation Tip:
Never operate the appliance without properly installed baffle boards and insulation blanket. Missing or damaged components can reduce efficiency, increase emissions, and cause internal heat damage.

Maintain peak efficiency and reliable performance with the Lynn Manufacturing 2388C Baffle Board & Blanket Kit—engineered for durability, safety, and long-term heat performance.
