Lynn Manufacturing Replacement Hearthstone Baffle Board Kit, Heritage IV 8024, 90-76240, 2440C

2440C Hearthstone Heritage IV Baffle Board & Blanket Kit – Replaces 90-76240 – Fits Heritage IV 8024 – Superwool Plus 2100°F – Made in USA

Restore complete combustion efficiency and protect your stove’s internal components with the Lynn Manufacturing 2440C Replacement Baffle Board and Blanket Kit. Designed as a direct replacement for Hearthstone part 90-76240, this complete kit is engineered specifically for the Hearthstone Heritage IV 8024 wood stove. Manufactured from advanced Superwool Plus, this high-temperature ceramic fiber alternative delivers exceptional durability, superior heat resistance, and safer performance compared to traditional ceramic fiber materials.

Key Features:
• Direct replacement for Hearthstone 90-76240
• Designed for Hearthstone Heritage IV 8024 wood stoves

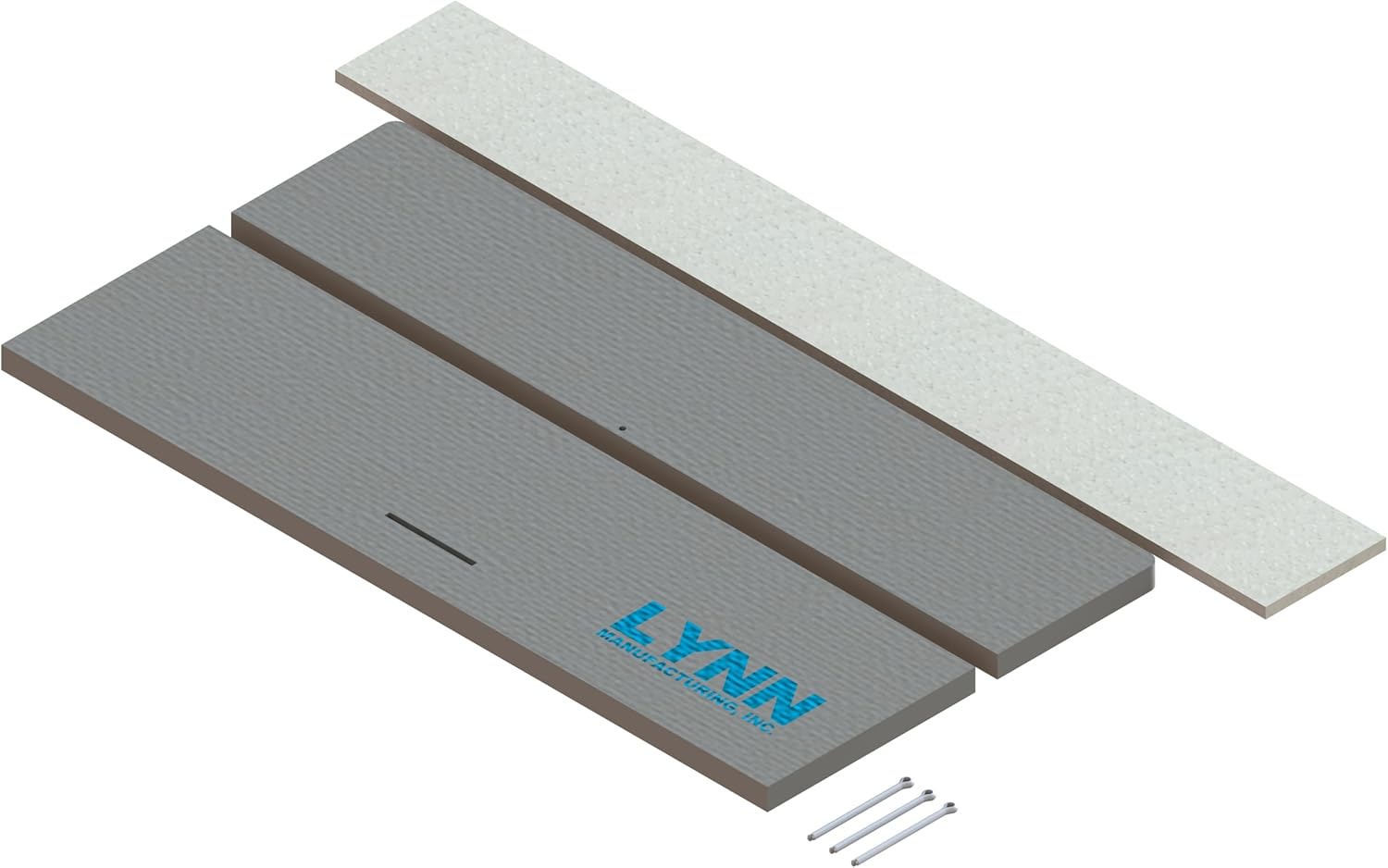

• Complete baffle board and insulation blanket kit
• High-temperature rated up to 2100°F
• Superwool Plus construction – non-carcinogenic ceramic fiber alternative
• Restores proper airflow and secondary combustion efficiency
• Improves heat retention and overall stove performance
• Made in the USA by Lynn Manufacturing

Specifications:

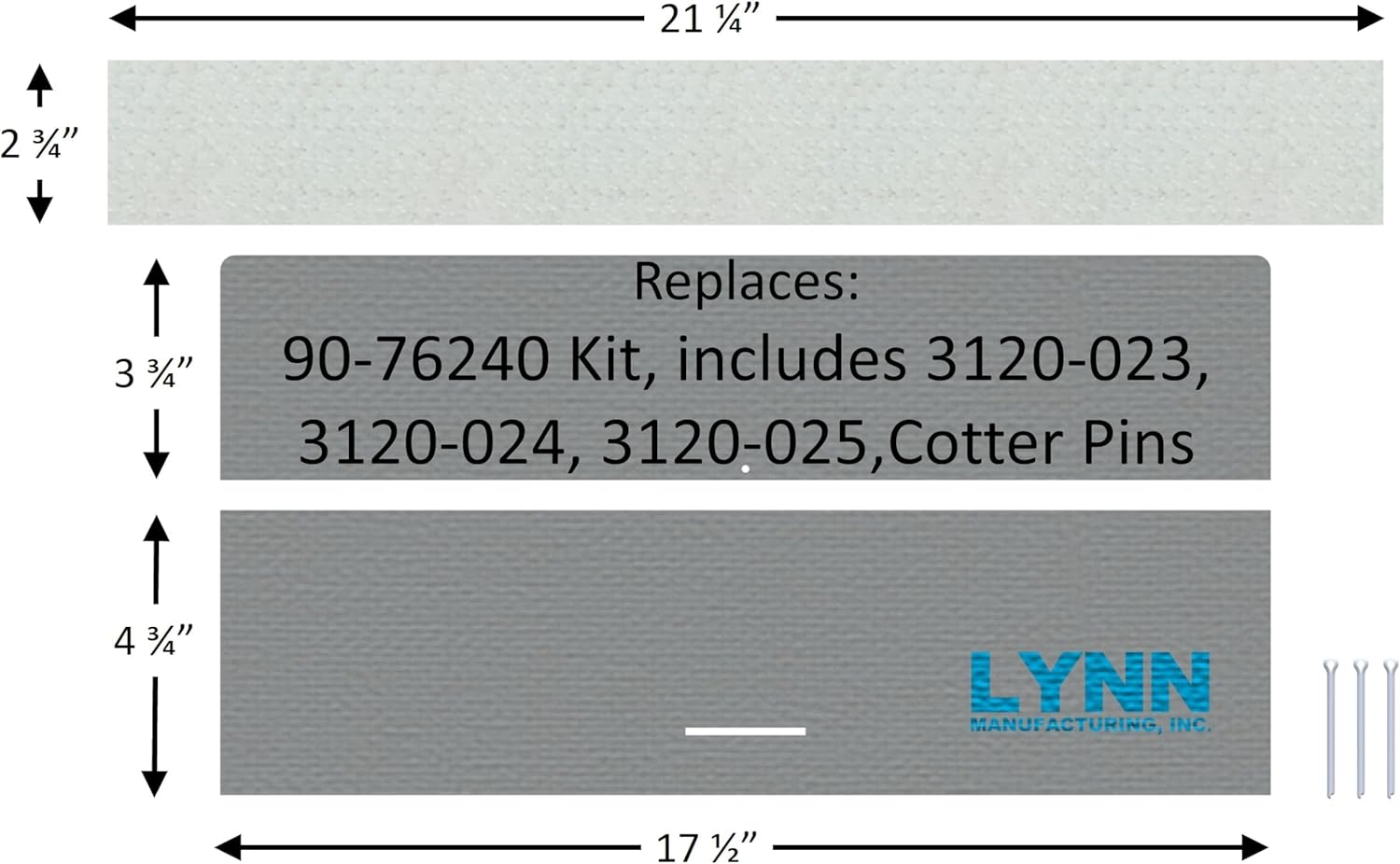

• Part Number: 2440C
• Replaces: 90-76240
• Product Type: Baffle Board & Blanket Kit
• Material: Superwool Plus ceramic fiber alternative
• Color: Gray baffle board / white insulation blanket
• Temperature Rating: Up to 2100°F
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Compatible Stove Brands & Models:
• Hearthstone Heritage IV 8024

Fitment Note:
This kit is designed for units using part number 90-76240. Always verify your stove model and existing baffle configuration before ordering.

Important Note:
This product is made from Superwool Plus, a next-generation pyro-ceramic insulation material designed for high-temperature stove applications. It is not tempered glass. This material is engineered to withstand direct flame exposure and continuous high heat while maintaining structural integrity.

Pairs Well With:
Hearthstone firebrick panels, secondary air tubes, door gasket kits, and combustion system components.

Why Choose the Lynn Manufacturing 2440C Baffle Kit?
A worn or damaged baffle system can reduce stove efficiency, increase emissions, and allow excessive heat loss. Replacing your complete baffle system with the 2440C kit restores proper airflow, improves secondary combustion, and helps maintain clean-burning, high-efficiency stove operation while protecting internal components.

Installation Instructions:
Allow the stove to cool completely before servicing.
Remove internal components as needed to access the baffle area.
Carefully remove the old baffle board and insulation blanket.
Clean and inspect support ledges and surrounding areas.
Install the new baffle board in the proper orientation.
Place the insulation blanket above the board as designed.
Ensure full coverage and proper fitment.
Reassemble components and verify secure placement before operation.

Installation Tip:
Always replace the insulation blanket together with the baffle board for maximum efficiency and longer stove life. Mixing worn and new components can reduce performance.

Restore efficiency, improve combustion, and extend the life of your stove with the Lynn Manufacturing 2440C Hearthstone Heritage IV Baffle Board & Blanket Kit—engineered for durability, safety, and dependable high-temperature performance.
