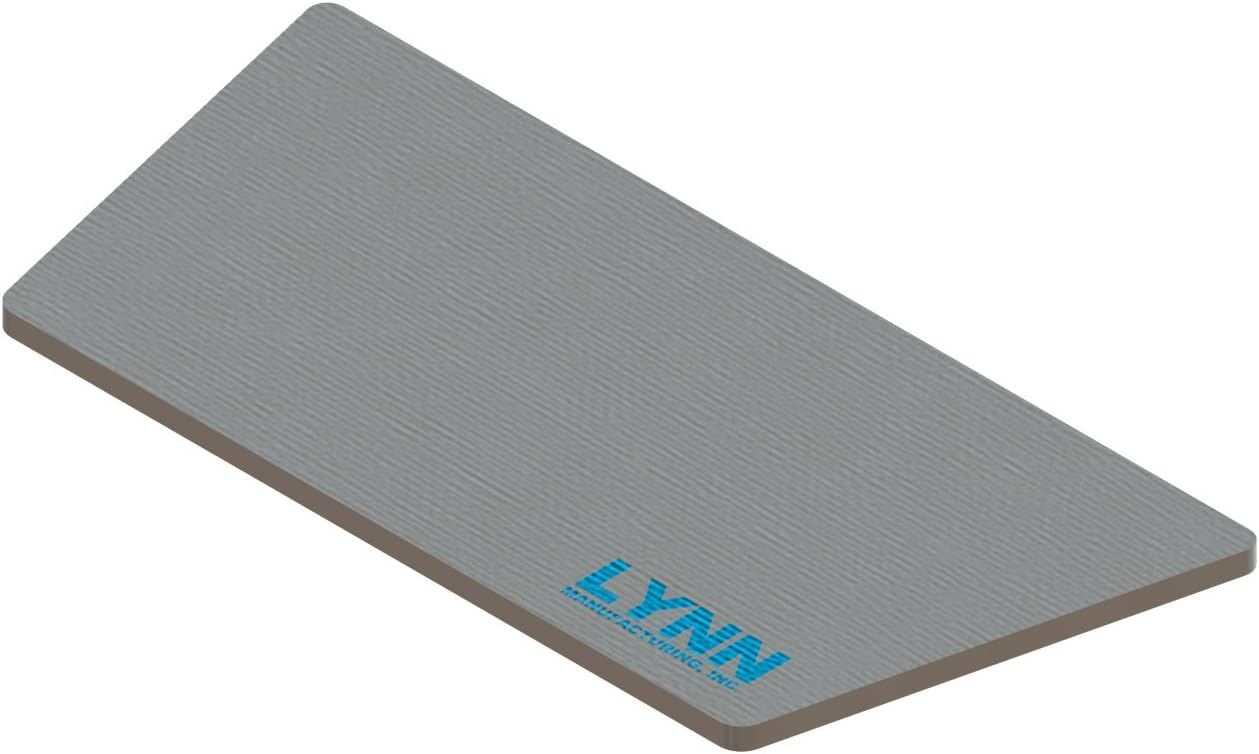

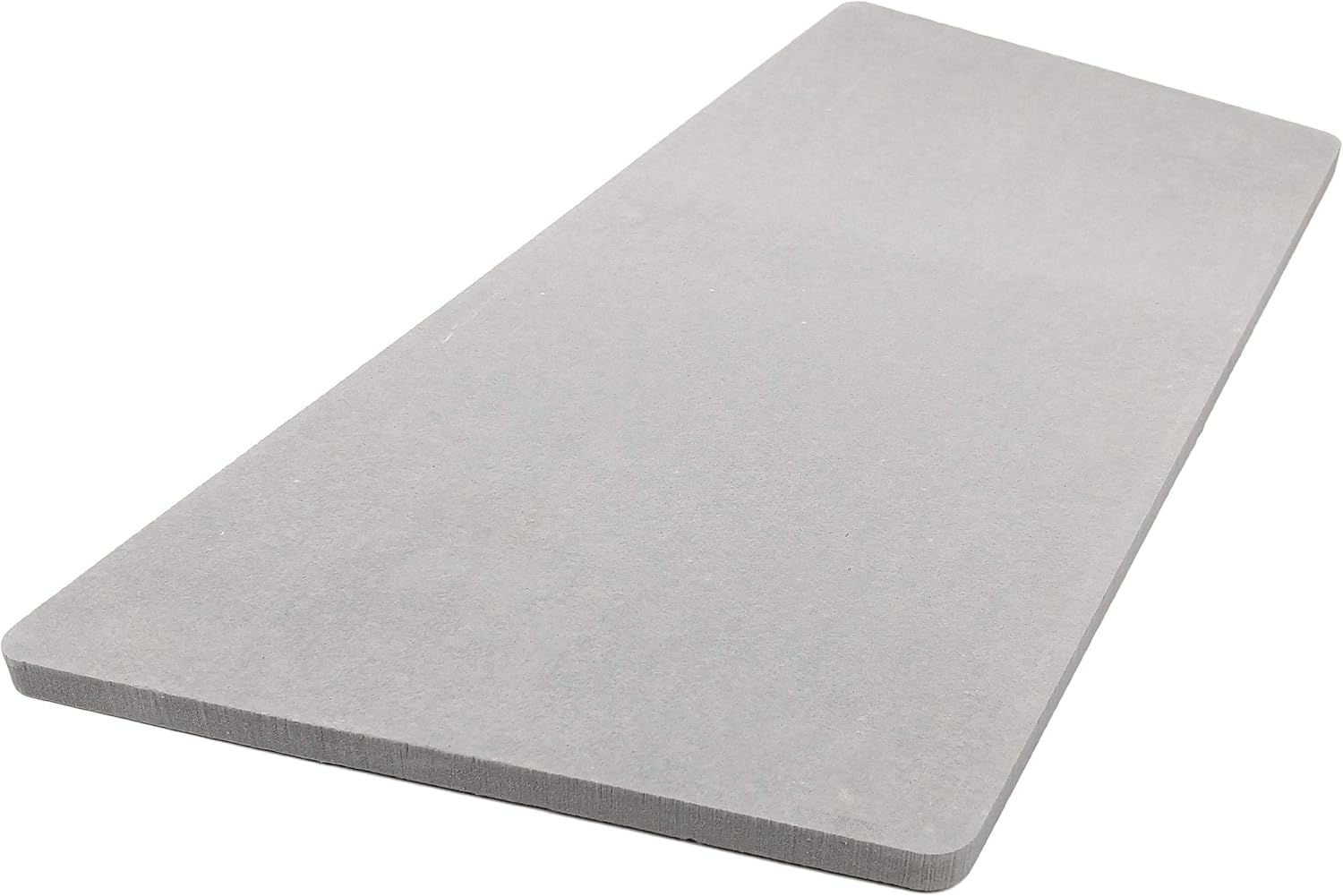

Lynn Manufacturing Replacement Hearthstone Baffle Board, Clydesdale 8491, 3120-490, 2434A

2434A Hearthstone Clydesdale Baffle Board – Replaces 3120-490 – Fits Clydesdale 8491 – Superwool Plus 2100°F – Made in USA

Restore efficient combustion and protect your insert’s internal components with the Lynn Manufacturing 2434A Replacement Baffle Board. Designed as a direct replacement for Hearthstone part 3120-490, this high-performance baffle board is engineered specifically for the Hearthstone Clydesdale 8491 wood insert. Constructed from durable Superwool Plus, this advanced ceramic fiber alternative provides superior heat resistance, long service life, and improved safety in high-temperature environments.

Key Features:
• Direct replacement for Hearthstone 3120-490
• Designed for Hearthstone Clydesdale 8491 wood insert
• High-temperature rated up to 2100°F
• Superwool Plus construction – non-carcinogenic ceramic fiber alternative
• Rigidized gray finish for enhanced durability and structural integrity
• Helps maintain proper airflow and secondary combustion efficiency
• Made in the USA by Lynn Manufacturing

Specifications:
• Part Number: 2434A
• Replaces: 3120-490
• Product Type: Fiber Baffle Board
• Dimensions: Approx. 20-1/2" x 12" x 1/2"
• Material: Superwool Plus ceramic fiber alternative
• Color: Rigidized gray
• Temperature Rating: Up to 2100°F
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Compatible Stove Brands & Models:
• Hearthstone Clydesdale 8491 wood insert

Fitment Note:
This replacement is designed for units using part number 3120-490. Always verify your insert model and existing part before ordering.

Important Note:
This product is made from Superwool Plus, a next-generation pyro-ceramic insulation material designed for high-temperature stove applications. It is not tempered glass. This material is engineered to withstand direct flame exposure and prolonged heat without cracking under thermal stress.

Pairs Well With:
Hearthstone insulation blankets, firebrick panels, secondary air tubes, and combustion system components.

Why Choose the Lynn Manufacturing 2434A Baffle Board?
A worn or damaged baffle can reduce heat output, disrupt airflow, and increase emissions. Replacing your baffle with the 2434A restores proper combustion, improves heat retention, and helps maintain efficient, clean-burning operation while protecting your insert’s internal components.

Installation Instructions:
Allow the insert to cool completely before servicing.
Remove access panels and internal components as needed.
Carefully remove the existing baffle board.
Clean and inspect support ledges.
Install the new 2434A board in the correct orientation.
Ensure it sits flat and is fully supported.
Reassemble components and verify proper placement before operation.

Installation Tip:
Never operate your insert without a properly installed baffle board. Doing so can reduce efficiency and damage internal components.

Restore efficiency, improve combustion, and extend the life of your insert with the Lynn Manufacturing 2434A Hearthstone Clydesdale Baffle Board—engineered for durability, safety, and reliable high-temperature performance.
