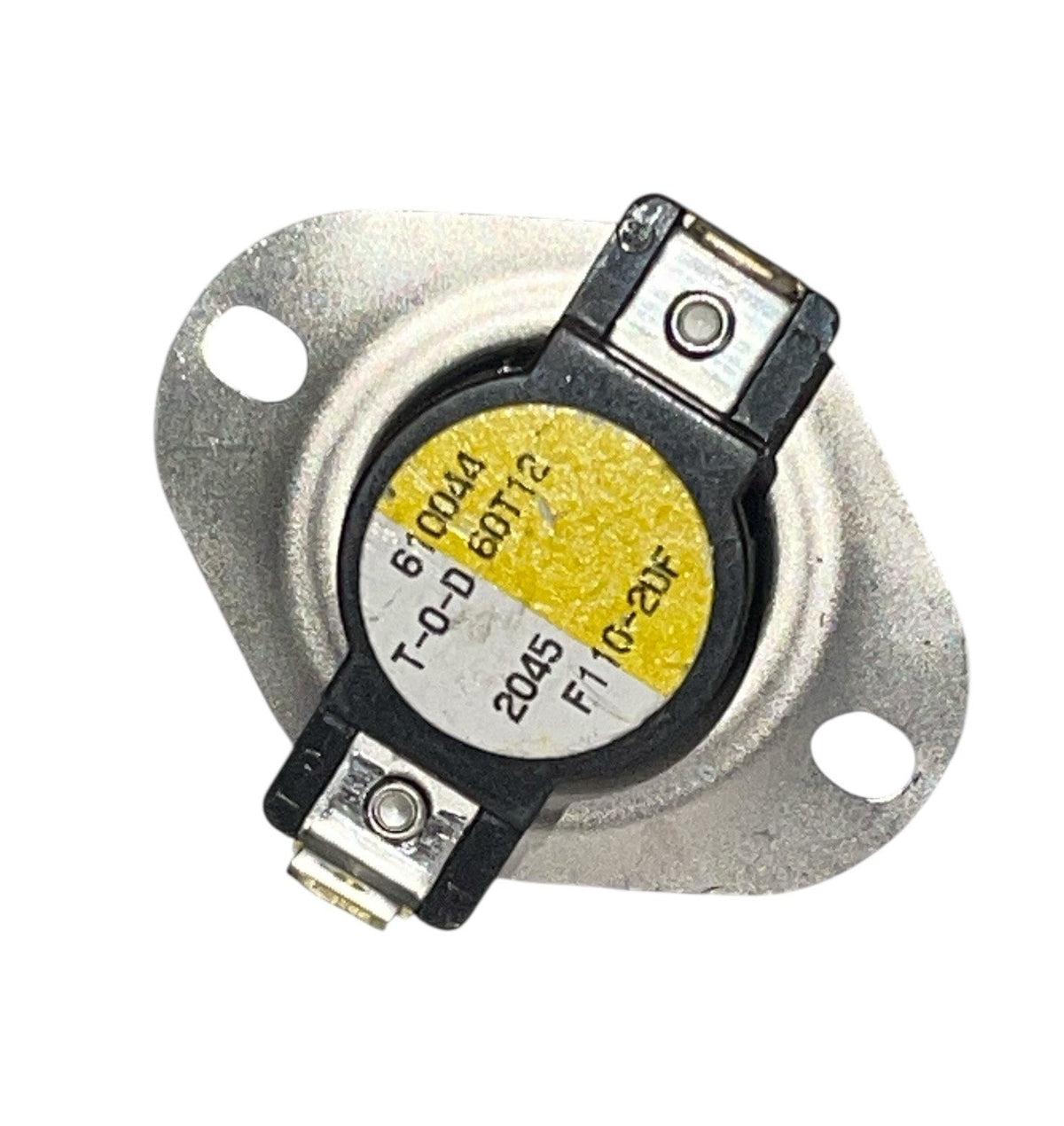

Thermodisc Switch – 110°F High-Speed Fan Limit Control (TDF110-20F / 80389) for Jensen & US Stove Furnaces
Control your distribution fan with precision using this high-speed Thermodisc switch (TDF110-20F / 80389). Designed to energize the fan when the firebox temperature reaches 110°F, this snap-disc switch ensures that your distribution blower only operates when your furnace is aggressively fired—cutting off at 130°F for added safety. Commonly used in Jensen and US Stove wood furnaces, this component plays a vital role in maintaining optimal heating and airflow.

Key Features:
• High-Speed Blower Activation – Triggers distribution fan at 110°F for rapid air movement
• Open on Rise – Cuts off power when temperatures exceed 130°F (20°F differential)
• Efficient Heat Distribution – Supports up to 1300 CFM airflow during high-demand heating
• OEM-Quality Construction – Designed to match the specifications of your original switch

Specifications:
• Part Numbers: 80389, TDF110-20F, 60T11-610044
• Function: High-speed fan limit control
• Close (Cut-In) Temperature: 110°F
• Open (Cut-Out) Temperature: 130°F
• Differential: 20°F
• Contact Type: SPST, Normally Closed – Open on Rise
• Application: Distribution blower fan controller
• Terminals: Male spade connectors
• OEM Status: Genuine US Stove replacement part

Compatible Models:
Jensen Wood Furnaces: 24AF, 24AG, 24AZ
US Stove Models: Including 24A and compatible Jensen units

Pairs well with: US Stove Company Parts

This 110°F high-speed snap-disc is critical for safe and efficient operation of your furnace’s distribution fan. It ensures that your blower activates only when needed, enhancing comfort and protecting your stove from overheating.
