IntelliFire Touch 6-Pin Wire Harness - 2326-132 / SRV2326-132

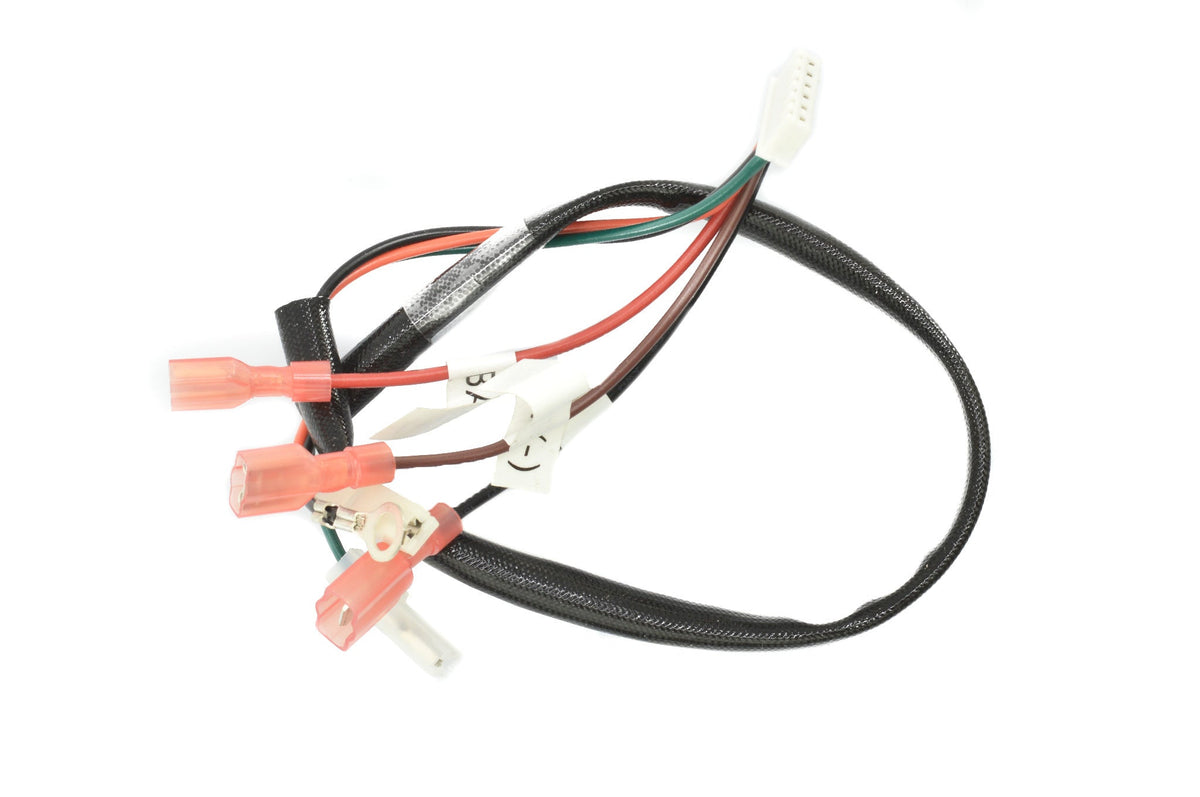

Restore the original low-voltage connections in a compatible IntelliFire Touch fireplace with this 2326-132 six-pin wiring harness. The assembly links the matching control-module connector with the valve, battery and appliance-switch circuits. Its pre-terminated branches include labeled battery and wall-switch leads, valve connectors and a ring-terminal ground.
Key Features

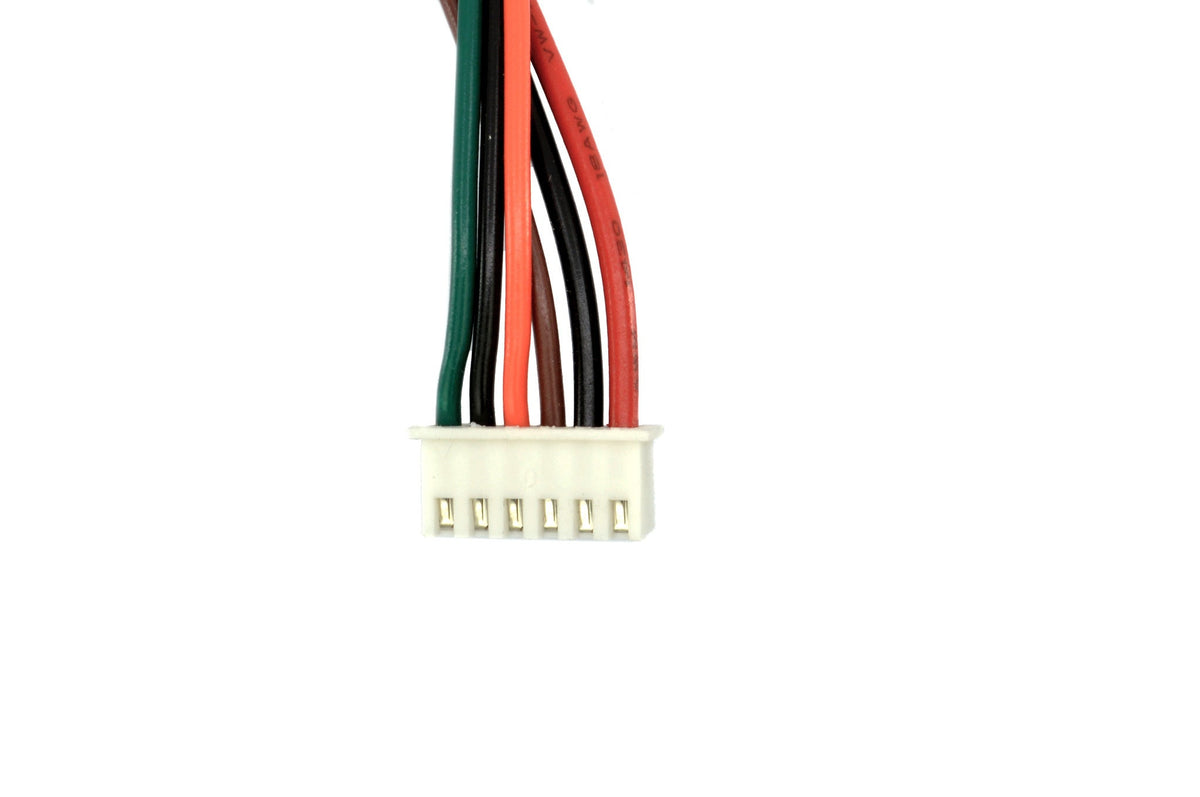

- Six-position plug for the specified IntelliFire Touch control connection.

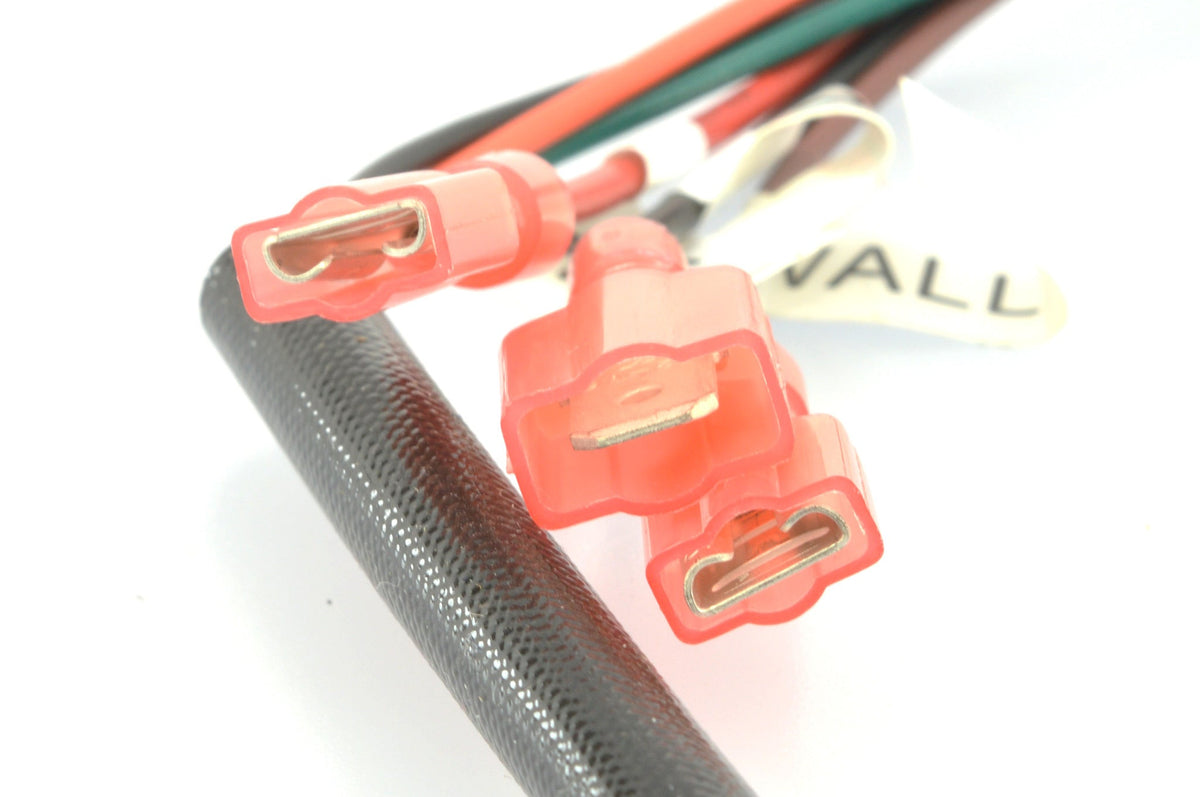

- Pre-terminated wiring branches for the matching appliance circuits.

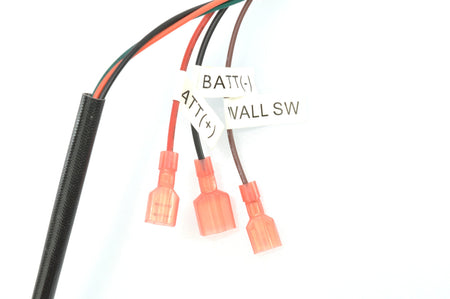

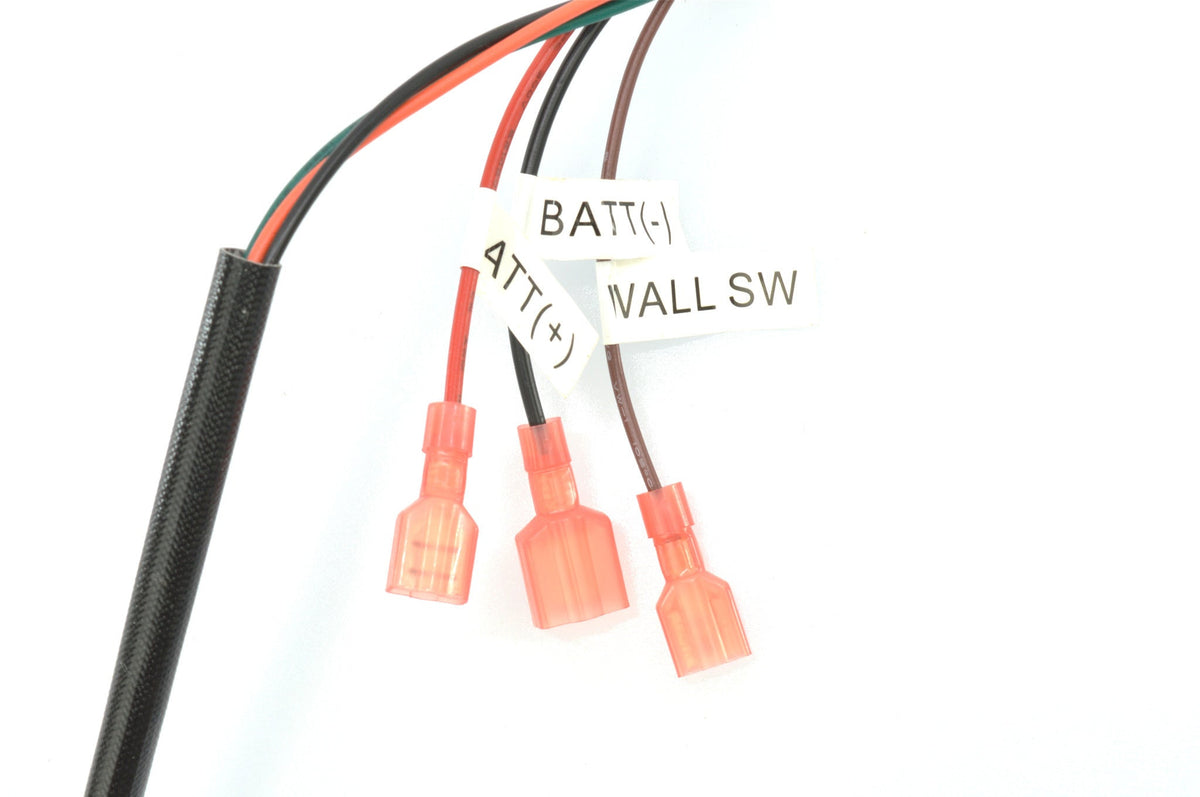

- Battery and wall-switch leads labeled for identification.

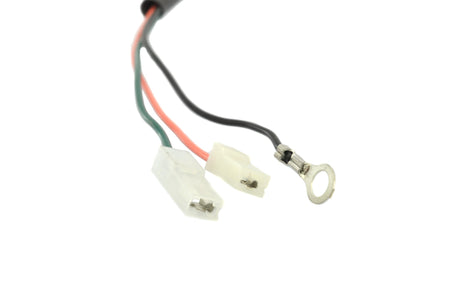

- Valve connectors and a ring-terminal ground included on the harness.
- Replaces specified 2326-132 / SRV2326-132 harness applications.
Specifications
- Reference part: 2326-132 / SRV2326-132
- Control family: IntelliFire Touch (IFT)
- Module connection: Six-pin plug
- Application voltage: Compatible 6 V IFT control systems
- Connections: Control module, valve, battery pack, appliance switch and ground
- Supply format: Individual wiring harness assembly
Compatibility
For appliances that explicitly list 2326-132 or SRV2326-132. Match the connector keying, branch layout and appliance wiring diagram. Not every six-pin IFT harness is identical: do not substitute this part for 2326-142 or another revision unless the appliance documentation explicitly permits it.
Cross Reference
- Heat & Glo: 2326-132 / SRV2326-132
- Heatilator: 2326-132 / SRV2326-132
- Majestic: 2326-132 / SRV2326-132
- Monessen: 2326-132 / SRV2326-132
- Quadra-Fire: 2326-132 / SRV2326-132
- Vermont Castings: 2326-132 / SRV2326-132
Fireplace Models
These are selected compatible applications, not a universal fit list. Match the appliance model, fuel, serial number and original component before ordering.
- Heatilator: NNXT33-IFT, NNXT33L-IFT, NNXT36-IFT, NNXT36L-IFT. Matching 6 V IFT configuration calling for 2326-132.
- Heatilator: NDV30-IFT, NDV30L-IFT, NDV33-IFT, NDV33L-IFT, NDV36-IFT, NDV36L-IFT, NDV36-IFT-NVR, NDV42-IFT, NDV42L-IFT. Matching 6 V IFT configuration calling for 2326-132.
- Majestic: MARQ42IN. Manufactured October 2016 through February 2019; service part SRV2326-132.
What's in the Box
One six-pin IFT wiring harness with the attached pre-terminated branch leads and ground terminal. Control module, valve, battery pack, wall switch and remote are not included.
Important Note
Installation and circuit checks should be performed by a qualified fireplace technician with appliance power disconnected. This is low-voltage control wiring, not a line-voltage power cord. Preserve the original routing and grounding, and do not bypass any appliance safety circuit.
Why Choose This Part?
Provides the specified plug and branch connections as one harness, reducing the need to rebuild damaged individual leads in a correctly matched appliance.
