HVAC Refrigeration Motor – EM1127 | 1/12 HP | 1550 RPM | 115/230V | OAO | Fasco Refrigeration Fan Motor Replacement

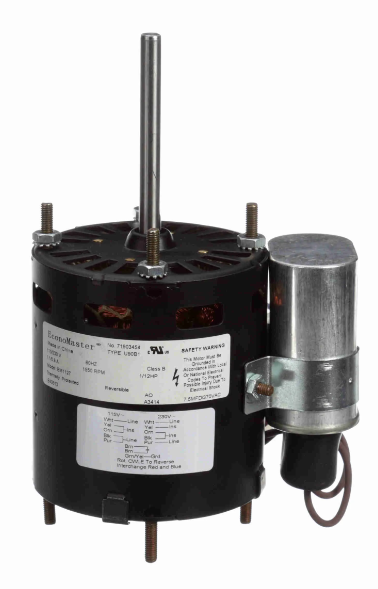

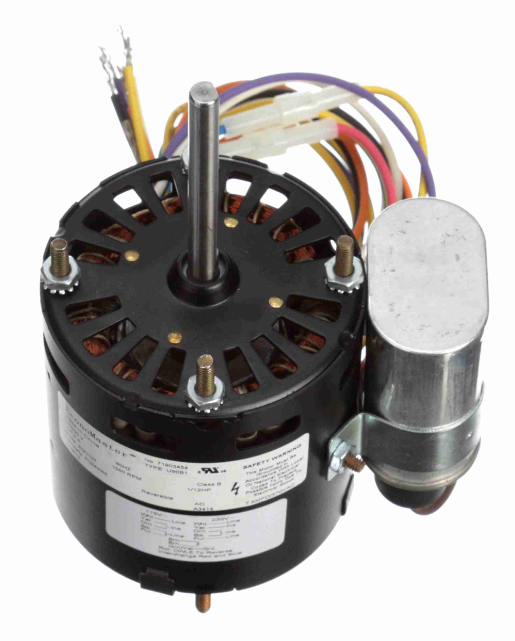

EM1127 Refrigeration Fan Motor – 1/12 HP – 1550 RPM – 115/230 Volt – Open Air Over Commercial Refrigeration Motor

Restore dependable airflow and cooling performance with the EM1127 refrigeration fan motor. Designed for commercial refrigeration equipment, evaporator units, walk-in coolers, freezers, beverage coolers, and refrigerated display cases, this high-performance PSC refrigeration motor is a direct OEM replacement for many refrigeration airflow applications.

The EM1127 features reliable 1/12 horsepower operation, 1550 RPM performance, and durable Open Air Over (OAO) construction engineered specifically for refrigeration evaporator and unit cooler systems. Built with reversible rotation and thermally protected operation, this motor delivers dependable long-lasting airflow circulation for commercial refrigeration environments.

Key Features:

• OEM Replacement Refrigeration Motor – Designed for evaporators, unit coolers, and refrigeration airflow systems
• 1/12 HP Performance – Provides dependable evaporator airflow circulation
• 1550 RPM Operation – Optimized for refrigeration cooling applications
• Open Air Over (OAO) Design – Built specifically for refrigeration airflow environments
• Permanent Split Capacitor (PSC) Motor – Reliable and energy-efficient operation
• Reversible Rotation – Compatible with CW or CCW applications
• Thermally Protected – Helps prevent overheating and extends motor life
• Sleeve Bearing Construction – Smooth and dependable operation
• Extended Stud Mounting – Compatible with many OEM refrigeration assemblies
• Universal Refrigeration Replacement Motor – Fits many walk-in coolers, freezers, beverage coolers, and refrigerated display cases

Specifications:

• Model: EM1127
• Brand: Fasco
• Motor Type: Refrigeration Fan Motor
• Horsepower: 1/12 HP
• Output Power: 0.06 kW
• Voltage: 115/230V
• Phase: Single Phase
• Frequency: 60 Hz
• RPM: 1550
• Number of Speeds: 1
• Current Draw: 1.10 / 0.60 Amps
• Service Factor: 1.0
• Frame Size: 3.3" Diameter
• Enclosure: Open Air Over (OAO)
• Duty Cycle: Air Over
• Thermal Protection: Thermally Protected
• Insulation Class: B
• Electrical Type: Permanent Split Capacitor (PSC)
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Mounting: Extended Studs
• Bearings: Sleeve Bearings (Drive End & Opposite Drive End)
• Frame Material: Steel
• Shaft Type: Flat
• Shaft Diameter: 5/16" (0.312")
• Shaft Extension: 3.00"
• Overall Length: 6.87"
• Frame Length: 3.32"
• Ambient Rating: 40°C
• UL Recognized: Yes
• CSA Listed: No
• CE Approved: No

General Specifications:

• UPC: 786674070234
• Weight: 3.97 lbs
• Packaged Length: 8.27"
• Packaged Width: 3.62"
• Packaged Height: 5.07"
• Country of Origin: China

Compatible Refrigeration Equipment Applications:

• Walk-In Coolers
• Walk-In Freezers
• Refrigerated Display Cases
• Unit Coolers
• Evaporator Fan Assemblies
• Reach-In Coolers
• Beverage Coolers
• Commercial Refrigeration Systems
• Refrigeration Air Circulation Systems

Important Fitment Notice:

• Always verify horsepower, voltage, RPM, shaft dimensions, and mounting configuration before ordering
• Confirm rotation direction and frame size prior to installation
• Professional refrigeration installation recommended
• Designed specifically for refrigeration airflow applications
• Capacitor requirements may vary by application

Why Replace Your Refrigeration Fan Motor?

A failing refrigeration fan motor can cause poor airflow, uneven cooling, ice buildup, compressor strain, excessive energy consumption, and refrigeration system failure. Replacing a worn refrigeration motor restores proper airflow circulation and helps maintain consistent cooling performance.

Why Choose the EM1127 Refrigeration Motor?

The EM1127 is a dependable commercial refrigeration replacement motor engineered for long-lasting airflow performance in demanding refrigeration environments. With durable steel construction, reversible rotation, thermally protected operation, and broad refrigeration equipment compatibility, this motor is an ideal solution for restoring reliable cooling airflow in commercial refrigeration systems.
