HVAC Furnace Blower Motor – EM3584 | 1/4 HP | 1075 RPM | 208-230V | 3-Speed | Open Air Over | OEM Replacement

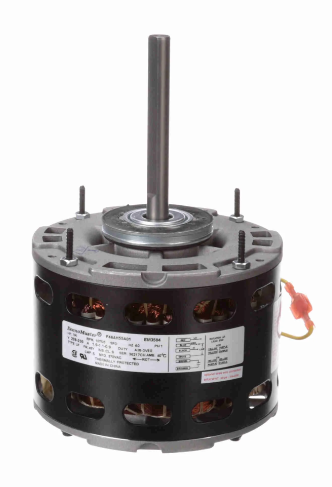

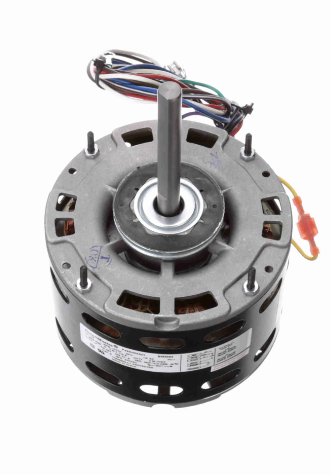

EM3584 Fan & Blower Motor – 1/4 HP – 1075 RPM – 208-230 Volt – 3-Speed Furnace Blower Replacement Motor

Restore reliable airflow and HVAC system performance with the EM3584 fan and blower motor. Designed for residential and light commercial furnace blowers, air handlers, and fan coil systems, this high-performance PSC blower motor is a direct OEM replacement for many HVAC applications.

The EM3584 features dependable 1/4 horsepower output, 1075 RPM operation, and a versatile 3-speed design for flexible airflow adjustment across a wide range of furnace and air handler systems. Built with durable rolled steel construction and precision ball bearings, this motor delivers dependable long-lasting airflow performance for residential and commercial HVAC applications.

Key Features:

• Pro-E Series® Direct Drive Fan & Blower Motor
• 1/4 HP Performance – Designed for furnace and blower applications
• 1075 RPM Operation – Optimized for furnace blower and air handler airflow
• 3-Speed Operation – Flexible airflow performance for HVAC systems
• Permanent Split Capacitor (PSC) Motor
• Capacitor Required: 5 MFD / 370 Volts (Not Included)
• Thermally Protected – Helps prevent overheating and extends motor life
• Open Air Over Design – Built specifically for indoor HVAC airflow systems
• Class B Insulation – Rated for 40°C ambient temperature
• Ball Bearing Construction – Smooth operation and extended service life
• 1/2" Diameter Shaft with Flat
• 25" Leads
• Extended Stud Shaft End
• Resilient Ring Mounting Compatible
• Belly Band Mount Compatible (Belly Band Not Included)
• A2L Certified – Approved for use in A2L refrigerant systems

Nameplate Specifications:

• Model: EM3584
• Brand: Century PRO-E SERIES®
• Phase: Single Phase
• Horsepower: 1/4 HP
• Output Power: 0.19 kW
• Voltage: 208-230V
• RPM: 1075
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40°C
• Frequency: 60 Hz
• Current Draw: 1.9 / 1.1 / 0.9 Amps
• Duty Cycle: Air Over
• Insulation Class: B
• UL Recognized: Yes
• CSA Listed: Yes
• CE Approved: No
• A2L Status: A2L Certified
• Number of Speeds: 3

Technical Specifications:

• Electrical Type: Permanent Split Capacitor (PSC)
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball Bearing
• Opposite Drive End Bearing: Ball Bearing
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 1/2" (0.500")
• Shaft Extension: 4.0"
• Overall Length: 8.99"
• Frame Length: 3.99"

General Specifications:

• UPC: 786674019479
• Weight: 10.00 lbs
• Packaged Length: 13.78"
• Packaged Width: 6.41"
• Packaged Height: 6.81"
• HTS Code: 8501.40.4040
• Country of Origin: India

Compatible HVAC Equipment Applications:

• Residential Gas Furnaces
• Electric Furnaces
• Air Handlers
• Fan Coil Units
• HVAC Blower Assemblies
• Whole House Fans
• Direct Drive HVAC Systems
• Light Commercial HVAC Equipment

Important Fitment Notice:

• Always verify horsepower, voltage, RPM, shaft dimensions, and rotation before ordering
• Requires 5 MFD / 370V capacitor
• Capacitor is NOT included unless otherwise specified
• Confirm mounting configuration and shaft length prior to installation
• Professional HVAC installation recommended
• Designed specifically for fan and blower applications

Why Replace Your Furnace Blower Motor?

A failing blower motor can cause weak airflow, overheating, noisy operation, poor heating or cooling performance, and complete HVAC system shutdown. Replacing a worn blower motor restores proper airflow and helps maintain efficient indoor comfort year-round.

Why Choose the EM3584 Fan & Blower Motor?

The EM3584 is a trusted universal blower motor engineered for dependable HVAC performance. With multi-speed flexibility, reversible rotation, durable ball bearing construction, and broad OEM compatibility, this motor is an ideal solution for restoring reliable airflow and system performance in residential and light commercial HVAC applications.
