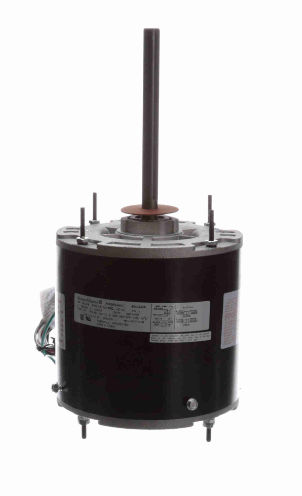

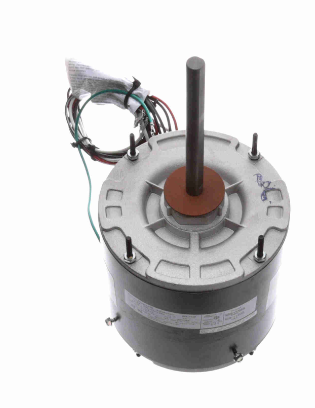

HVAC Condenser Fan Motor – EM3468F | 1/2 & 1/4 HP | 1075 RPM | 208-230V | 2-Speed | Totally Enclosed | OEM Replacement

EM3468F Condenser Fan Motor – 1/2 HP & 1/4 HP – 1075 RPM – 208-230 Volt – 2-Speed HVAC Outdoor Condenser Replacement Motor

Restore reliable cooling performance and condenser airflow with the EM3468F condenser fan motor. Designed for residential and light commercial HVAC systems, this high-performance PSC condenser fan motor is a direct OEM replacement for many outdoor condensing units and heat pump systems.

The EM3468F features dual horsepower ratings of 1/2 HP and 1/4 HP, 1075 RPM operation, and a versatile 2-speed design for flexible condenser airflow applications. Built with durable Totally Enclosed construction and precision ball bearings, this motor is engineered to withstand demanding outdoor HVAC environments while delivering dependable long-lasting cooling performance.

Key Features:

• OEM Replacement Condenser Fan Motor – Designed for outdoor AC condenser and heat pump applications
• Dual Horsepower Design – Rated for 1/2 HP and 1/4 HP applications
• 2-Speed Operation – Flexible airflow performance for HVAC condenser systems
• 1075 RPM Operation – Optimized for condenser fan airflow applications
• Totally Enclosed Design – Helps protect against moisture, dirt, and outdoor contaminants
• Permanent Split Capacitor (PSC) Motor – Reliable and energy-efficient operation
• Reversible Rotation – Compatible with CW or CCW applications
• Ball Bearing Construction – Smooth operation and extended service life
• Automatic Thermal Protection – Helps prevent overheating and extends motor life
• A2L Certified – Approved for use in A2L refrigerant systems

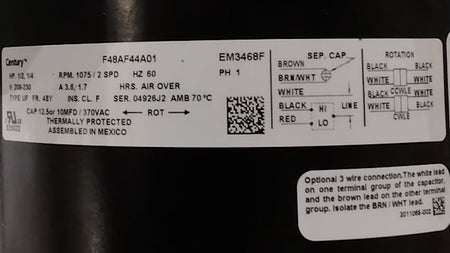

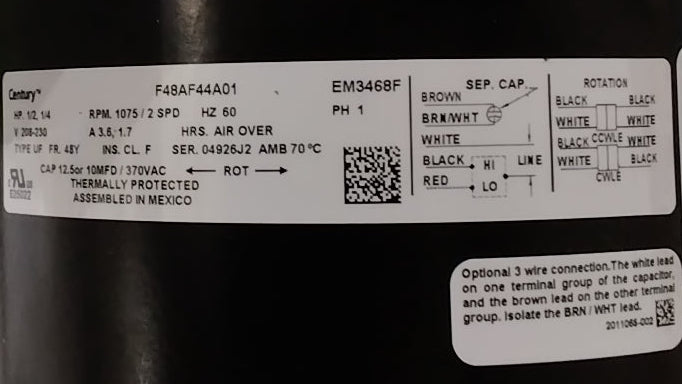

Nameplate Specifications:

• Model: EM3468F
• Brand: Century PRO-E SERIES®
• Phase: Single Phase
• Horsepower: 1/2 HP, 1/4 HP
• Output Power: 0.37 kW
• Voltage: 208-230V
• RPM: 1075
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70°C
• Frequency: 60 Hz
• Current Draw: 3.6 / 1.7 Amps
• Duty Cycle: Air Over
• Insulation Class: F
• UL Recognized: Yes
• CSA Listed: Yes
• CE Approved: No
• A2L Status: A2L Certified
• Number of Speeds: 2

Technical Specifications:

• Electrical Type: Permanent Split Capacitor (PSC)
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball Bearing
• Opposite Drive End Bearing: Ball Bearing
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 1/2" (0.500")
• Shaft Extension: 6.0"
• Overall Length: 11.80"
• Frame Length: 4.63"

General Specifications:

• UPC: 786674068996
• Weight: 17.00 lbs
• Packaged Length: 13.78"
• Packaged Width: 6.41"
• Packaged Height: 6.81"
• HTS Code: 8501.40.4040
• Country of Origin: Mexico

Compatible HVAC Equipment Applications:

• Outdoor Air Conditioner Condensing Units
• Heat Pump Condenser Units
• Residential Split Systems
• Rooftop HVAC Units
• Outdoor Fan Assemblies
• Commercial HVAC Condensers
• Refrigeration Condensing Units
• Economaster Condensing Units

Important Fitment Notice:

• Always verify horsepower, voltage, RPM, shaft dimensions, and rotation before ordering
• Confirm mounting configuration and shaft length prior to installation
• Capacitor may not be included unless otherwise specified
• Professional HVAC installation recommended
• Designed specifically for condenser fan applications

Why Replace Your Condenser Fan Motor?

A failing condenser fan motor can cause overheating, poor cooling performance, compressor shutdowns, excessive energy consumption, and complete HVAC system failure. Replacing a worn condenser fan motor restores proper condenser airflow and helps maintain efficient cooling system operation.

Why Choose the EM3468F Condenser Fan Motor?

The EM3468F is a trusted universal condenser fan replacement motor engineered for dependable HVAC performance. With durable totally enclosed construction, reversible rotation, dual-speed operation, ball bearing durability, and broad OEM compatibility, this motor is an ideal solution for restoring reliable condenser airflow and cooling performance in residential and light commercial HVAC systems.
