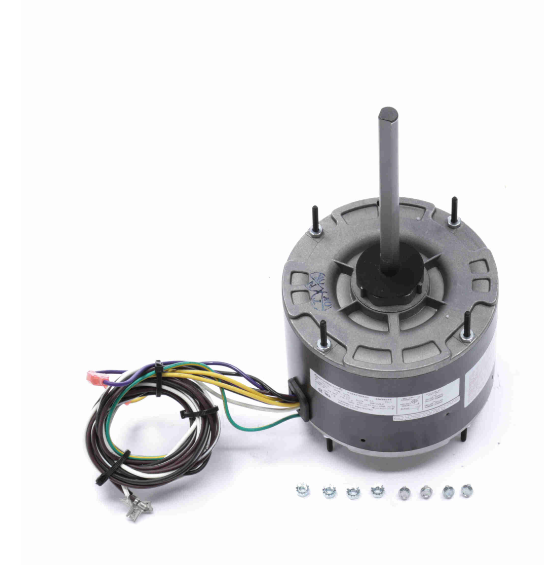

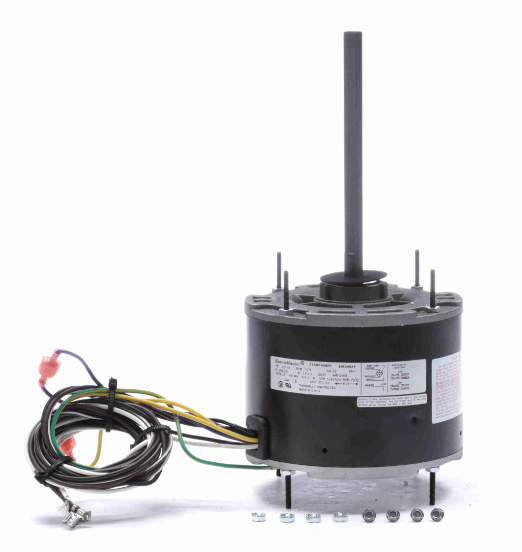

HVAC Condenser Fan Motor – EM3458F | 1/3–1/6 HP | 1075 RPM | 208-230V | TEAO | OEM Replacement

EM3458F Condenser Fan Motor – Multi-Horsepower 1/6 HP through 1/3 HP – 1075 RPM – 208-230 Volt – HVAC Outdoor Condenser Replacement Motor

Restore reliable cooling performance and condenser airflow with the EM3458F condenser fan motor. Designed for residential and light commercial HVAC systems, this high-performance PSC condenser fan motor is a direct OEM replacement for many outdoor condensing units and heat pump systems.

The EM3458F features versatile multi-horsepower capability from 1/6 HP through 1/3 HP, 1075 RPM operation, and durable Totally Enclosed Air Over (TEAO) construction engineered to withstand demanding outdoor HVAC environments. Built with ball bearings and thermally protected operation, this motor delivers dependable long-lasting airflow performance for air conditioner condensers and heat pump systems.

Key Features:

• OEM Replacement Condenser Fan Motor – Designed for outdoor AC condenser and heat pump applications
• Multi-Horsepower Design – Rated from 1/6 HP through 1/3 HP
• 1075 RPM Operation – Optimized for condenser fan airflow applications
• Totally Enclosed Air Over (TEAO) Design – Protects against moisture and outdoor contaminants
• Permanent Split Capacitor (PSC) Motor – Reliable and energy-efficient operation
• Reversible Rotation – Compatible with CW or CCW applications
• Ball Bearing Construction – Smooth operation and extended service life
• Automatic Thermal Protection – Helps prevent overheating and extends motor life
• Extended Stud Mounting – Compatible with many OEM condenser fan assemblies
• Built for Residential & Light Commercial HVAC Applications

Nameplate Specifications:

• Model: EM3458F
• Brand: Century PRO-E SERIES®
• Phase: Single Phase
• Horsepower: 1/3–1/6 HP
• Output Power: 0.25 kW
• Voltage: 208-230V
• RPM: 1075
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over (TEAO)
• Thermal Protection: Automatic
• Ambient Temperature: 70°C
• Frequency: 60 Hz
• Current Draw: 1.8–2.0 Amps
• Duty Cycle: Air Over
• Insulation Class: F
• UL Recognized: Yes
• CSA Listed: Yes
• CE Approved: No
• Number of Speeds: 1

Technical Specifications:

• Electrical Type: Permanent Split Capacitor (PSC)
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball Bearing
• Opposite Drive End Bearing: Ball Bearing
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 1/2" (0.500")
• Shaft Extension: 6.7"
• Overall Length: 11.68"
• Frame Length: 4.19"

General Specifications:

• UPC: 786674069016
• Weight: 12.00 lbs
• Packaged Length: 13.78"
• Packaged Width: 6.81"
• Packaged Height: 6.54"
• HTS Code: 8501.40.4040
• Country of Origin: India

Compatible HVAC Equipment Applications:

• Outdoor Air Conditioner Condensing Units
• Heat Pump Condenser Units
• Residential Split Systems
• Rooftop HVAC Units
• Outdoor Fan Assemblies
• Commercial HVAC Condensers
• Refrigeration Condensing Units
• Economaster Condensing Units

Important Fitment Notice:

• Always verify horsepower, voltage, RPM, shaft dimensions, and rotation before ordering
• Confirm mounting configuration and shaft length prior to installation
• Capacitor may not be included unless otherwise specified
• Professional HVAC installation recommended
• Designed specifically for condenser fan applications

Why Replace Your Condenser Fan Motor?

A failing condenser fan motor can cause overheating, poor cooling performance, compressor shutdowns, excessive energy consumption, and complete HVAC system failure. Replacing a worn condenser fan motor restores proper condenser airflow and helps maintain efficient cooling system operation.

Why Choose the EM3458F Condenser Fan Motor?

The EM3458F is a trusted universal condenser fan replacement motor engineered for dependable HVAC performance. With durable TEAO construction, reversible rotation, ball bearing durability, and broad OEM compatibility, this motor is an ideal solution for restoring reliable condenser airflow and cooling performance in residential and light commercial HVAC systems.
