HVAC Condenser Fan Motor – EM3209F | 1/8 HP | 825 RPM | 460V | TEAO | OEM Replacement

EM3209F Condenser Fan Motor – 1/8 HP – 825 RPM – 460 Volt – HVAC Outdoor Condenser Replacement Motor

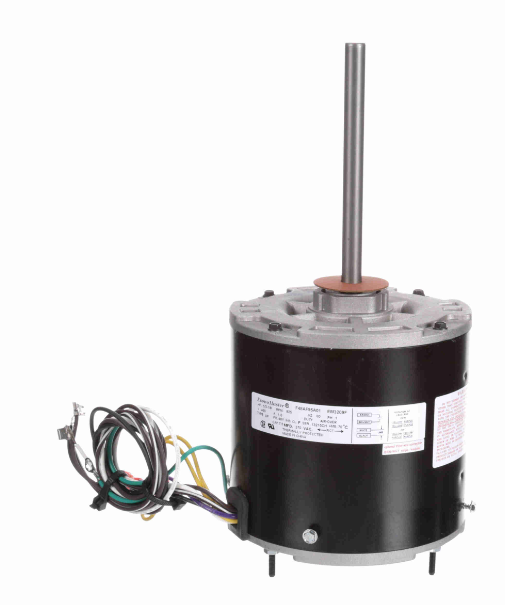

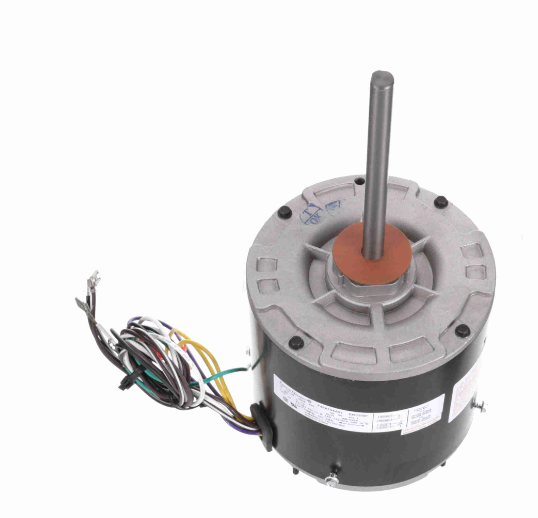

Restore reliable cooling performance and condenser airflow with the EM3209F condenser fan motor. Designed for residential and light commercial HVAC systems, this high-performance PSC condenser fan motor is a direct OEM replacement for many outdoor condensing units and heat pump systems.

The EM3209F features dependable 1/8 horsepower output, 825 RPM operation, and durable Totally Enclosed Air Over (TEAO) construction engineered to withstand demanding outdoor HVAC environments. Built with ball bearings and thermally protected operation, this motor delivers reliable long-lasting airflow performance for air conditioner condensers and heat pump systems.

Key Features:

• OEM Replacement Condenser Fan Motor – Designed for outdoor AC condenser and heat pump applications
• 1/8 HP Performance – Provides dependable condenser airflow and cooling operation
• 825 RPM Operation – Optimized for HVAC condenser fan applications
• Totally Enclosed Air Over (TEAO) Design – Helps protect against moisture and outdoor contaminants
• Reversible Rotation – Compatible with CW or CCW applications depending on wiring configuration
• Permanent Split Capacitor (PSC) Design – Reliable and energy-efficient motor operation
• Ball Bearing Construction – Smooth operation and extended motor life
• Thermally Protected – Helps prevent overheating and extends motor life
• Universal OEM Replacement – Compatible with many Carrier, Goodman, Rheem, Trane, Lennox, York, and aftermarket HVAC systems

Specifications:

• Model: EM3209F
• Motor Type: Condenser Fan Motor
• Horsepower: 1/8 HP
• Voltage: 208-230V
• Phase: Single Phase
• Frequency: 60 Hz
• RPM: 825
• Speeds: Single Speed
• Amperage: Approx. 1.1 Amps
• Frame Size: 48Y Frame
• Motor Diameter: 5.6" / 5-5/8"
• Rotation: Reversible
• Shaft Diameter: 1/2"
• Shaft Length: 6"
• Shaft Style: Double Flat
• Bearings: Ball Bearings
• Enclosure: Totally Enclosed Air Over (TEAO)
• Capacitor Required: 5 MFD / 370V
• Thermal Protection: Automatic Overload
• Mounting: Extended Studs / Belly Band Mount
• Lead Length: Approx. 36" Leads
• Insulation Class: Class F
• Ambient Rating: 70°C
• Duty Cycle: Air Over / Continuous Duty

Replaces OEM Part Numbers:

Century / A.O. Smith

• EM3209F
• EM3209

Packard

• 43709

Mars

• 10709

Diversitech / Wagner

• WG840709

Universal Cross References

• SE3209F
• SS3209
• R3209

Compatible HVAC Equipment Applications:

• Outdoor Air Conditioner Condensing Units
• Heat Pump Condenser Units
• Residential Split Systems
• Rooftop HVAC Units
• Outdoor Fan Assemblies
• Commercial HVAC Condensers
• Refrigeration Condensing Units
• Economaster Condensing Units

Important Fitment Notice:

• Always verify horsepower, voltage, RPM, shaft dimensions, and rotation before ordering
• Requires 5 MFD / 370V capacitor
• Capacitor may not be included unless otherwise specified
• Confirm shaft length and mounting configuration prior to installation
• Professional HVAC installation recommended
• Designed specifically for condenser fan applications

Why Replace Your Condenser Fan Motor?

A failing condenser fan motor can cause overheating, poor cooling performance, compressor shutdowns, excessive energy consumption, and complete HVAC system failure. Replacing a worn condenser fan motor restores proper condenser airflow and helps maintain efficient cooling system performance.

Why Choose the EM3209F Condenser Fan Motor?

The EM3209F is a trusted universal condenser fan replacement motor designed for dependable HVAC performance. With durable TEAO construction, reversible rotation, dependable 825 RPM operation, and broad OEM compatibility, this motor is an excellent solution for restoring reliable condenser airflow and cooling performance in residential and light commercial HVAC systems.
