Heatilator 30029 Electronic Ignitor / Electrode

Heatilator 30029 Electronic Ignitor / Electrode

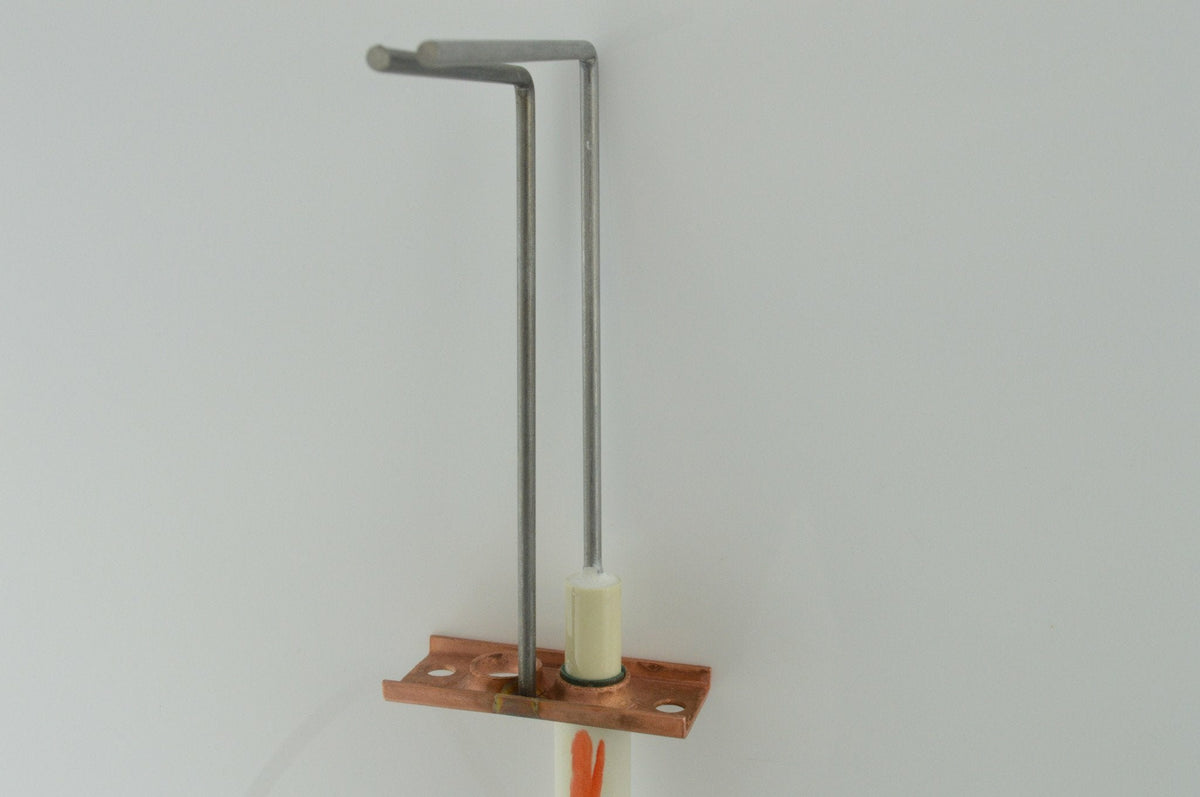

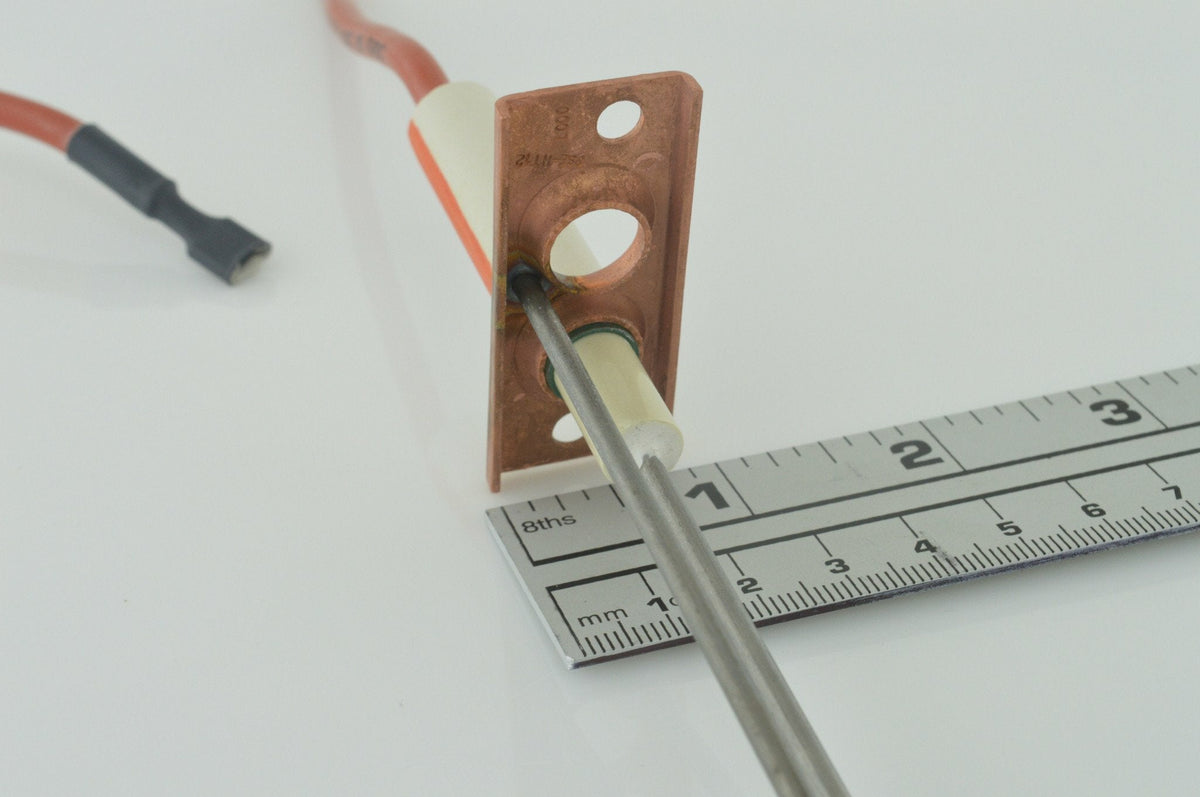

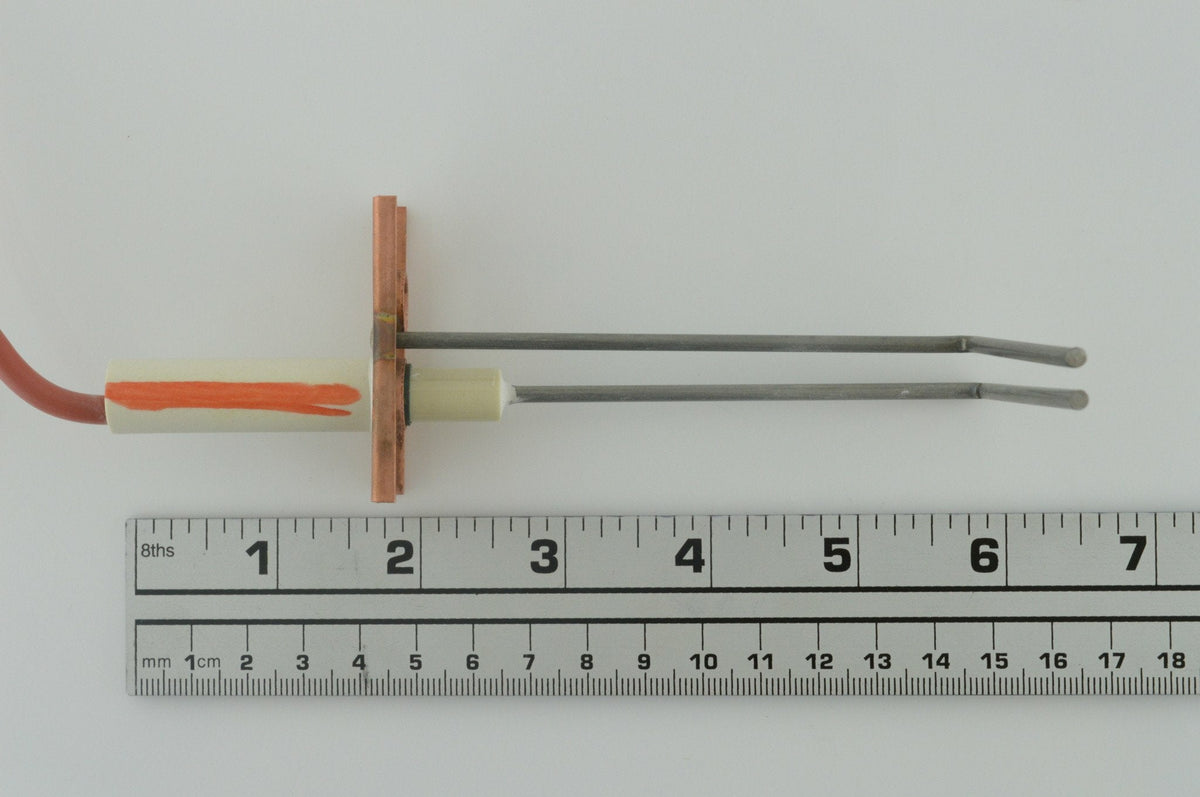

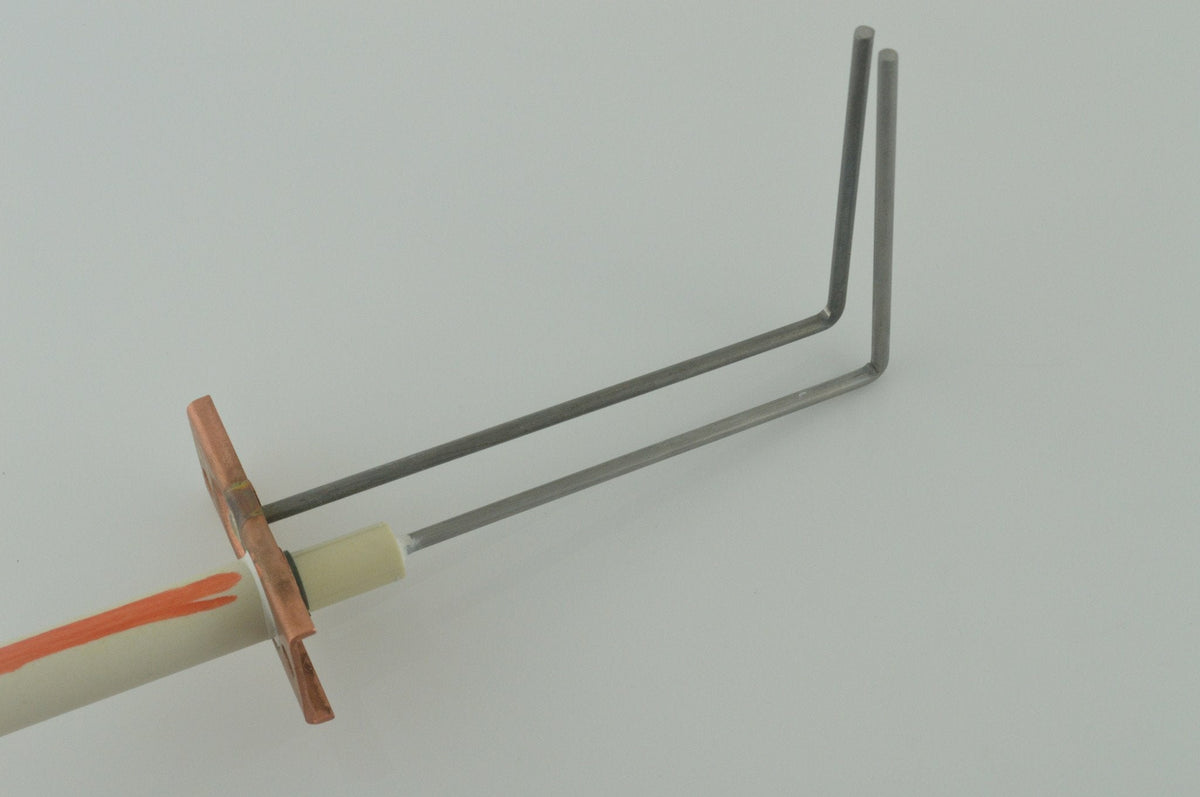

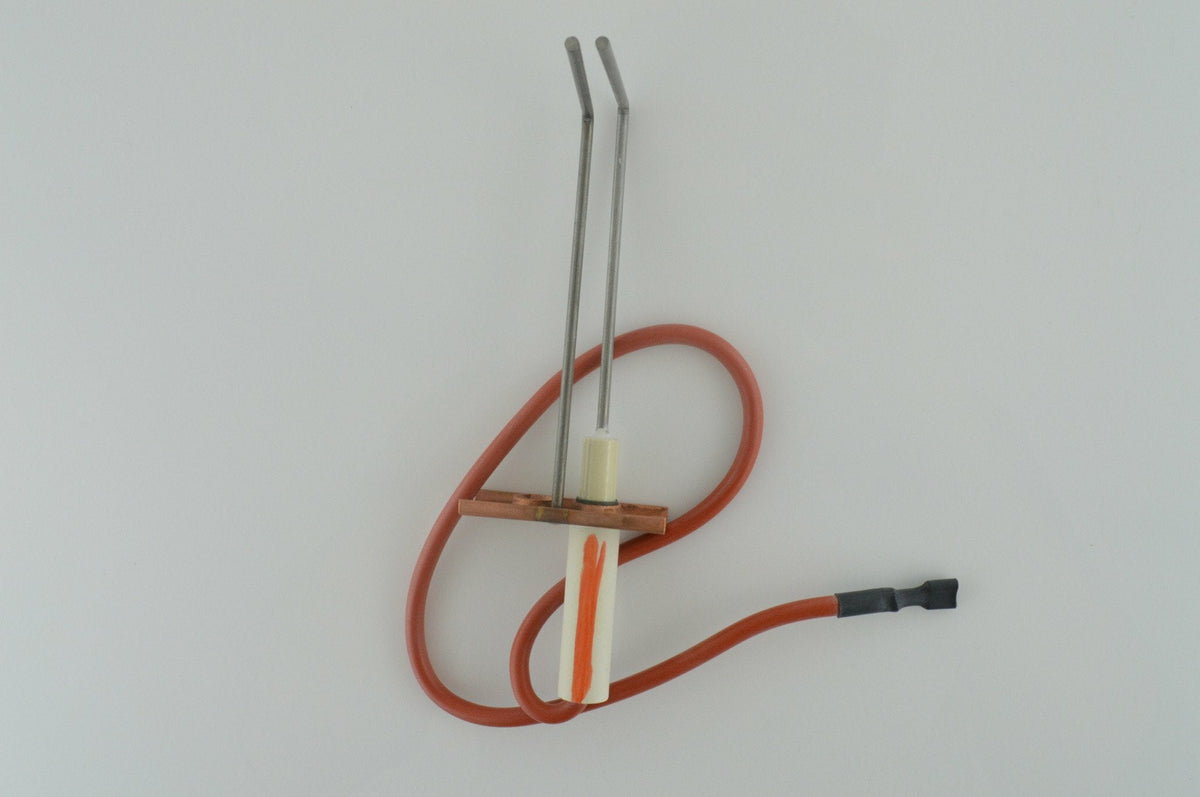

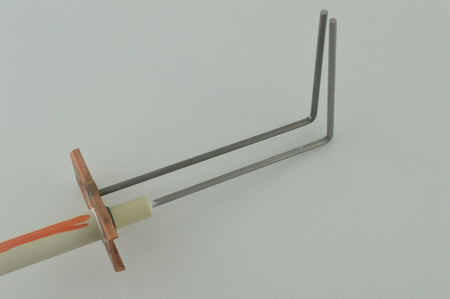

The 30029 electronic ignitor/electrode serves specified Heatilator Caliber fireplaces equipped with direct spark ignition (DSI). The assembly includes the electrode, ceramic insulation, mounting bracket and attached lead shown in the photographs. Use the exact model and production-code information below rather than the Caliber name alone to select a replacement.

Key Features

• Electronic electrode assembly for direct spark ignition (DSI) systems.
• Identified by Heatilator part number 30029 and cross-reference SRV30029.

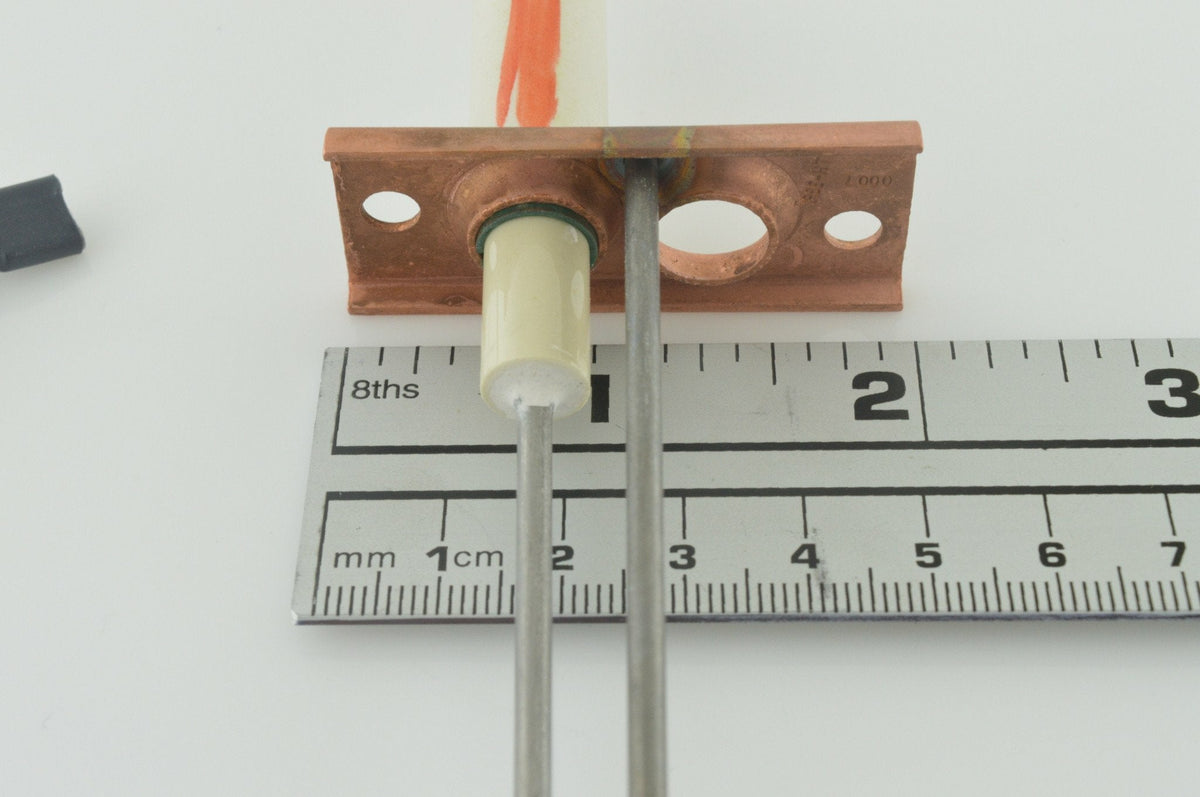

• Ceramic insulator separates the electrode from the metal mounting bracket.

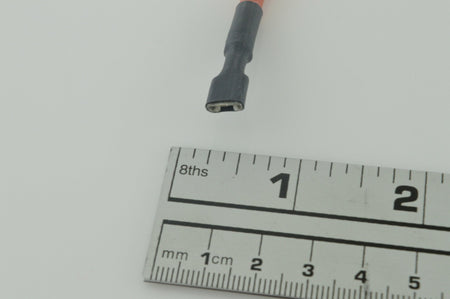

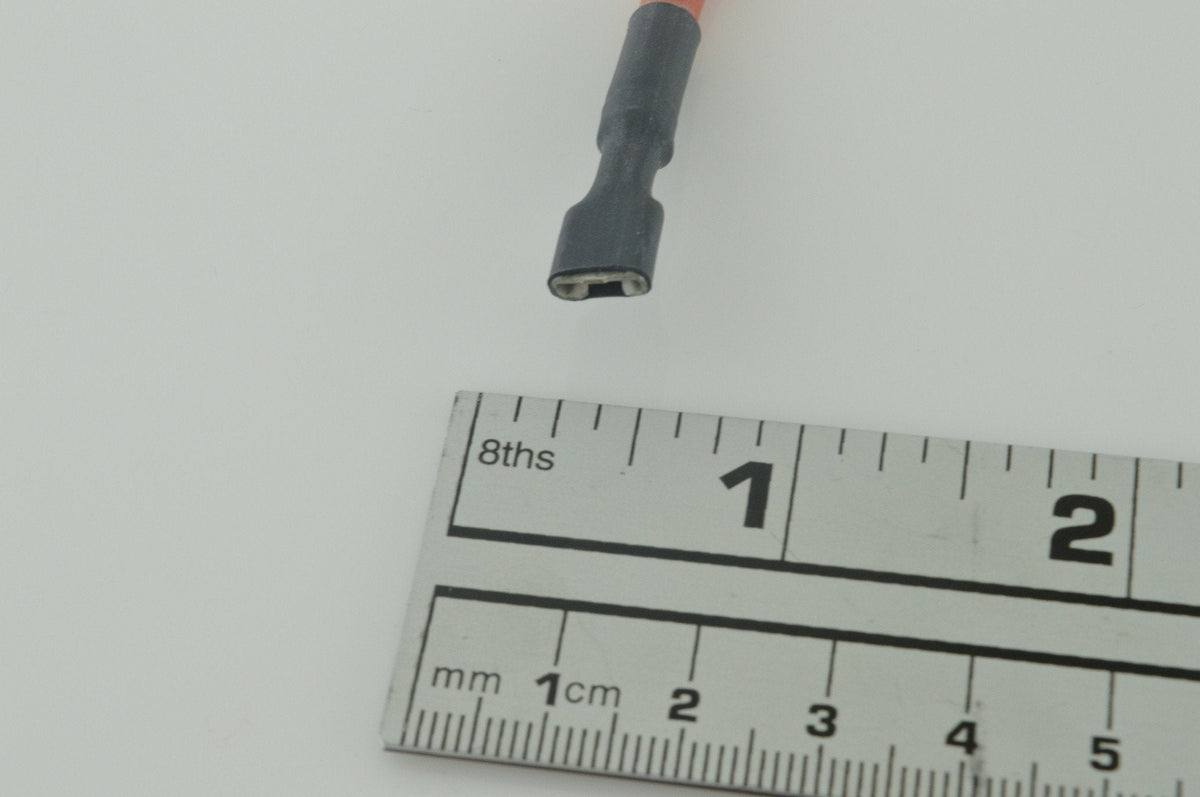

• Attached insulated ignition lead ends in the connector shown in the gallery.
• Verified for specific GCBC and GCDC Caliber models, with production-code limits where stated.

Specifications

• Part number: 30029
• Cross-reference: SRV30029
• Ignition system: Direct spark ignition (DSI)
• Assembly shown: Electrode, ceramic insulator, bracket and attached insulated lead
• Selection requirement: Match model, production code, original electrode shape and connection

Compatibility

Match the original part number, exact model, ignition system and any applicable production range. A shared fireplace brand or similar appearance alone does not establish compatibility.

Cross Reference

• Heatilator: 30029 / SRV30029

Fireplace Models

The following exact models are supported by manufacturer service-parts information. This is a verified selection, not a universal or exhaustive fit list.

• Heatilator: GCBC60E, GCBC60LE. Pre 06/00 only. Post 06/00 units use ignitor 30355, not 30029.
• Heatilator: GCBC80E, GCBC80LE. Pre 06/00 only. Post 06/00 units use ignitor 30355, not 30029.
• Heatilator: GCDC60E, GCDC60LE. Post 15/99 only, as specified in the manufacturer service-parts sheet.
• Heatilator: GCDC80E, GCDC80LE

What's in the Box

One 30029 ignitor/electrode assembly with its attached lead and mounting bracket, as pictured.

Before Ordering

• The production codes above are reproduced as the manufacturer identifies them; do not interpret them as ordinary month/year dates.
• Do not substitute this electrode for 30355 or another DSI electrode based on appearance alone.
• Have a qualified fireplace service technician verify the replacement and follow the appliance manufacturer's service instructions.

Important Note

This is a special-order item. Confirm availability and lead time before ordering. Installation and safety testing must be performed by a qualified gas-appliance technician. Do not bypass safety devices.

Why Choose This Replacement?

The specific part-number and model details help you compare this service component with your original appliance parts list before ordering.
