Front/Rear Liner | Replacement Firebox Panel for Johnson, US Stove & Vogelzang Furnaces | 11-1/8" to 7-7/8" x 7-5/8" | Part #40264

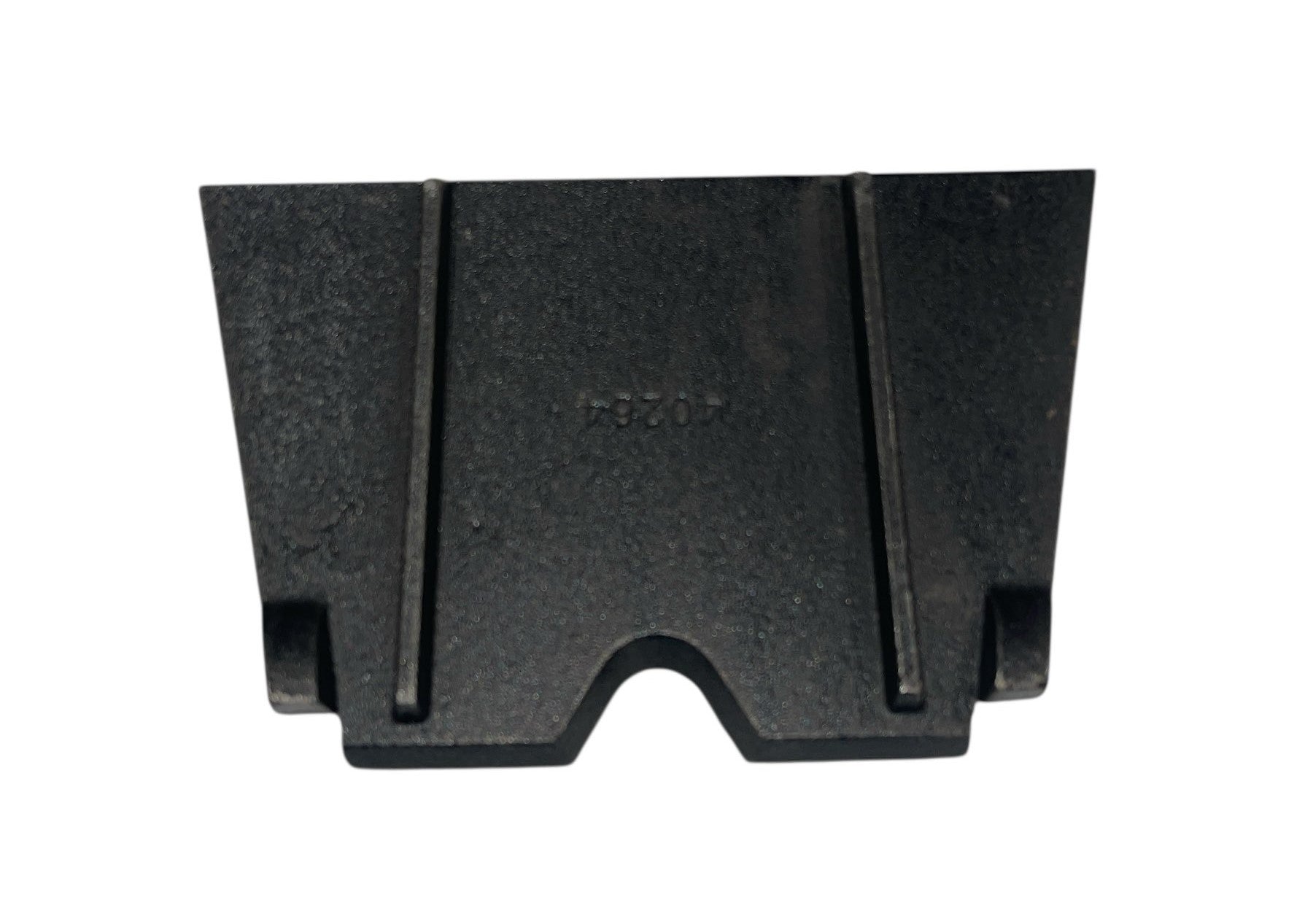

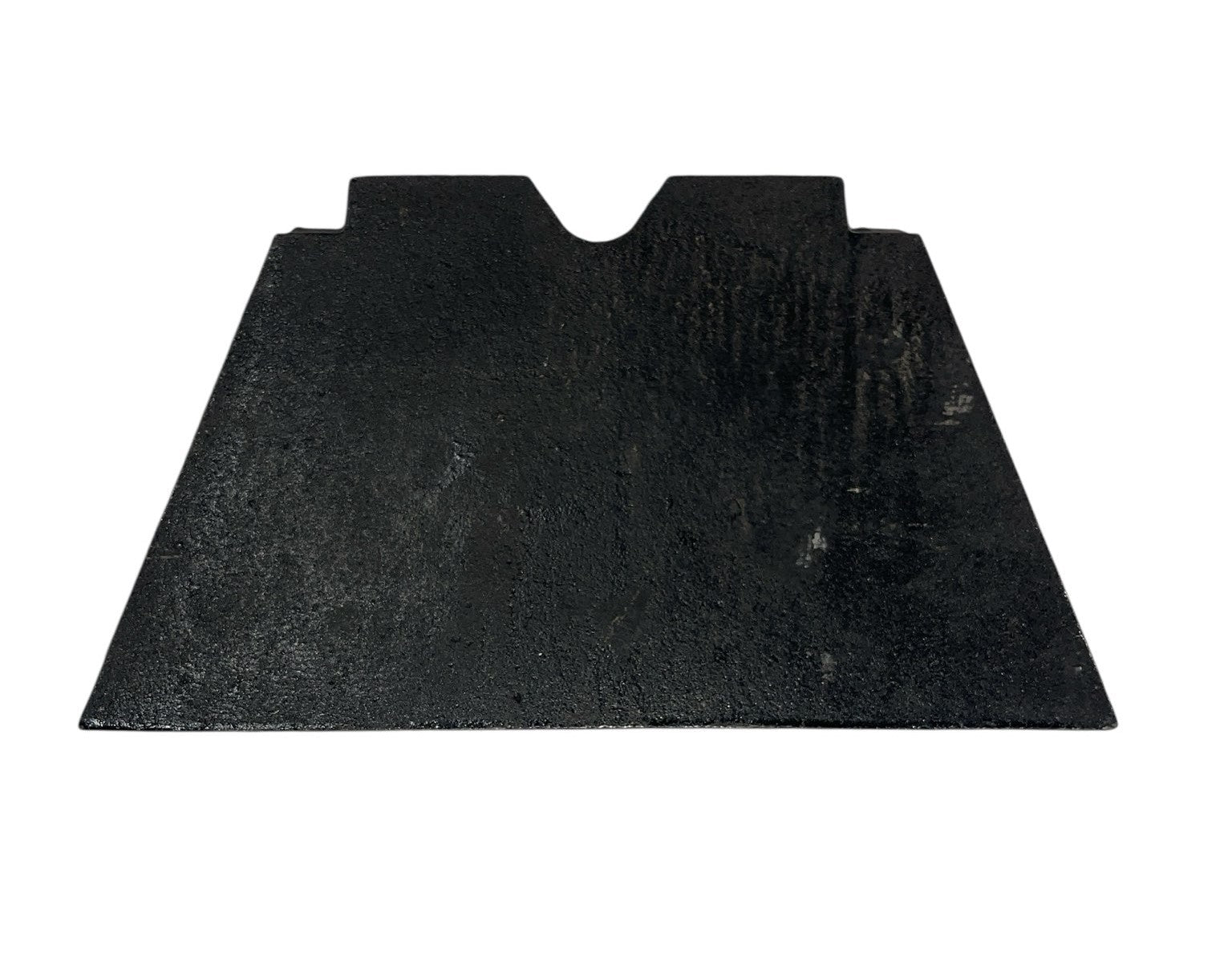

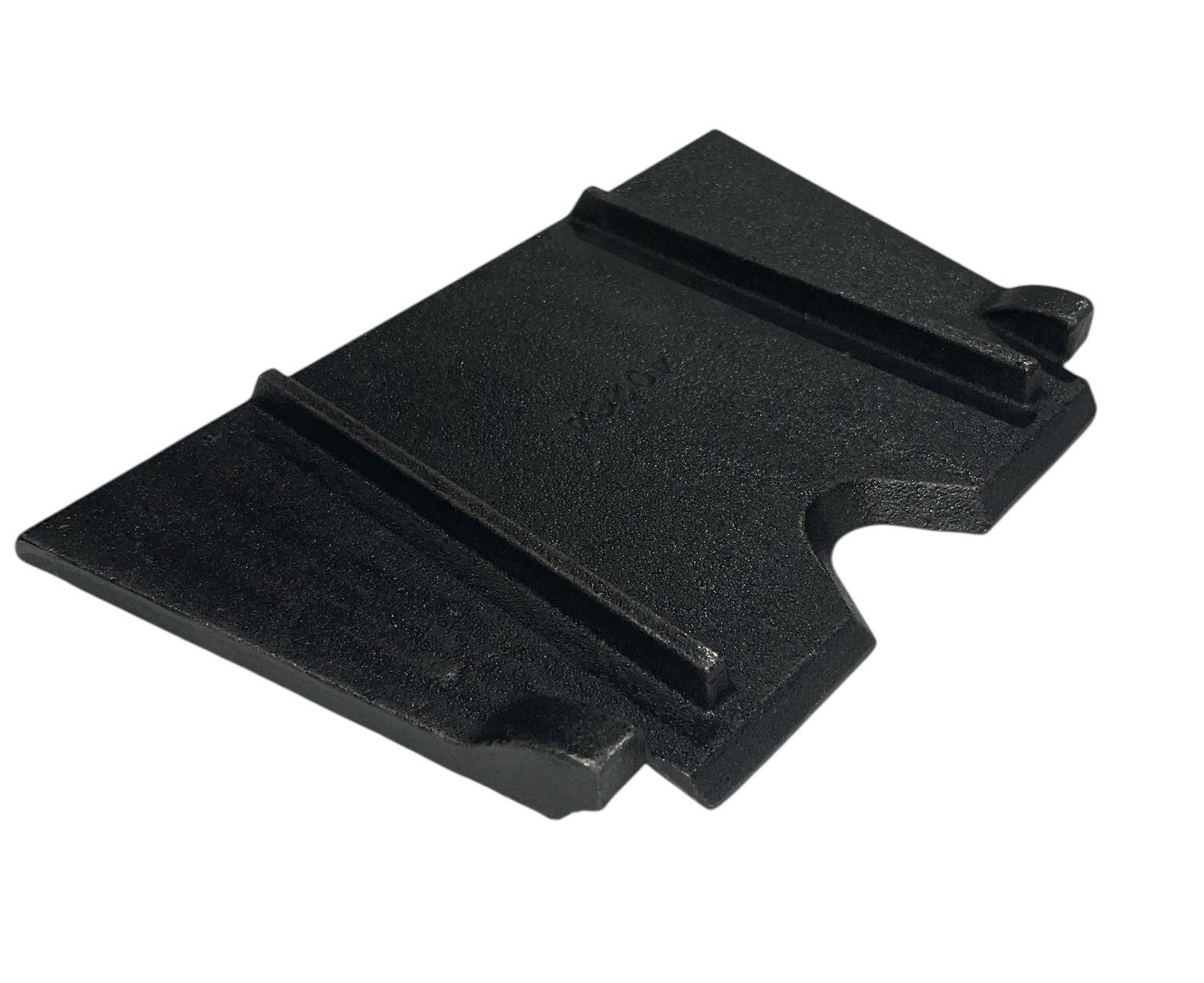

Front/Rear Liner (40264) – OEM Replacement Firebox Panel for Johnson, US Stove & Vogelzang Furnaces (11-1/8" to 7-7/8" x 7-5/8")

Ensure long-lasting heat protection and efficiency with the Front/Rear Liner (40264). This OEM firebox liner is designed for use on both the front and rear walls of select Johnson, US Stove, and Vogelzang furnaces. Engineered to withstand extreme firebox temperatures, it helps maintain structural integrity and promotes safer, more efficient combustion. Sold individually—most furnaces require two liners per installation.

Key Features:

• Dual-Purpose Fit – Serves as either a front or rear liner panel
• OEM Certified – Genuine US Stove part ensures precision fit and reliability
• Heat-Resistant Construction – Built for continuous exposure to extreme firebox heat
• Tapered Design – Simplifies placement and supports efficient fuel combustion

Specifications:

• Part Number: 40264
• Dimensions: 11-1/8" (top width) tapering to 7-7/8" (bottom width) x 7-5/8" height
• Material: OEM-grade high-temperature refractory
• Application: Front or rear firebox liner panel
• Sold: Individually (2 required per furnace)
• Replaces: US Stove Part #40264

Compatible Models:

Johnson Wood Furnaces:

• J7300 (Qty: 2 required)
• J7300C (Qty: 2 required)

US Stove Wood Furnaces:

• Ashley 22AF (Qty: 2 required)
• HotBlast 1300 (Qty: 2 required)
• HotBlast 1357M (Qty: 2 required)

Vogelzang Furnaces:

• VG1500 (Norseman 1500) – Qty: 2 required

Note: May also fit additional models. Always verify part number compatibility with your owner’s manual.

Pairs well with: US Stove Company Parts and Vogelzang Parts

Keep your furnace protected and running at peak performance with the OEM Front/Rear Liner (40264). Replace worn or damaged liners to restore safe, efficient operation.
