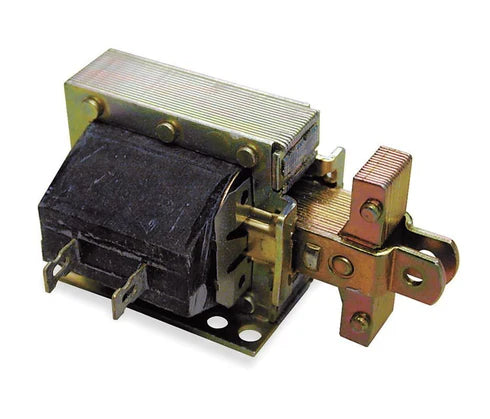

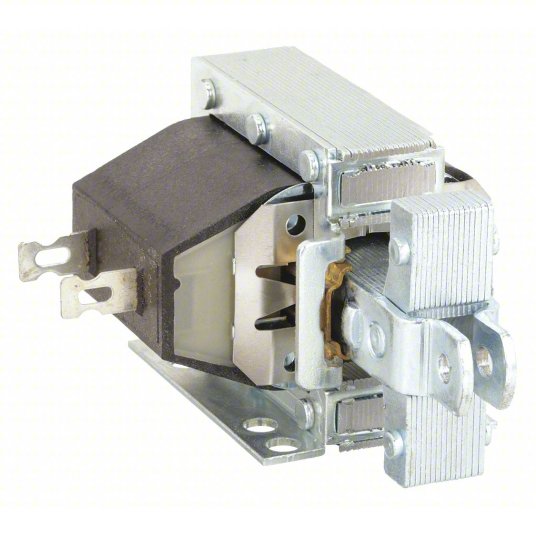

Dormeyer 1000 M-1 Laminated Solenoid – 120V AC, Pull-Type, Continuous Duty – SKU: LS002
The Dormeyer 1000 M-1 Laminated Solenoid is a compact, continuous-duty pull-type solenoid engineered for reliable performance in tight installations. With a durable laminated steel frame, RoHS-compliant construction, and efficient thermal performance, it’s a trusted replacement for WM and other models used in heating, automation, and appliance systems.
Key Features
• Compact Pull-Type Solenoid – Fits easily into tight spaces
• Durable Laminated Steel Construction – Resists corrosion and wear
• Wide Pull Force Range – 16 oz to 80 oz across a 1/8" to 3/4" stroke
• Efficient Operation – Low seated current (0.24 A) with only 9.5W seated power
• Quick-Mount Design – 1 3/8" x 7/8" mounting hole spacing
• RoHS Compliant – Safe, environmentally friendly construction
Specifications
• Manufacturer: Dormeyer
• SKU: LS002
• Model: 1000 M-1
• Voltage: 120V AC @ 60Hz
• Solenoid Type: Laminated, Pull-Type
• Stroke Range: 1/8" to 3/4"
• Pull Force Range: 16 oz to 80 oz
• Coil Resistance: 88 Ohms
• Seated Current: 0.24 Amps
• Current @ Max Stroke: 1.25 Amps
• Seated Power: 9.5 Watts
• Terminal Type: Solder Lug
• Mounting Hole Spacing: 1 3/8" x 7/8"
• Dimensions: 1 5/8" L x 1 7/16" D x 1 3/16" W
• Coil Insulation: Class A
• Country of Origin: USA
• Compliance: RoHS
Pull Force Values by Stroke
• @ 1/8" Stroke: 192 oz
• @ 1/4" Stroke: 168 oz
• @ 3/8" Stroke: 160 oz
• @ 5/8" Stroke: 184 oz
• @ 3/4" Stroke: 184 oz
• @ 7/8" Stroke: 200 oz
• @ 1" Stroke: 224 oz
• @ 1 1/4" Stroke: 176 oz
Applications
• Pellet stove feed systems
• Small appliance actuation
• Automatic dampers and safety valves
• General mechanical automation requiring compact solenoids
Why Choose the Dormeyer 1000 M-1?
This solenoid combines compact design with robust performance, making it ideal for heating and automation systems where space is limited. Trusted for durability and consistent pull strength, it ensures reliable actuation and long service life in demanding applications.
