Carling Technologies Toggle Switch | 3 Position, SPDT, Screw Terminals, On/Off/On

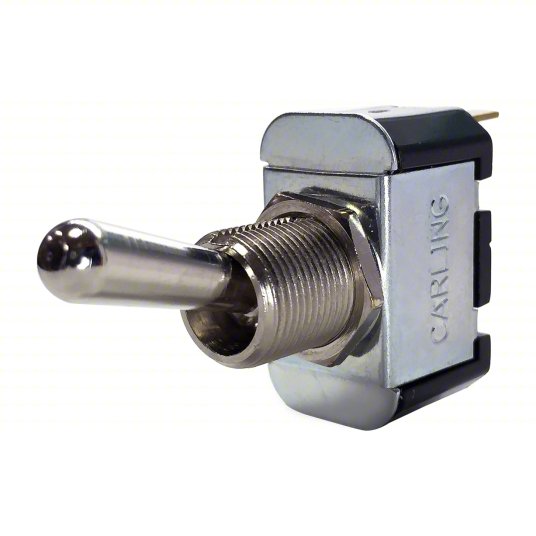

Carling Technologies Toggle Switch – 3 Position, SPDT, Screw Terminals, On/Off/On

Upgrade your panel or equipment interface with this durable Carling Technologies toggle switch. Featuring a 3-position On/Off/On configuration, SPDT contact form, and secure screw terminals, this switch delivers reliable performance in a compact, panel-mountable design.

Key Features:

• 3-Position Toggle (On/Off/On) – Allows versatile circuit control with SPDT functionality
• Screw Terminal Connections – Ensures a secure, easy-to-wire installation
• Durable Metal Actuator – 0.68" silver-finish handle for long-lasting operation
• High Amperage Ratings – Supports up to 15A @ 125V and 10A @ 250V

Specifications:

• Brand: Carling Technologies
• Series: FAC
• Manufacturer Part Number: 2FC54-73
• Contact Form: SPDT (Single-Pole Double-Throw)
• Switch Function: On/Off/On
• Actuator: Metal, 0.68" Length, Silver Finish
• Terminal Type: Screw Terminals (3 connections)
• Panel Mount Hole Diameter: 0.5"
• Stem Diameter/Thread: 0.47", 6-32 NC-2
• Contact Rating: 15A @ 125V AC, 10A @ 250V AC
• Horsepower Rating: 3/4 HP
• Operating Temp Range: 0°F to 150°F
• Overall Dimensions: 2.17" H x 0.63" W x 1.13" D
• Includes: Hex Nut and Ring Nut
• Illumination: Non-Illuminated
• Enclosure Rating: None (Not Sealed, No NEMA/IP Rating)
• Country of Origin: Mexico

Pairs well with: Replacement Electrical Parts

Choose the Carling Technologies toggle switch for dependable control in electrical panels, industrial machines, or equipment enclosures. Its rugged build and trusted ratings make it ideal for a range of general-purpose switching applications.
