BBQ Smoker Tadpole Gasket – 1/2" Bulb x 3/4" Flat - 1 1/4" OA – 1,000°F – Sold by the Foot

Total Hearth BBQ Smoker Tadpole Gasket – 1/2" Bulb x 3/4" Flat x 1-1/4" Overall – 1,000°F Self-Adhesive Fiberglass Grill Gasket – Sold by the Running Foot

Improve the seal on your BBQ smoker, grill, cook chamber, firebox, or access door with this Total Hearth High-Temperature BBQ Smoker Tadpole Gasket. Designed for high-heat applications requiring a compressible seal, this specialty gasket combines an approximately 1/2" fiberglass bulb with a 3/4" flat mounting tail for an overall width of approximately 1-1/4".

Constructed from durable high-temperature fiberglass, this smoker gasket has a service rating up to 1,000°F. The approximately 3/4" flat section features pressure-sensitive adhesive (PSA) backing to help position and secure the gasket during installation.

This tadpole-style gasket is an excellent choice for compatible BBQ smokers, pellet grills, charcoal smokers, offset smokers, vertical smokers, smokehouses, cook chambers, firebox doors, and other high-temperature cooking equipment. A properly fitted gasket can help reduce unwanted smoke and heat leakage around doors and lids, helping your smoker maintain more consistent cooking temperatures.

IMPORTANT – SOLD BY THE RUNNING FOOT:
This BBQ smoker gasket is sold by the individual running foot. Enter the quantity based on the total number of feet required for your grill or smoker.
• Quantity 1 = 1 foot
• Quantity 2 = 2 continuous feet
• Quantity 3 = 3 continuous feet
• Quantity 6 = 6 continuous feet
• Quantity 10 = 10 continuous feet

Whenever possible, multiple feet ordered will be supplied as one continuous length rather than individual 1-foot sections. Measure the complete gasket path around your smoker door, grill lid, firebox, or other sealing surface before ordering. We recommend allowing a small amount of additional material for trimming and final fitting.

Key Features:
• High-Temperature BBQ Smoker Gasket – Designed for compatible grills, smokers, cook chambers, fireboxes, and BBQ equipment
• Sold by the Running Foot – Purchase only the amount required for your particular smoker or grill
• Continuous Length – Multiple feet ordered will be supplied as one continuous length whenever possible
• Tadpole Gasket Design – Combines a compressible fiberglass bulb with a flexible flat mounting tail
• 1/2" Bulb – Compressible sealing section conforms to compatible doors, lids, and mating surfaces
• 3/4" Flat Tail – Provides a wide mounting surface for proper gasket positioning
• 1-1/4" Overall Width – Complete gasket profile measures approximately 1-1/4" overall
• 3/4" PSA Self-Adhesive Backing – Pressure-sensitive adhesive helps hold the gasket in position during installation
• High-Temperature Fiberglass – Designed for demanding BBQ and smoker sealing applications
• 1,000°F Service Rating – Suitable for compatible high-temperature cooking equipment applications
• Helps Reduce Smoke Leakage – A properly fitted gasket can help seal gaps around smoker doors and grill lids
• Helps Maintain Cooking Temperatures – Reducing unwanted air and heat leakage can help improve temperature control
• Flexible Construction – Conforms around compatible straight, curved, and shaped sealing surfaces
• Versatile BBQ Application – Suitable for many custom-built and manufactured smokers requiring a compatible gasket profile

Specifications:
• Product Type: High-temperature BBQ smoker tadpole gasket
• Brand: Total Hearth
• Gasket Style: Tadpole gasket / fiberglass tadpole tape
• Bulb Diameter: Approximately 1/2"
• Flat Tail Width: Approximately 3/4"
• Overall Width: Approximately 1-1/4"
• PSA Width: Approximately 3/4"
• Material: High-temperature fiberglass
• Backing: Pressure-sensitive adhesive (PSA)
• Adhesive Type: Self-adhesive backing
• Temperature Service Rating: Up to 1,000°F
• Length: Sold by the running foot
• Quantity: 1 quantity = 1 running foot
• Application: BBQ grills, smokers, smoker doors, grill lids, cook chambers, fireboxes, access panels, and compatible high-temperature cooking equipment

How to Order:
This Total Hearth BBQ smoker gasket is priced and sold by the running foot. Enter the total number of feet required in the quantity box when ordering.

For example, if your smoker requires 7 feet of gasket, enter a quantity of 7. You will receive approximately 7 continuous feet of gasket whenever possible.

If you are sealing multiple doors, lids, firebox openings, or access panels, measure each gasket path and add the measurements together before determining your order quantity. Allowing a small amount of extra material is recommended for trimming, corners, and final fitting.

Common BBQ & Smoker Applications:
• Offset smokers
• Pellet grills and pellet smokers
• Vertical smokers
• Cabinet smokers
• Charcoal smokers
• Wood-burning smokers
• Competition BBQ smokers
• Custom-built smokers
• Smoker cook chamber doors
• Smoker firebox doors
• BBQ grill lids
• Access doors and cleanout panels
• Smokehouse doors and panels
• Other high-temperature cooking equipment requiring a compatible tadpole gasket

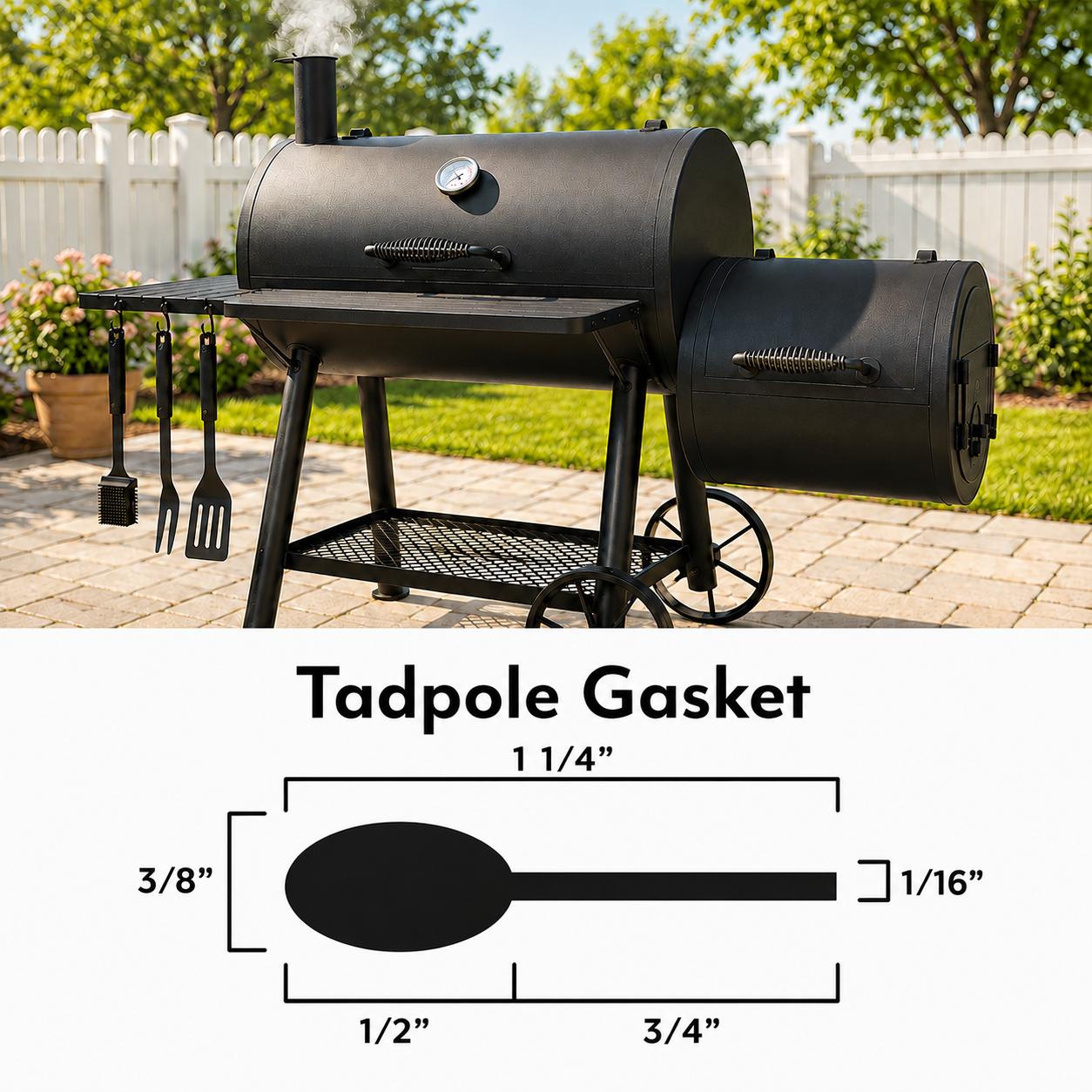

About the Tadpole Gasket Design:
Unlike conventional flat BBQ gasket tape or round rope gasket, a tadpole gasket combines a compressible sealing bulb with a flat mounting tail. This design provides both a compressible sealing surface and a convenient mounting area.

On this Total Hearth BBQ gasket, the approximately 1/2" bulb provides the primary compressible sealing section while the approximately 3/4" flat tail provides the mounting surface. Together, the complete profile measures approximately 1-1/4" overall.

This design can be particularly useful on smoker doors, grill lids, and other BBQ equipment where a compressible bulb is needed to fill a gap while the flat section provides a surface for mounting the gasket.

How Can a Smoker Gasket Improve BBQ Performance?
Gaps around smoker doors, cook chambers, fireboxes, and grill lids can allow heat and smoke to escape while also allowing uncontrolled outside air to enter the cooking chamber. This can make maintaining consistent cooking temperatures more difficult.

A properly sized and installed high-temperature gasket can help reduce smoke leakage, minimize unwanted airflow, retain heat, and improve temperature control. This can be especially useful during long, low-and-slow cooks where maintaining a stable cooking environment is important.

Universal BBQ & Smoker Fitment Note:
This is a generic Total Hearth BBQ and smoker gasket and is not manufactured specifically for one grill or smoker brand. Compatibility should be determined by comparing the gasket profile and measurements with your existing gasket or the sealing surface on your equipment.

Before ordering, verify the approximately 1/2" bulb diameter, 3/4" flat mounting tail, 1-1/4" overall width, 3/4" PSA backing, required compression, and total length. Not every smoker or grill uses the same gasket profile.

If your BBQ manufacturer specifies a particular replacement gasket, compare the original gasket dimensions and profile before substituting a universal gasket. Dimensions alone should not be used as the only method of determining compatibility.

When Should a BBQ Smoker Gasket Be Replaced?
Repeated heating, cooling, compression, grease exposure, smoke, and normal grill use can eventually cause gasket material to deteriorate. Consider replacing the gasket if you notice:
• Smoke escaping excessively around the door or lid
• Visible gaps between mating surfaces
• Flattened or excessively compressed gasket material
• Frayed or torn fiberglass
• Hardened or brittle gasket material
• Sections pulling away from the mounting surface
• Missing or damaged gasket sections
• Difficulty maintaining consistent smoker temperatures
• Loss of the original gasket profile

PSA Self-Adhesive Backing:
The approximately 3/4" flat mounting section features pressure-sensitive adhesive backing to help position and secure the gasket during installation.

For best adhesion, remove old gasket material, adhesive residue, grease, soot, smoke residue, dirt, and debris from the mounting surface. The installation area should be clean and completely dry before applying the new gasket.

The PSA backing is designed primarily to assist with gasket positioning and installation. Depending on the smoker design, operating conditions, and mounting surface, additional mechanical retention or high-temperature adhesive may be required. Follow the equipment manufacturer's recommendations when applicable.

Installation Tips:
• Allow the grill or smoker to cool completely before beginning installation
• Remove the existing gasket and loose gasket material
• Scrape away old adhesive and residue without damaging the mounting surface
• Remove grease, soot, smoke residue, dirt, and debris
• Make sure the installation surface is clean and completely dry
• Measure the complete gasket path before cutting the new gasket
• Test-fit the gasket before removing the PSA protective backing
• Confirm the correct orientation of the 1/2" bulb and 3/4" flat tail
• Remove the adhesive backing gradually while pressing the flat section firmly into position
• Avoid stretching the fiberglass gasket during installation
• Work gradually around curves and corners to maintain a consistent gasket profile
• Butt gasket ends together neatly rather than overlapping them unless your equipment manufacturer specifies otherwise
• Trim excess gasket only after confirming the final length and positioning
• Follow your grill or smoker manufacturer's installation instructions when applicable

Why Choose Total Hearth BBQ Smoker Tadpole Gasket?
The Total Hearth 1/2" Bulb x 3/4" Flat BBQ Smoker Tadpole Gasket provides a versatile sealing solution for compatible grills, smokers, cook chambers, fireboxes, doors, and lids. Its specialized profile combines a compressible 1/2" bulb with a 3/4" flat mounting tail and approximately 1-1/4" overall width, while the high-temperature fiberglass construction and PSA backing provide the flexibility and convenience needed for many BBQ gasket replacement projects.

Because this gasket is sold by the running foot, you can purchase the amount needed for your particular grill or smoker without paying for unnecessary material.

Help reduce unwanted smoke and heat loss and restore the seal on your BBQ equipment with the Total Hearth BBQ Smoker Tadpole Gasket – 1/2" Bulb x 3/4" Flat x 1-1/4" Overall – 1,000°F – Sold by the Running Foot.
