Firebrick Retainer | Steel Brick Holder for Ashley, King & US Stove Circulator Units | Part #40132 / 17350

Firebrick Retainer – 40132 / 17350 | Steel Brick Holder for Ashley, King & US Stove Circulator Units | OEM Replacement

US Stove Top Fire Brick Retainer Clip for 2827, 2847, 2927, 2931, 2937, 2941, 3027, 3031, 3041, CAC, EC95, BEC95, 23 in.

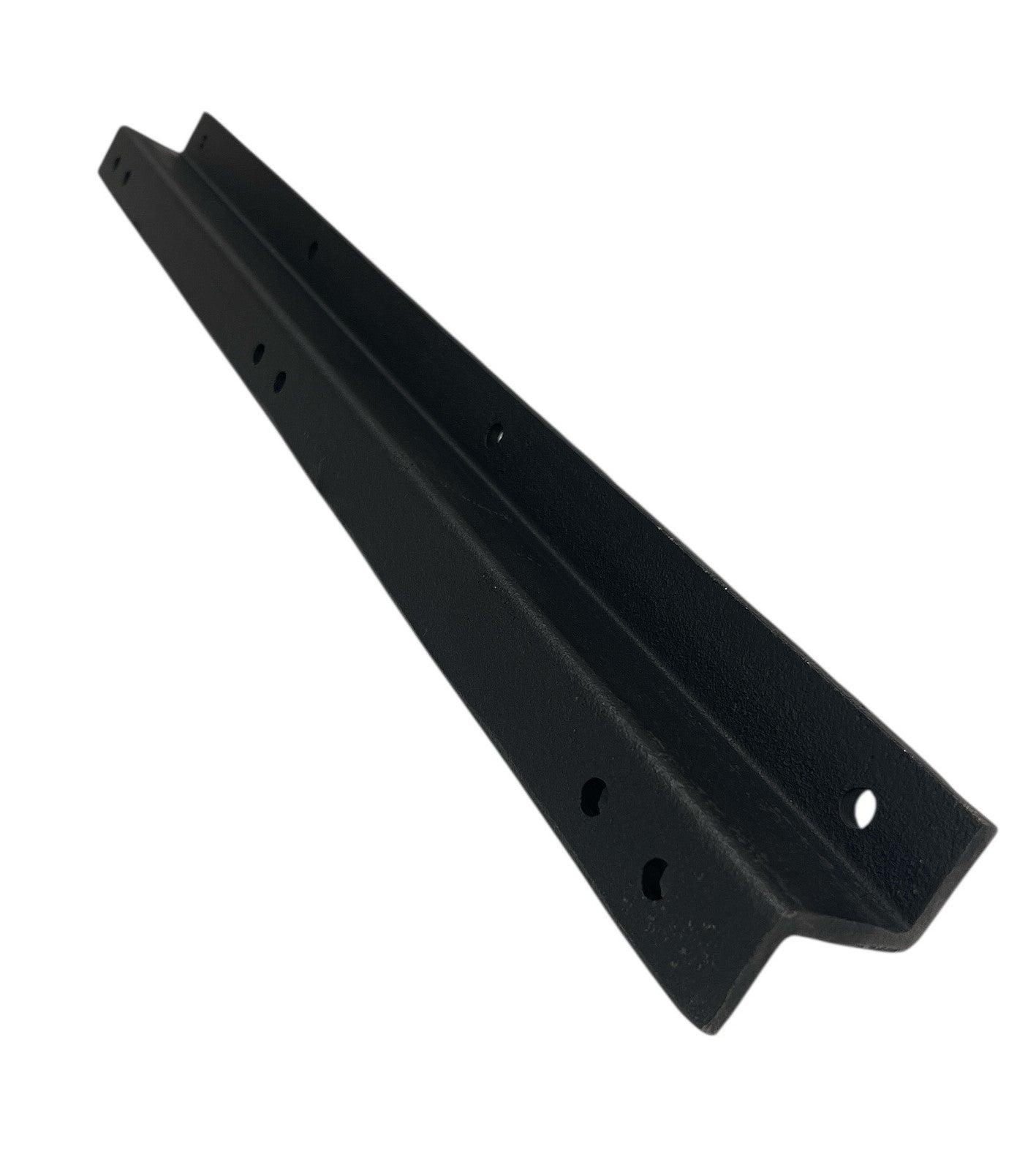

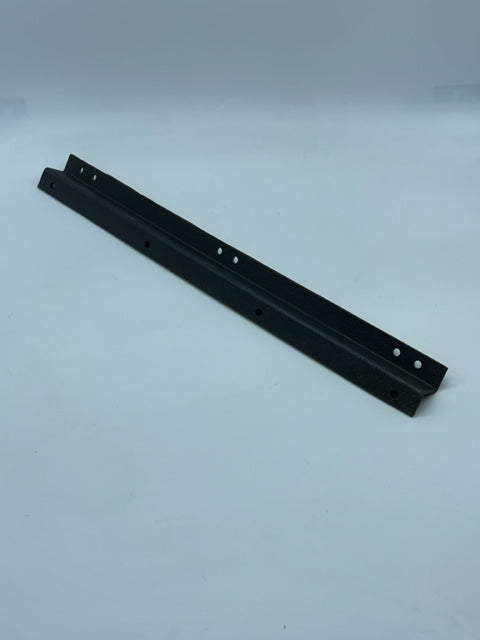

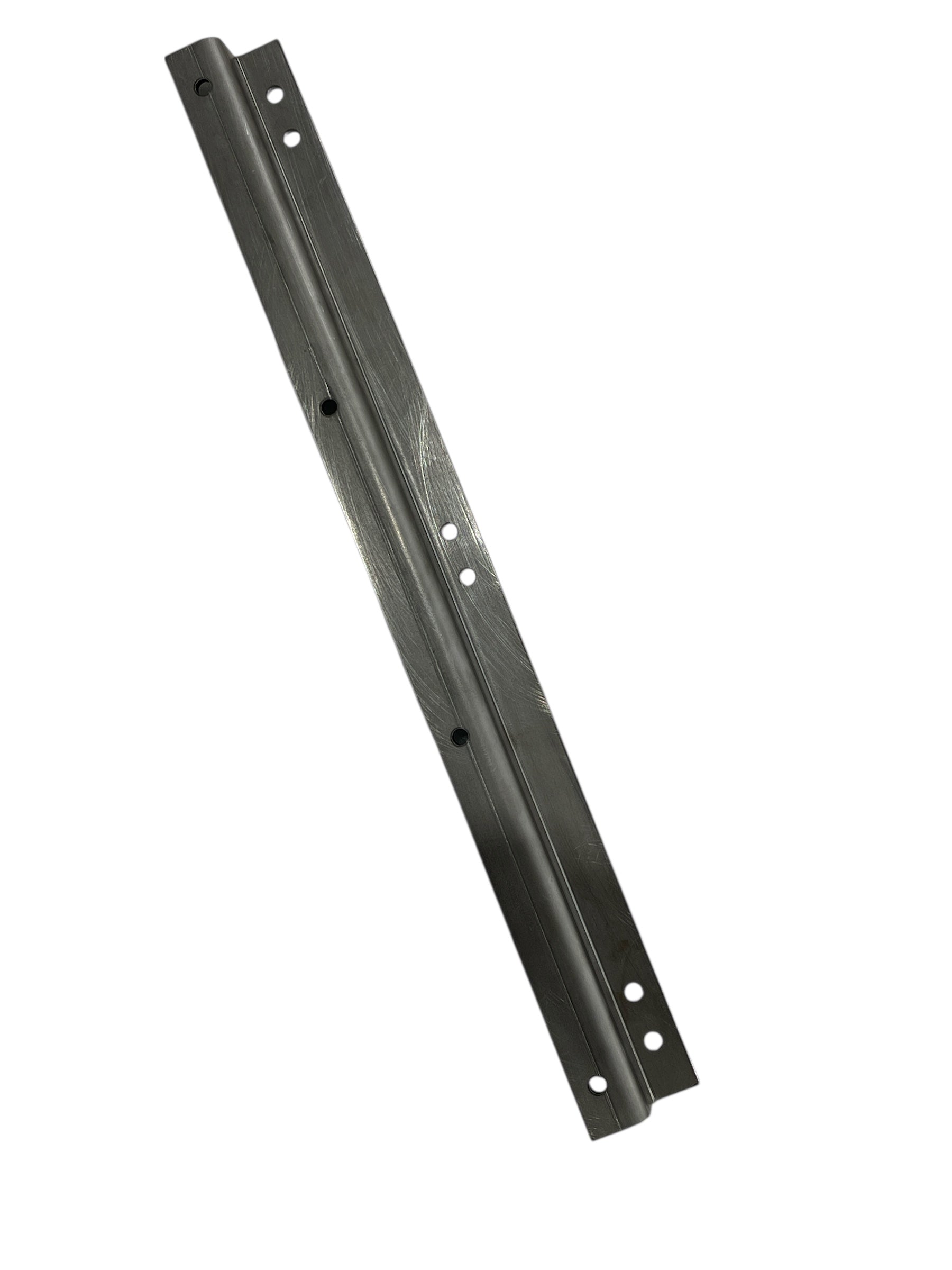

Ensure the safe and efficient operation of your wood or coal circulator stove with the Firebrick Retainer (40132 / 17350). This heavy-duty Steel firebrick holder is designed to securely keep firebricks in place inside the firebox, protecting your stove’s structure while supporting high-efficiency combustion. As an OEM style replacement part, it fits a wide range of Ashley, King, and US Stove models, including popular Wondercoal and Wonderwood series units.

Whether you're upgrading an aging unit or replacing a damaged retainer, this Heavy Steel component offers the strength and compatibility needed for lasting performance.

Key Features:

• OEM Quality Replacement Part – Replaces US Stove 40132, 17350, and additional part numbers
• Heavy-Duty Steel – Built to withstand high heat, thermal cycling, and everyday use
• Supports Firebrick Integrity – Keeps bricks aligned to preserve firebox safety and efficiency
• Wide Model Compatibility – Used in many Ashley, King, and US Stove circulator models
• Sold Individually – One retainer per order

Specifications:

• Part Numbers: 40132, 17350
• Also Replaces: US40132, 69226, AY024811R, K6114, 006114R
• Material: Steel

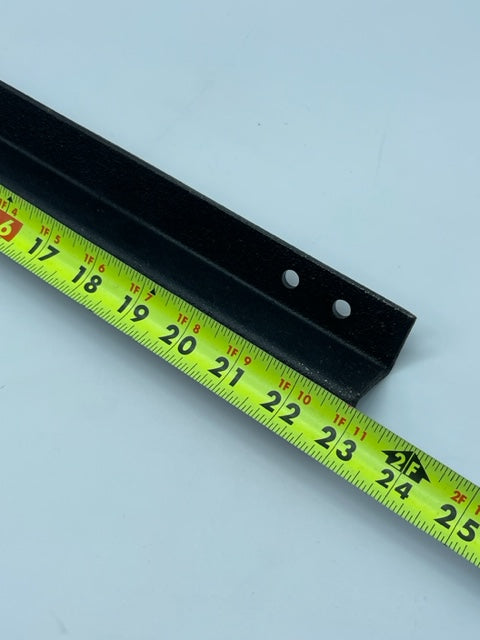

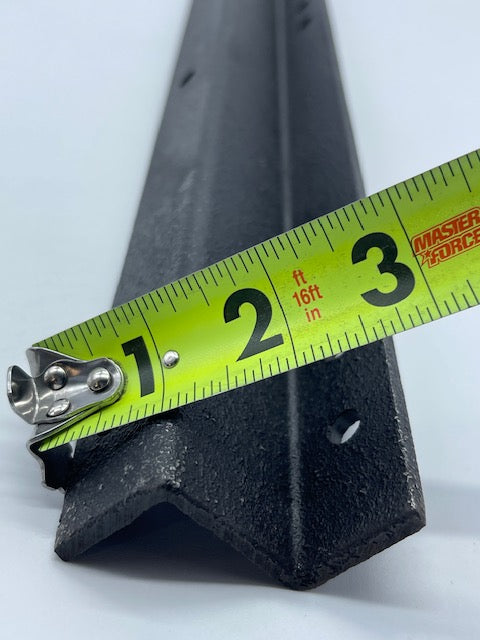

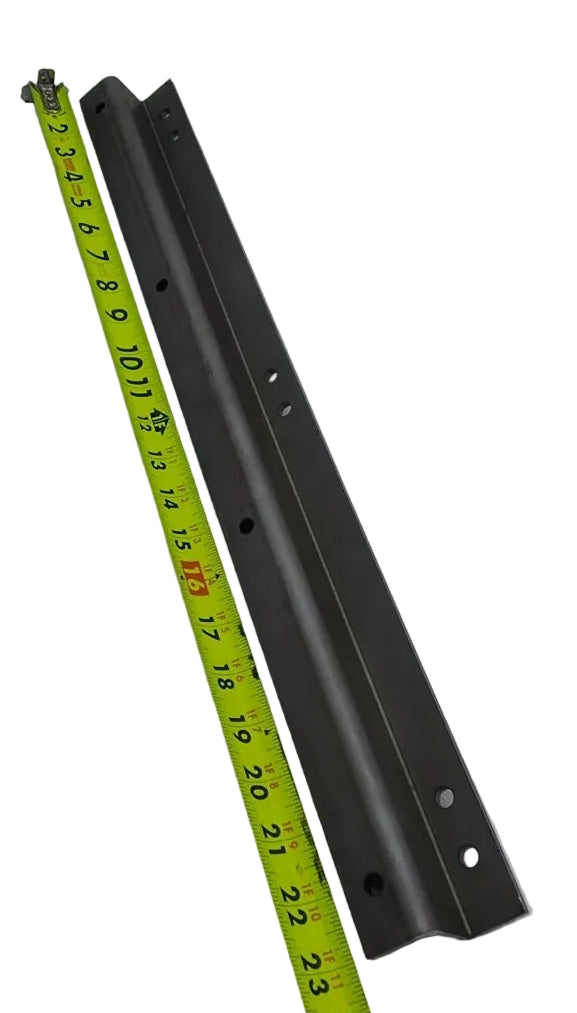

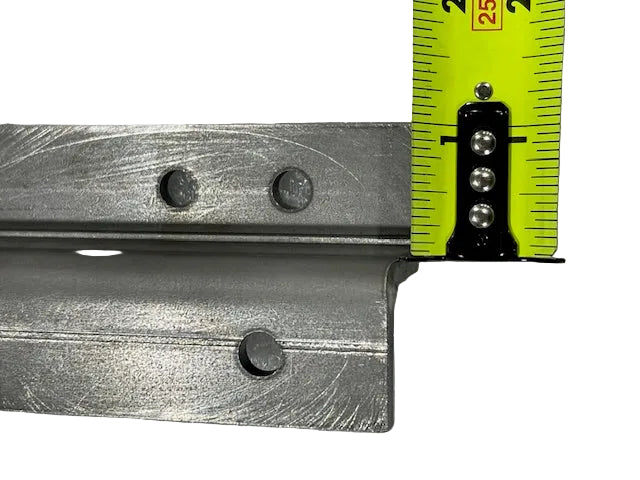

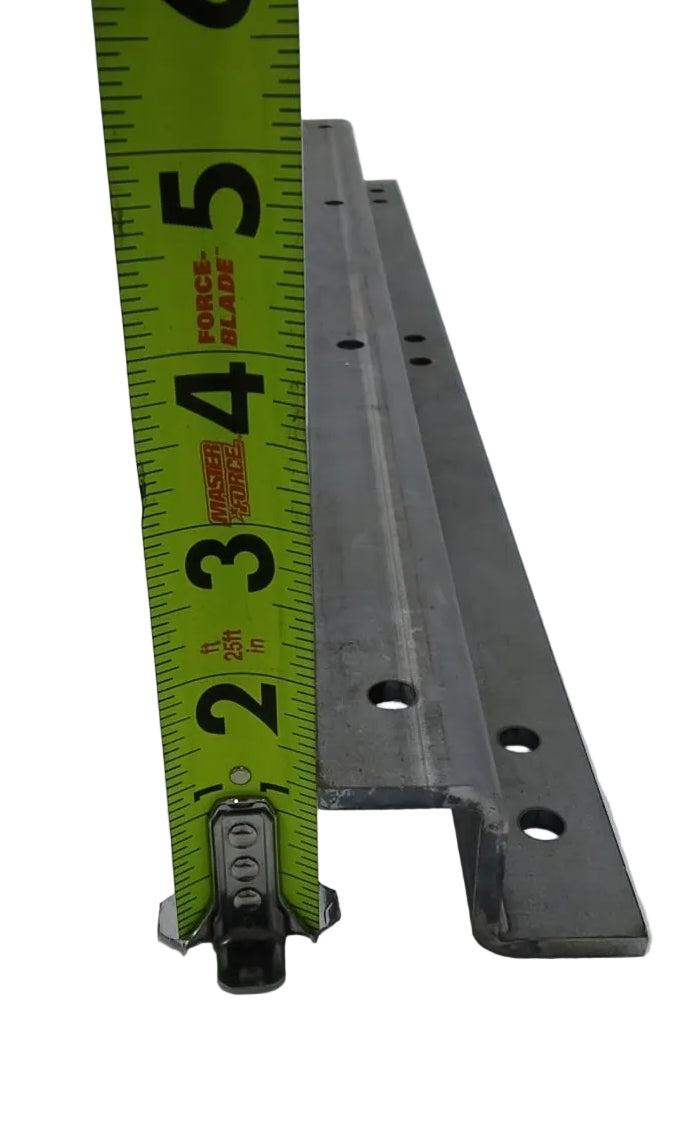

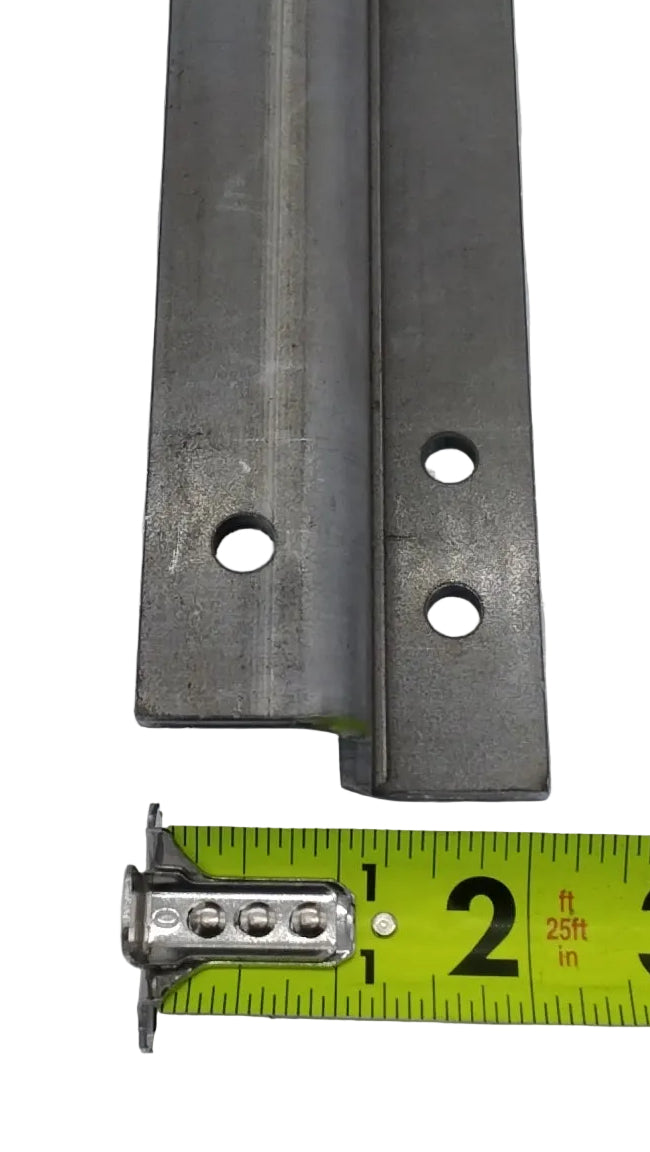

• Dimensions: 23" L x 2-1/8" W x 1-1/2" H
• Application: Firebrick retainer for wood and coal stove circulators and furnaces
• Quantity: Sold individually

Compatible Stove Brands & Models:

Ashley Wood/Coal Units:

• 7150B, BCAC, BEC95, CAC, CW85, EC95

King Wood/Coal Units:

• 9900B, 8802B, KWC80, 8801B, KCC200, KCC90, 7800C

US Stove Wood/Coal Circulators & Furnaces:

• B2350 Wonderluxe
• 2827, 2847, 2927, 2941
• 2600, 2601, 2607, 2627, M2627
• 2727, 3027, 4027
• 1600EF
• Wondercoal and Wonderwood Series

Additional Compatible Models:

• Hot Blast 1303
• Vogelzang VG900 Wonder Hearth Circulator

May also fit additional stove models. Always verify dimensions and part numbers with your stove’s owner’s manual before purchase.

Pairs well with: Ashley Stove Products  , King Stove Parts ,  US Stove Company Parts and Vogelzang Parts

Why Choose the 40132 / 17350 Steel Brick Retainer?

Cracked or missing retainers can compromise firebrick placement and reduce stove performance or safety. This OEM-quality cast iron part restores the structural integrity of your firebox and ensures the firebrick stays securely in place—delivering reliable protection through years of high-heat use.

Installation Instructions:

Replacing the brick retainer typically requires removing the stove's outer cabinet.

Preparation: Ensure the stove is completely cool and remove the exhaust pipe from the flue collar.

Cabinet Removal: Disconnect the thermostat chain and remove the bolts securing the cabinet to the stove. Lift the cabinet off to access the retainer.

Retainer Removal: Remove the three nuts and bolts holding the old retainer to the firebox. Pull the retainer forward and out.

New Installation: Insert the new retainer with the single-hole ledge facing down and the six-hole ledge facing upward towards the firebox side. Align the holes and tighten the three nuts and bolts securely.

Reassembly: Place the cabinet back over the firebox, reinstall the cabinet bolts, and reattach the thermostat chain.

Available Resources

Videos: Installation videos for this specific part can be found on Amazon Live and YouTube.

Manuals: Refer to your specific stove's owner's manual for detailed firebox diagrams. General US Stove manuals are often available on the US Stove Company website.
