Ashley Stove Grate (17217) – Cast Iron Square Replacement Grate for Ashley & King Stoves | 10" x 9-3/4"

Ashley Stove Grate (17217) – Cast Iron Square Replacement Grate for Ashley & King Stoves (10" x 9-3/4")

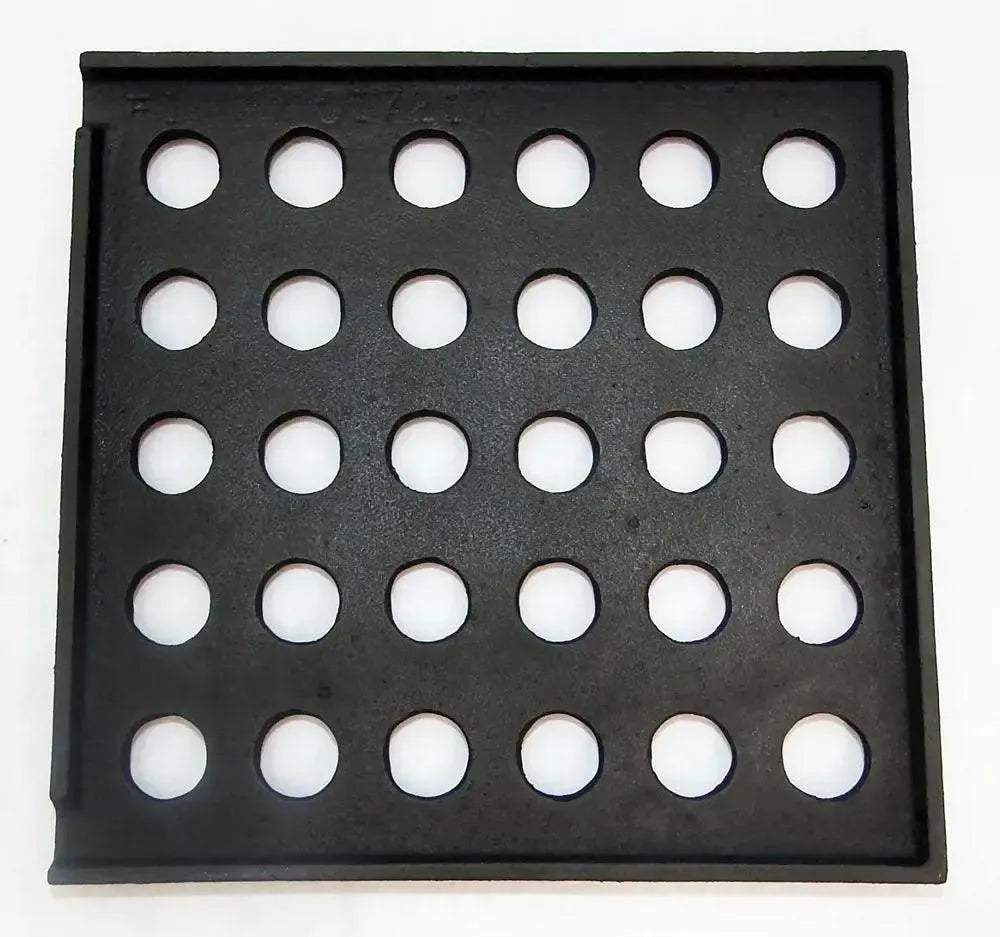

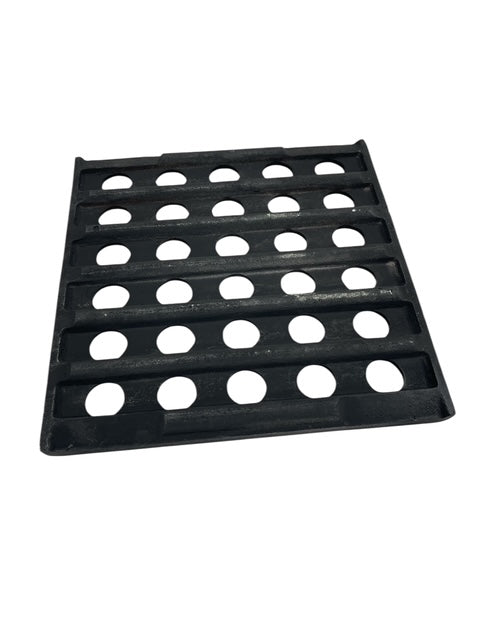

Keep your wood or coal stove running efficiently with the Ashley Grate (17217). This square replacement grate is constructed from black cast iron and designed to fit a variety of Ashley and King stoves. Its compact size makes it a versatile solution for restoring airflow and supporting fuel inside the firebox.

Key Features:

• Heavy-Duty Cast Iron – Durable and heat-resistant for long-term performance
• Universal Square Design – Compatible with Ashley, King, and other stoves based on size
• Improves Airflow – Allows combustion air to circulate from below for cleaner burns
• Easy Installation – Drop-in replacement for worn or cracked grates

Specifications:

• Part Number: 17217

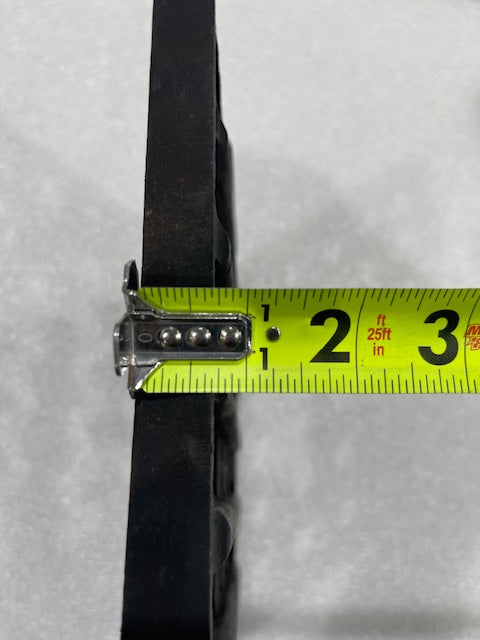

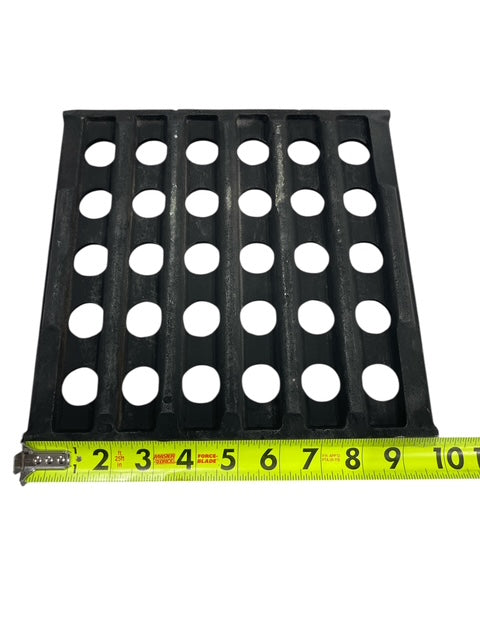

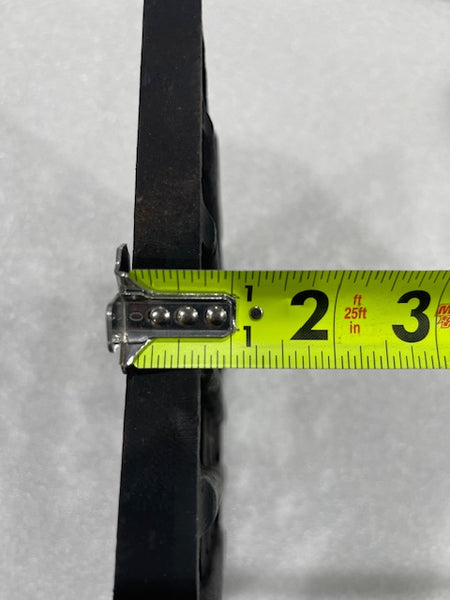

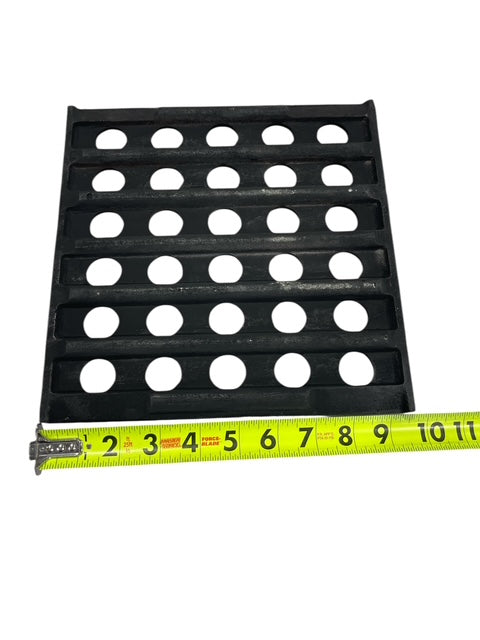

• Dimensions: 10" L x 9-3/4" W
• Material: Black cast iron
• Style: Square fire grate
• Application: Wood and coal burning stoves
• Sold: Individually

Compatible Stove Brands and Models:
• Ashley Stoves: C60G, C85, Furnace F8100, Furnace F8200
• King Stoves: KF2550C
• Other wood or coal stoves with compatible grate dimensions and support layout

May fit additional models based on size and configuration. Always confirm grate dimensions and firebox support style using your stove’s owner’s manual before ordering.

Pairs Well With: Ashley Stove Parts, ash pans, replacement fire grates, firebrick, and wood stove maintenance accessories

Why Choose the Ashley 17217 Cast Iron Stove Grate?

A damaged or worn stove grate can restrict airflow, cause uneven burning, and reduce overall stove efficiency. Replacing it with this cast iron square stove grate restores proper air circulation beneath the fuel bed, improves combustion, and helps protect the firebox floor. Designed for durability and dependable performance, this grate is an essential replacement part for keeping your stove operating safely and efficiently.

Installation Instructions:

Allow the stove to cool completely before servicing. Make sure all embers are extinguished and remove any remaining ash from the firebox.

Open the stove door and remove any remaining fuel. Lift out the old grate from the firebox. If the grate is stuck due to ash buildup, gently rock it side to side while lifting.

Clean the firebox floor and grate support ledges to ensure proper seating of the new grate. Inspect supports for damage or warping.

Place the new square cast iron grate into the firebox, ensuring it sits flat and evenly on the support rails or floor. The grate should not rock or bind once installed.

Reload fuel and resume normal stove operation.

Installation tip: Proper airflow depends on the grate sitting flat and unobstructed. Never operate the stove with a cracked or broken grate, as this can damage the firebox.

Helpful Installation Videos:

Wood stove and fireplace grate replacement overview:
https://www.youtube.com/watch?v=VgqnKj-Onog

This video demonstrates typical fire grate removal and installation. While it may not reference this exact part number, the process is the same for most square cast iron stove grates.

Replace your damaged or deteriorated grate with this rugged cast iron solution to restore your stove’s functionality.
