Carling Technologies Toggle Switch | 3 Position, SPDT, On/Off/On, Quick Connect Tabs | Model 2FC53-73-TABS

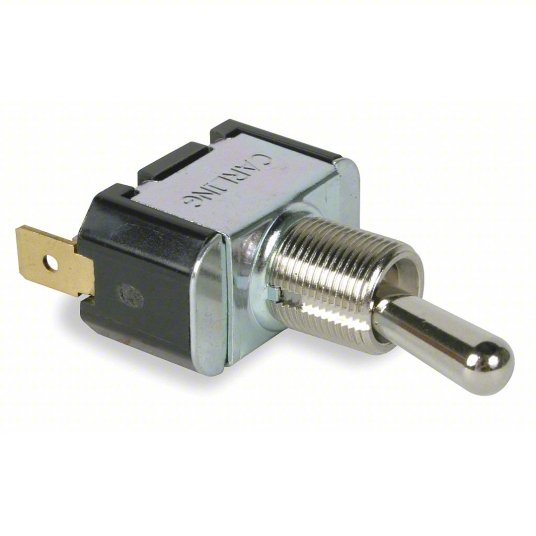

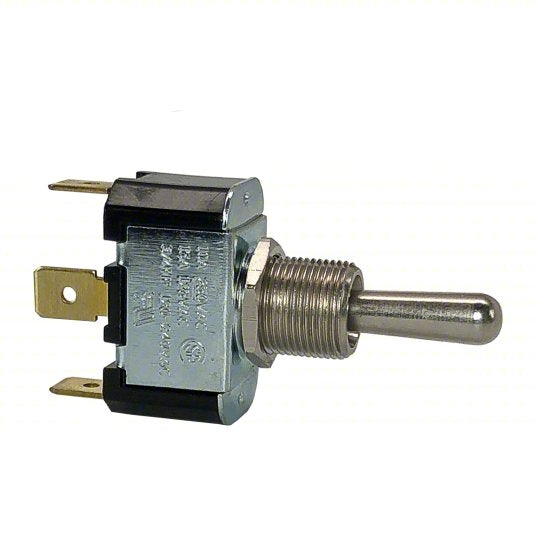

Carling Technologies Toggle Switch – 3 Position, SPDT, On/Off/On, Quick Connect Tabs (Model 2FC53-73-TABS)

Streamline circuit control in panels and enclosures with the Carling Technologies 2FC53-73-TABS toggle switch. This 3-position On/Off/On SPDT switch features fast Quick Connect tab terminals and a sturdy metal actuator, offering reliable operation and easy installation.

Key Features:

• On/Off/On Function – Provides flexible control for single-pole double-throw applications
• Quick Connect Tab Terminals – Speed up installation with simple push-on wiring
• Durable Metal Actuator – 0.68" silver-finished toggle for long service life
• High Load Capacity – Supports up to 15A @ 125V and 10A @ 250V AC

Specifications:

• Brand: Carling Technologies
• Series: FAC
• Manufacturer Part Number: 2FC53-73-TABS
• Item Number: 4X848
• Switch Function: On/Off/On
• Contact Form: SPDT
• Number of Positions: 3
• Number of Connections: 3
• Terminal Type: Quick Connect Tabs
• Contact Rating: 15A @ 125V AC, 10A @ 250V AC
• Horsepower Rating: 3/4 HP
• Actuator Material: Metal
• Actuator Length: 0.68"
• Panel Mount Hole Diameter: 0.5"
• Stem Diameter: 0.47"
• Stem Thread Size: 6-32 NC-2
• Operating Temperature Range: 0°F to 150°F
• Overall Dimensions: 2.17" H x 0.63" W x 1.13" D
• Includes: Hex Nut and Ring Nut
• Illumination: Non-Illuminated
• IP/NEMA Rating: Not Sealed / No Enclosure
• Country of Origin: Mexico

Pairs well with: Replacement Electrical Parts

The Carling 2FC53-73-TABS toggle switch is ideal for control panels, enclosures, and equipment requiring dependable SPDT switching. With its fast-connect terminals and rugged build, it's a go-to solution for commercial and industrial applications.
