6-Volt Fireplace Battery Pack - 2166-323 / SRV2166-323

6-Volt Fireplace Battery Pack - 2166-323 / SRV2166-323

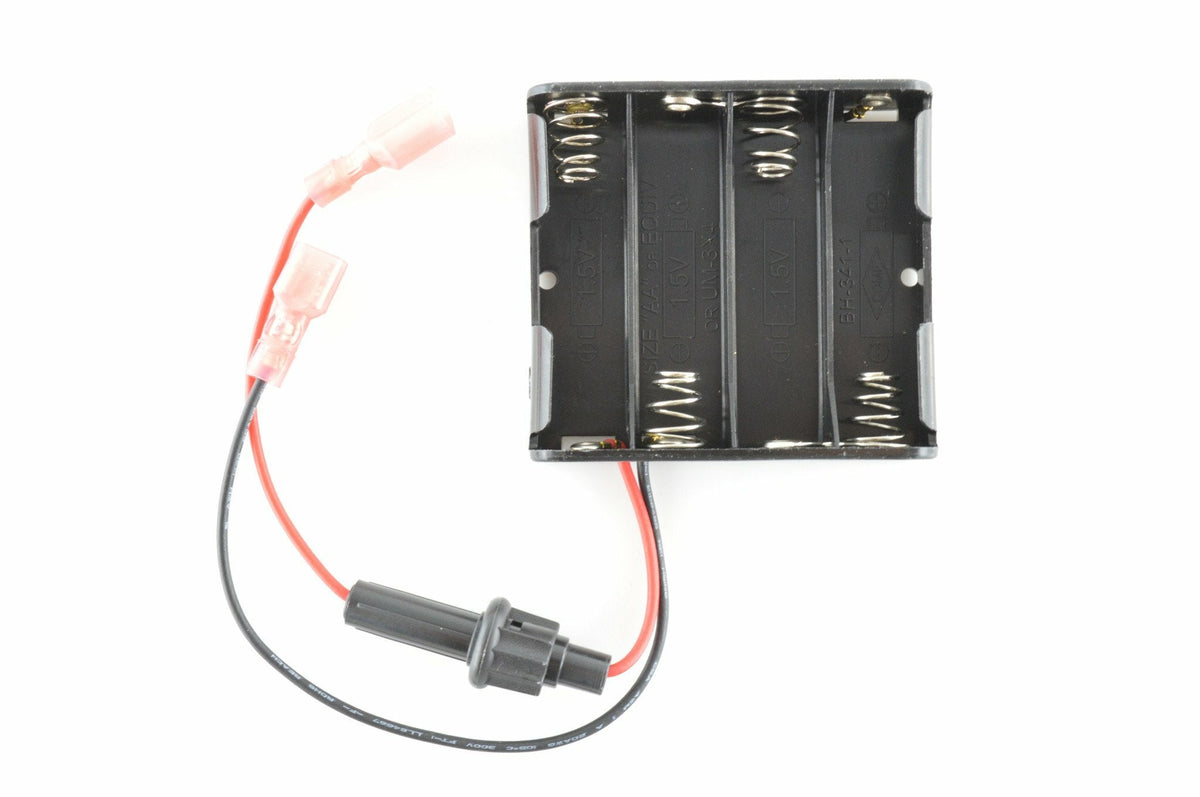

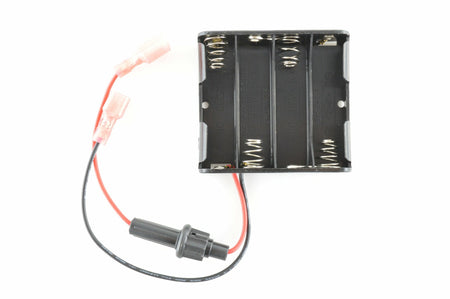

This four-AA battery holder provides a nominal 6-volt power source for compatible Dexen fireplace controls, including systems using the 2166-307 IPI 50 black module. The pack includes attached red and black leads, insulated terminal connections and an inline fuse-holder assembly. It is a battery holder and lead assembly, not a set of batteries or a charger.

Key Features

• Holds four 1.5 V AA batteries for nominal 6 V output.
• For compatible Dexen 6 V fireplace ignition systems.

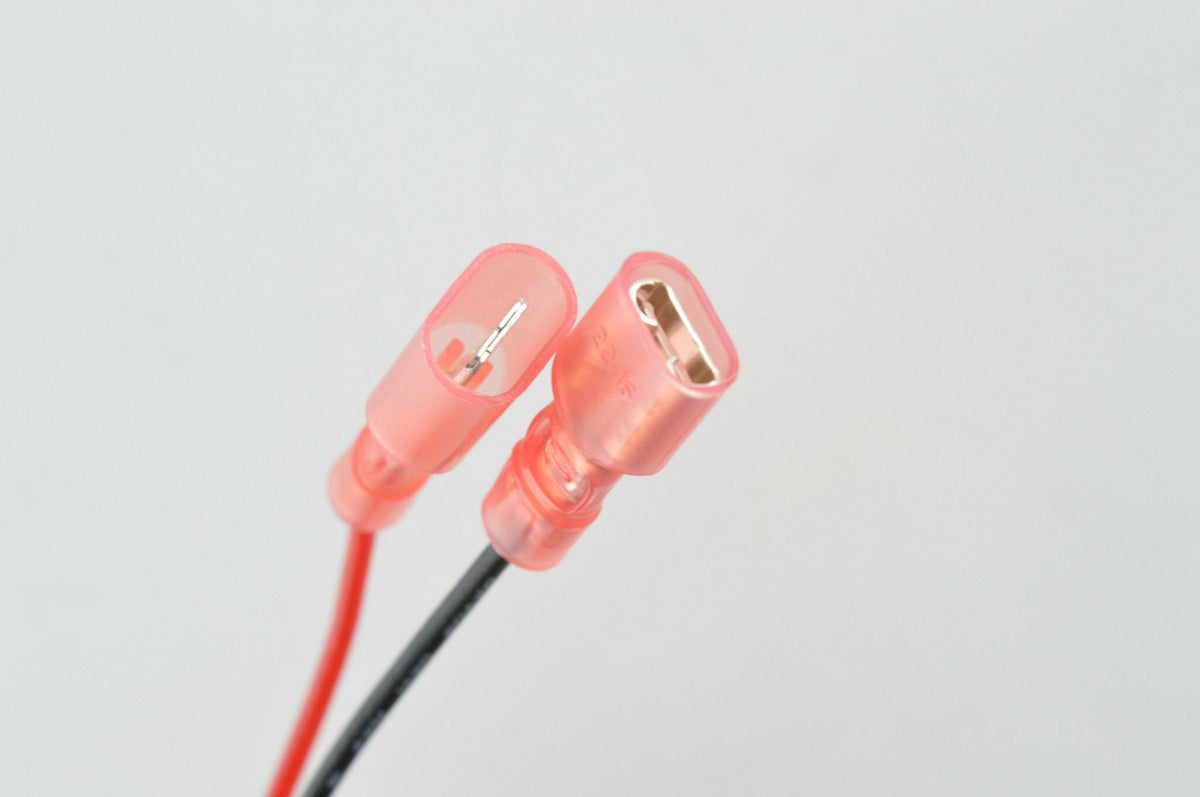

• Attached red and black leads with insulated terminal connectors.
• Inline fuse-holder assembly on the battery lead.
• Cross-references 2166-323 / SRV2166-323; not for Dexen 3 V systems.

Specifications

• Reference part: 2166-323 / SRV2166-323
• Output with correct batteries: 6 V nominal
• Battery size and quantity: Four AA 1.5 V cells, not included
• Control-system application: Compatible Dexen 6 V systems, including 2166-307 IPI 50 black-module applications
• Lead arrangement: Red and black leads; inline fuse holder
• Excluded systems: Dexen 3 V systems

Compatibility

Match the required 6 V supply, terminal style and fuse specification to the appliance. The cross-reference numbers below are not permission to interchange every battery-pack revision. In particular, SRV2326-134 applications can have different fuse requirements; confirm the complete pack specification before using this part in an IFT appliance.

Cross Reference

• Enviro: 50-4156
• Heat & Glo: 2166-323 / SRV2166-323 / SRV2326-134 (confirm fuse and connection requirements)
• Heatilator: 2166-323 / SRV2166-323 / SRV2326-134 (confirm fuse and connection requirements)
• Lexington Forge: IPIBK
• Majestic: IPIBK / 2166-323 / SRV2166-323
• Monessen: IPIBK
• Quadra-Fire: 2166-323 / SRV2166-323 / SRV2326-134 (confirm fuse and connection requirements)
• Vermont Castings: IPIBK

Fireplace Models

These are selected compatible applications, not a universal fit list. Match the appliance model, fuel, serial number and original component before ordering.

• Heat & Glo: TIARAP-BK-IPI, TIARAP-BR-IPI, TIARAP-CES-IPI. TIARAP-IPI generation beginning June 2014; verify the unit calls for 2166-323, not a later revision.
• Heat & Glo: ESCAPE-I30-F. Only units manufactured before May 18, 2016. Later units use a different wire-harness/battery assembly.
• Heat & Glo: XLR-N-CE, XLR-PB-CE. CE models beginning March 2010; XLR-PB-CE production ended May 2015. Requires SRV2166-323 configuration.

What's in the Box

One four-AA battery holder with attached red/black leads, insulated terminals and inline fuse-holder assembly. AA batteries and the ignition control module are not included.

Important Note

Do not connect this 6 V pack to a Dexen 3 V system. Install batteries with the marked polarity and follow the appliance instructions for battery use and storage. Have the correct fuse rating and battery-pack revision confirmed before installation; do not bypass the fuse or increase its rating to resolve a fault.

Why Choose This Part?

A compact battery-holder and lead assembly for restoring the specified 6 V supply in a compatible fireplace without replacing the ignition module.
