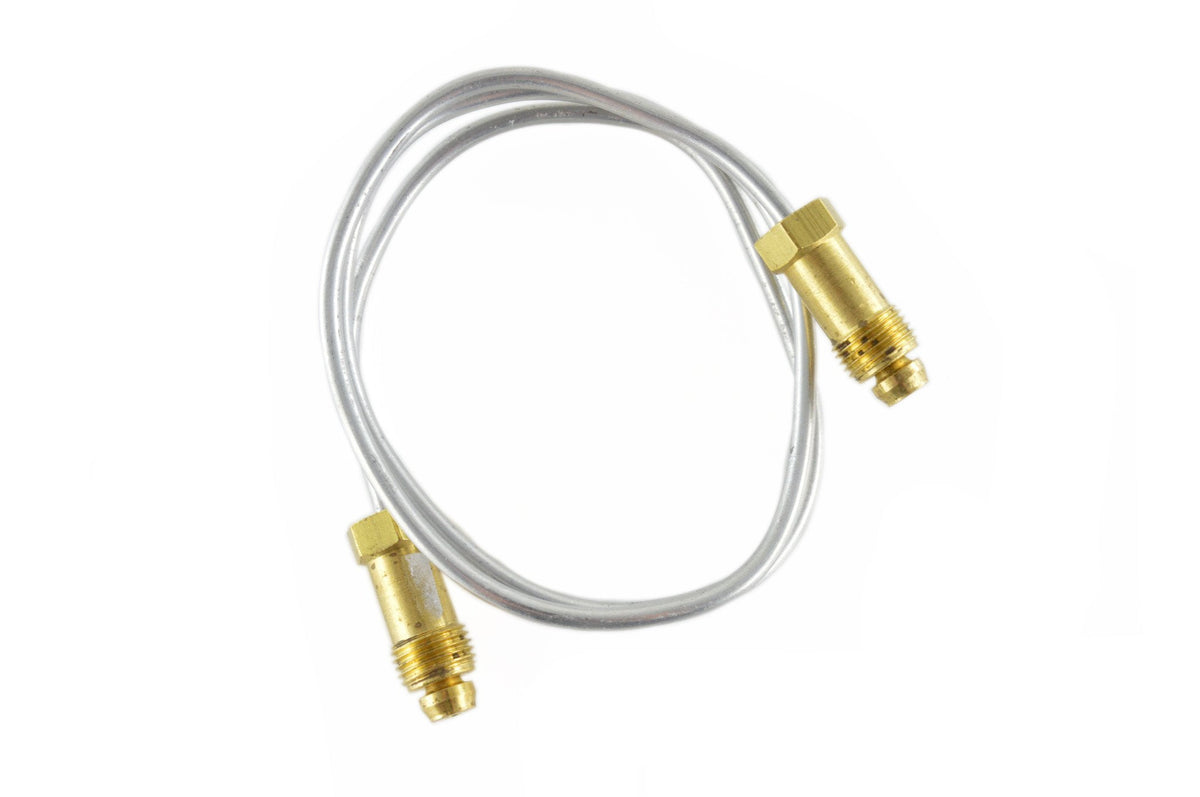

4021-193 24-Inch Pilot Tube with Male Fittings

Replace the pilot gas-supply tube in a matching fireplace with the 4021-193 24-inch tube assembly. Both ends use male fittings of the same size; verify the existing connections and the appliance parts list before installation.

Key Features

  • 24-inch replacement pilot-tube assembly.
  • Male fittings are fitted at both ends.
  • Both end connections are the same size.
  • Catalog part 4021-193 is identified in Heatilator Novus service documentation.
  • Supplied as a separate tube assembly for repairs that do not require a complete pilot.

Specifications

  • Manufacturer service part number: 4021-193
  • Cross-reference: SRV485-301
  • Length: 24 inches

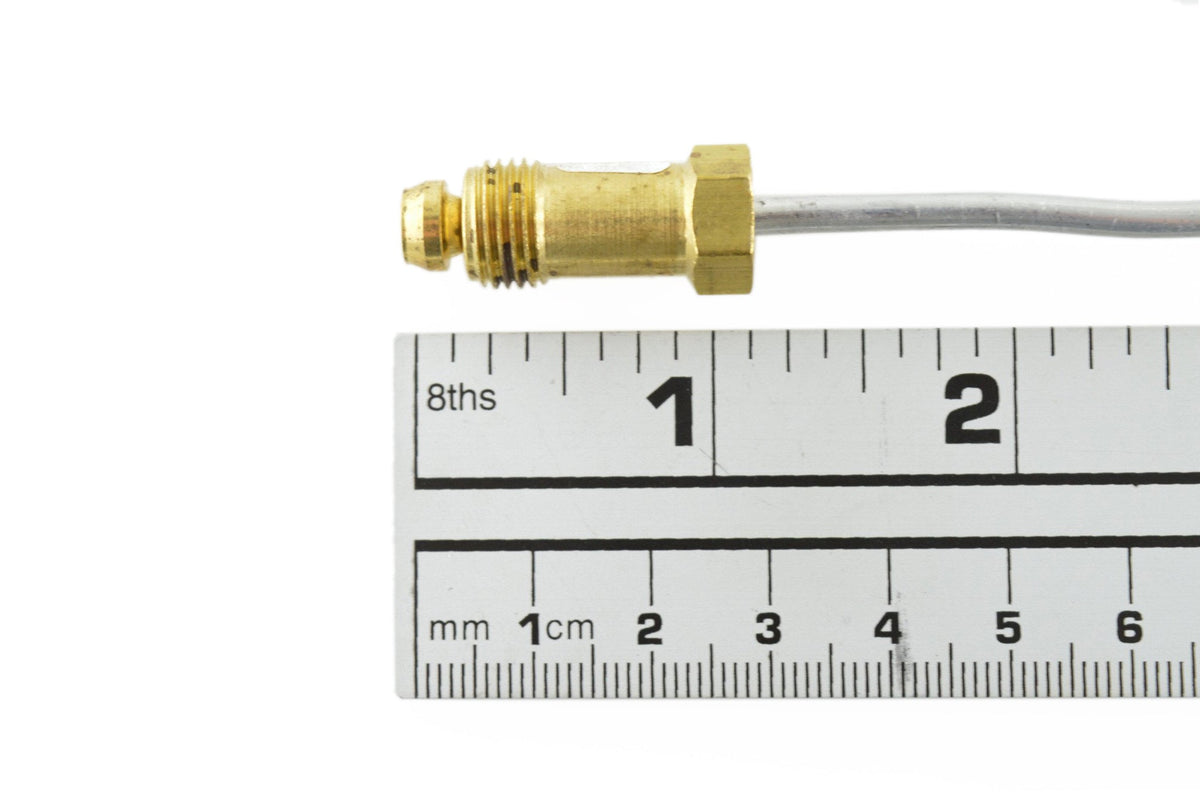

  • End configuration: Male-to-male, matching size at both ends
  • Component: Pilot gas-supply tube assembly

What's in the Box

  • One 24-inch pilot tube with two end fittings

Compatibility

For appliances that specify 4021-193 or the listed SRV485-301 pilot-tube application. Match tube length, connection type and routing. This is not a complete pilot assembly and is not a generic substitute for differently threaded tubing.

Cross Reference

  • 4021-193
  • SRV485-301

Fireplace Models

  • Heatilator: ND3630, ND3630L, ND3630I, ND3630IL, ND3933, ND3933L, ND3933I, ND3933IL, ND4236, ND4236L, ND4236I, ND4236IL, ND4842, ND4842L, ND4842I, ND4842IL. Matching Novus configurations specifying 24-inch pilot tube 4021-193. Verify the appliance serial and current parts list.
  • Quadra-Fire: QVI30S. SRV485-301 pilot-tube configuration, production August 2007–September 2010; confirm the original fittings.

Important Note

This is a special-order item. Confirm availability and lead time before ordering. Gas-path service must be performed by a qualified technician. Shut off the gas and follow the appliance service procedure, including the required leak test after installation. Do not force incompatible threads or substitute tubing based on length alone. Thread dimensions are not verified.

Why Choose This Part?

The defined 24-inch length and matching male end fittings make it straightforward to compare the replacement against the original tube and the specified service part.
