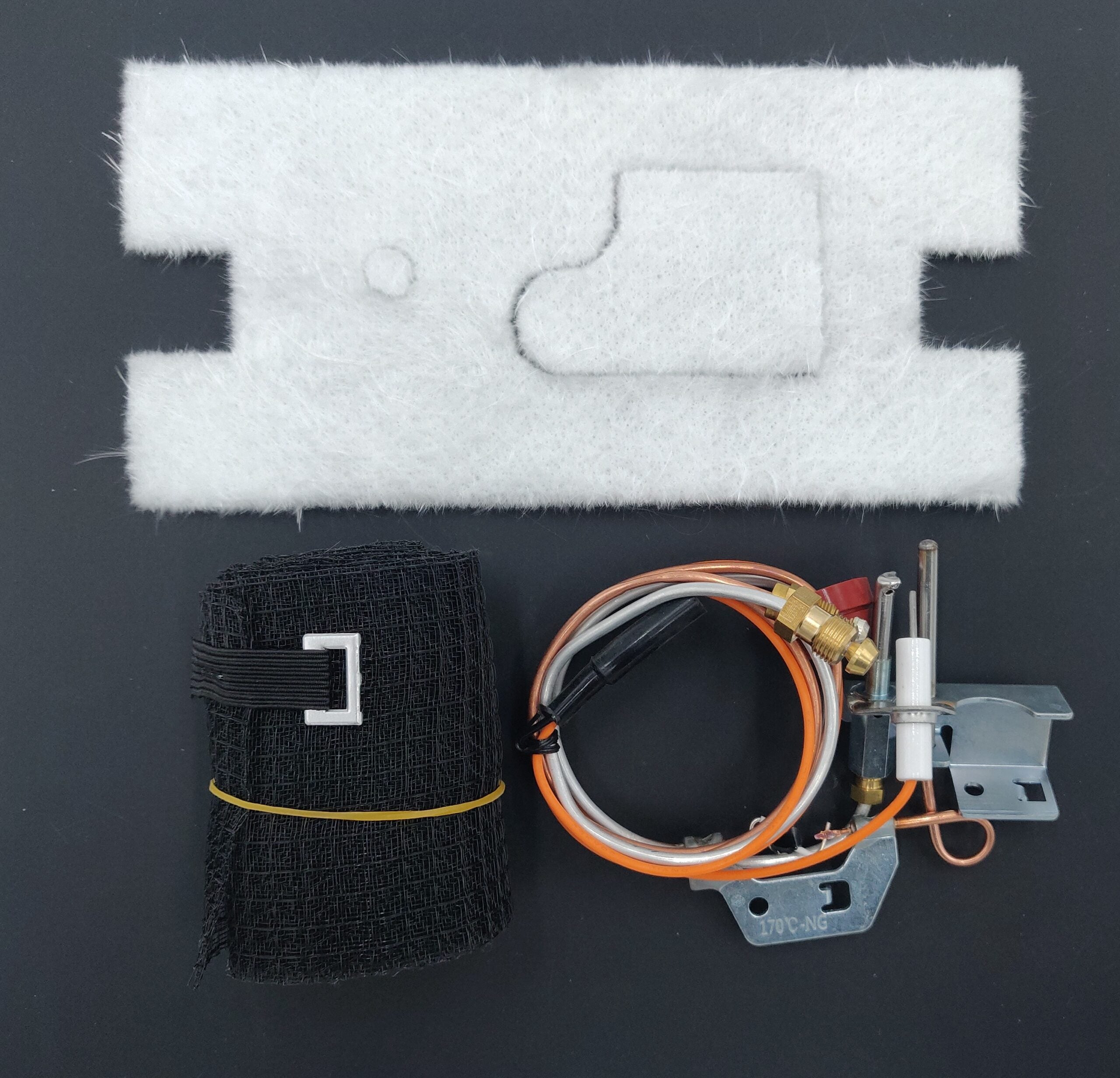

NBK-20430K – Pilot Assembly 170° NG Kit – AO Smith / Lochinvar – Special Order
The NBK-20430K Pilot Assembly 170° NG Kit is a natural gas pilot assembly designed to provide dependable ignition and flame control for AO Smith and Lochinvar water heaters. This replacement part matches AO Smith OEM number 100109261 and Lochinvar 9003488005, featuring a 170-degree orientation ideal for specific burner and manifold configurations.
⚠️ SPECIAL ORDER NOTICE: This is a special order item sourced from NBK. Please allow 1–2 business days for processing.
Key Features
✅ 170° Pilot Tube Orientation: Ideal for burner assemblies requiring angled gas line routing
✅ Stable Ignition Performance: Delivers consistent pilot flame and spark reliability for natural gas systems
✅ OEM-Equivalent: Direct replacement for AO Smith 100109261 and Lochinvar 9003488005
Specifications
📌 SKU: 20430K
📌 Category: Water Heater Parts / Pilot Assemblies
📌 Fuel Type: Natural Gas (NG)
📌 Orientation: 170-Degree
📌 OEM Brands: AO Smith, Lochinvar
📌 Replaces OEM Parts: 100109261, 9003488005
📌 UPC: 810069185019
📌 Application: Residential and commercial AO Smith and Lochinvar natural gas water heaters
Equivalent To
AO Smith: 100109261
Lochinvar: 9003488005
Why Choose the NBK-20430K?
Restore safe, consistent ignition in your gas water heater with the NBK-20430K. Whether you're replacing a faulty pilot assembly or performing routine maintenance, this OEM-equivalent part ensures fast installation, proper fit, and long-lasting performance in systems requiring a 170° pilot orientation.
Shipping & Availability
🚚 Special order from NBK. Please expect a 1–2 business day processing delay.
