Blower Motor | S-Pole 115V 60 Hz, Rpm 3000 (1TDP1) | NBK-12188S

NBK-12188S – Blower Motor S-Pole 115V 60Hz, RPM 3000

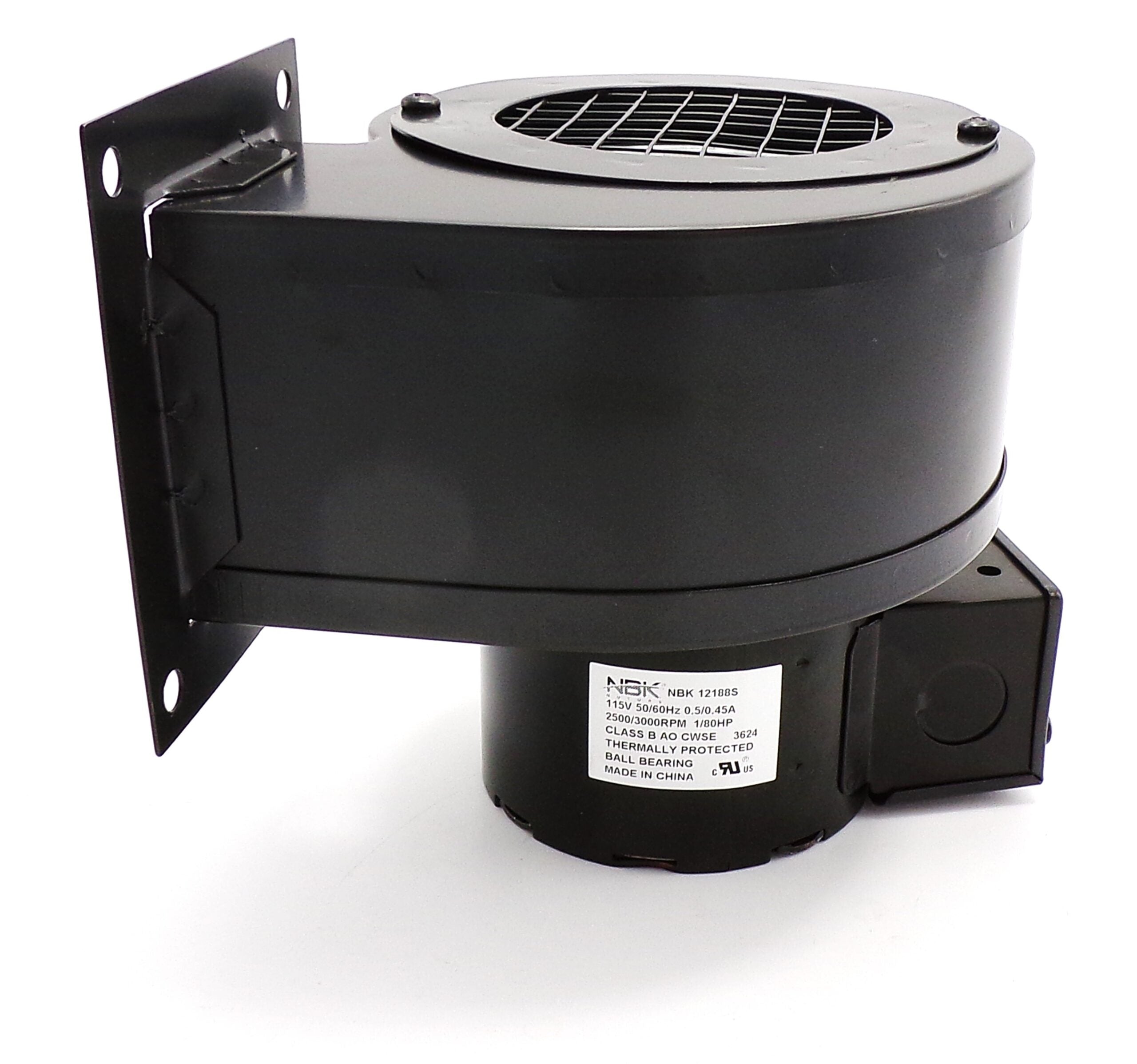

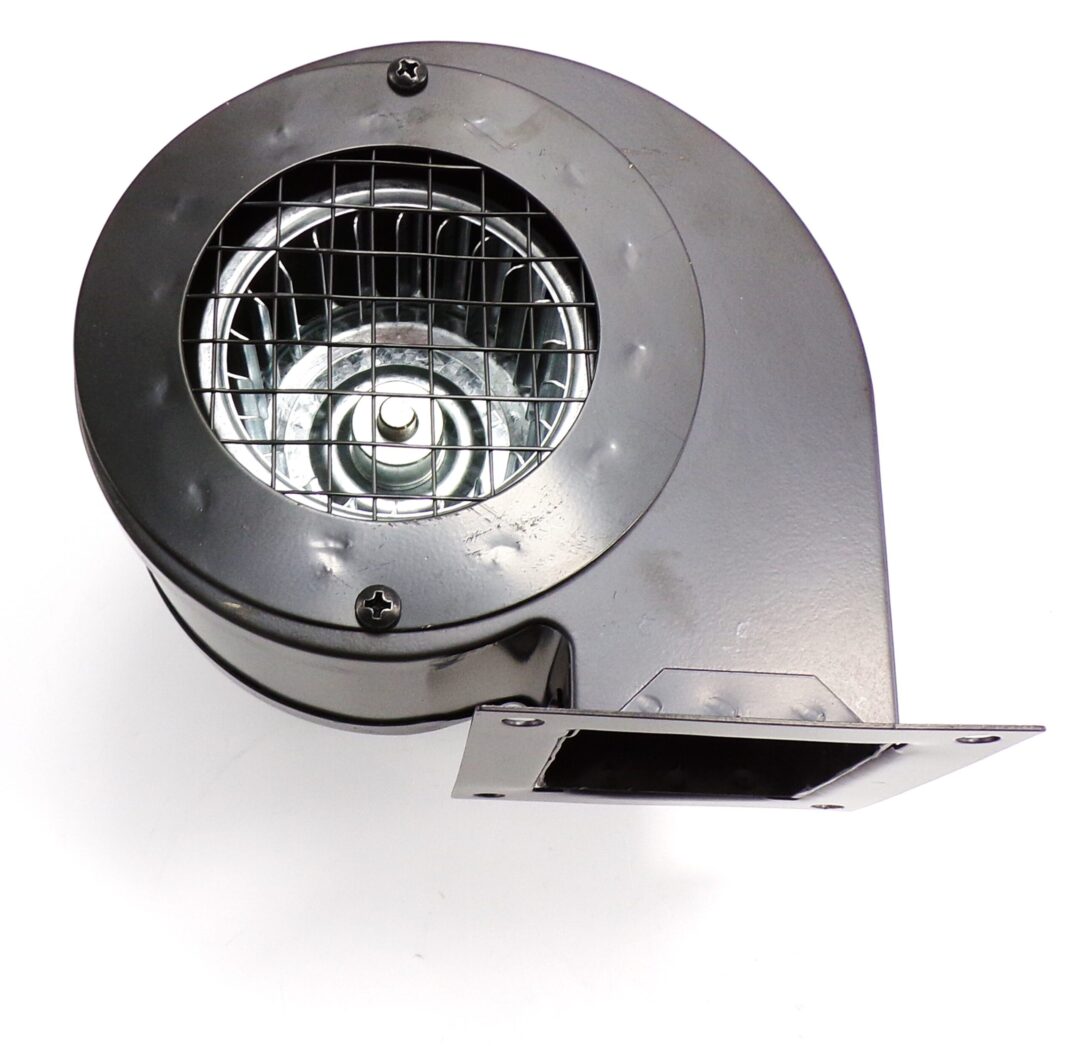

The NBK-12188S Blower Motor is a direct replacement shaded pole motor designed for high-efficiency airflow in heating systems. With a compact footprint and quiet, dynamically balanced performance, this 115V blower motor is ideal for installations in WoodMaster, Heatmor, Johnson, and similar units. It replaces popular OEM models such as the Fasco B75 and Dayton 1TDP1, and is built for long-lasting, reliable service in demanding HVAC applications.
⚠️ SPECIAL ORDER NOTICE: This is a special order item sourced from NBK. Please allow 1–2 business days for processing prior to shipment.

Key Features
✅ OEM-Compatible Design: Drop-in replacement for Fasco B75, Dayton 1TDP1, and other common shaded pole blowers
✅ Quiet & Balanced: Dynamically balanced motor operates with minimal noise and vibration under load
✅ Compact Footprint: Ideal for use in tight enclosures like outdoor boilers, wood furnaces, and pellet stoves

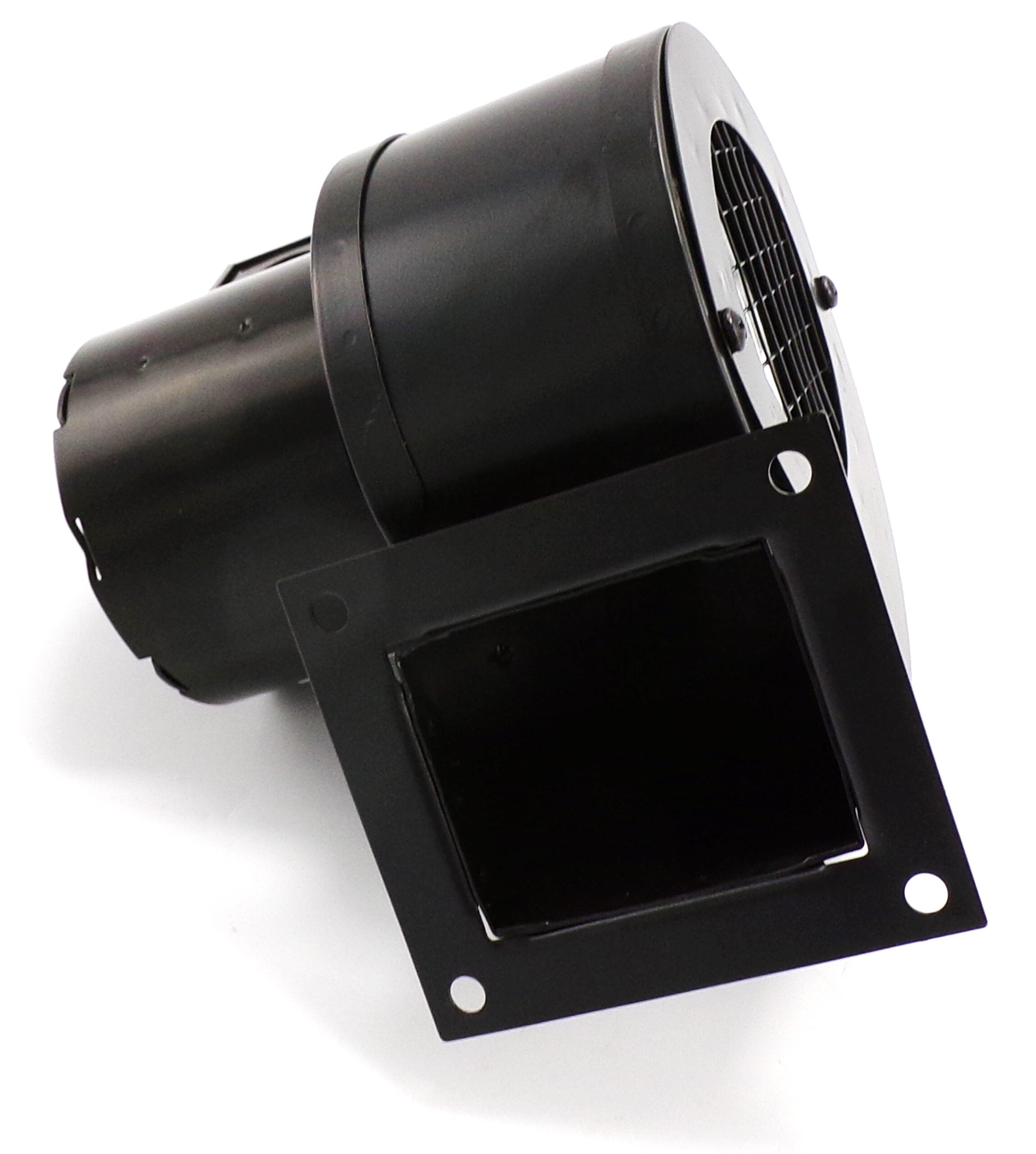

✅ Includes Mounting Flange: Easy installation with pre-attached discharge mounting flange

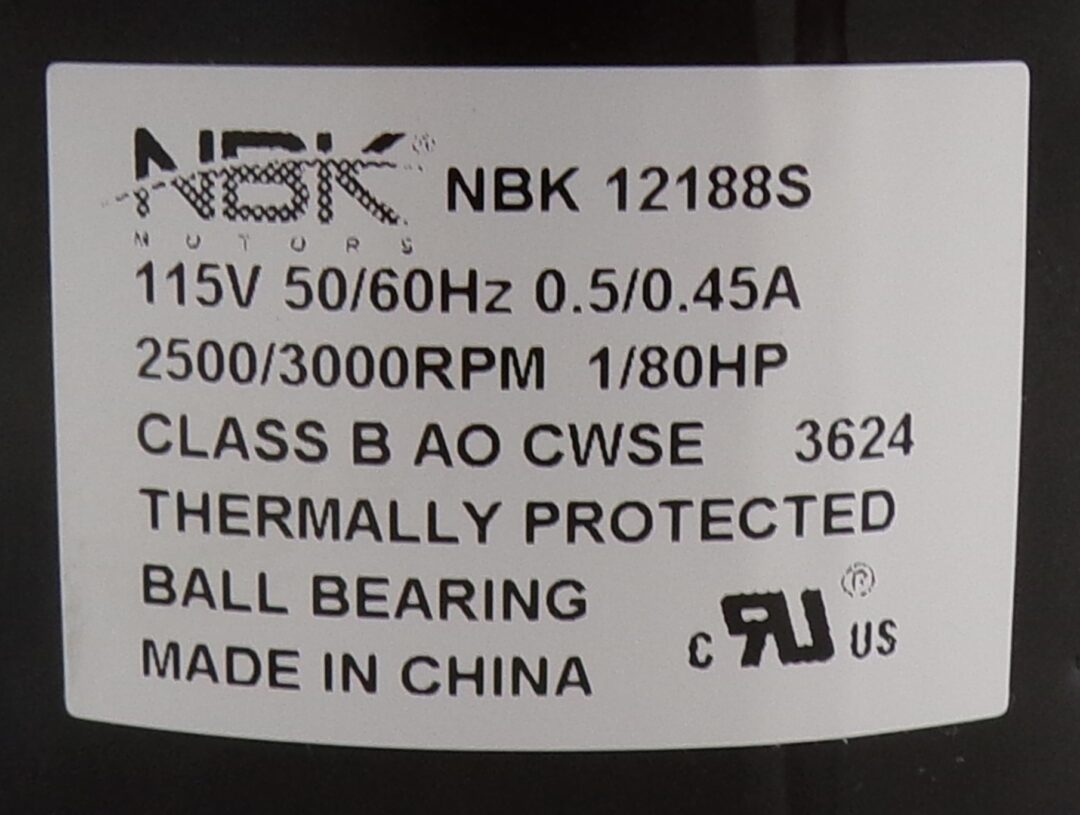

Specifications
📌 SKU: 12188S
📌 Alternate SKU: FN1TDP1
📌 Category: Blower / Air Handler / HVAC
📌 Voltage: 115V, 60Hz
📌 Amperage: 0.31A (Full Load)
📌 Motor RPM: 3000
📌 Motor Type: Shaded Pole
📌 CFM @ 0.000” SP: 89
📌 Mounting Position: All Position
📌 Motor Enclosure: Open
📌 Temperature Range: -20°F to 104°F
📌 Max Ambient & Inlet Temp: 104°F
📌 Motor Insulation: Class B
📌 Bearing Type: Ball
📌 Overall Dimensions: H 5-3/4", W 5-3/8", D 5-3/8"
📌 Blower Outlet Shape: Rectangular
📌 Includes: Discharge Mounting Flange
📌 Certifications: UL & C-UL Recognized (E47479)

Equivalent To
Fasco: B75, B75F, 7021-3484, 7021-4772, 7021-4797, 7021-5757, 7021-2367, 7021-4437
Dayton: 1TDP1, 4C004
A.O. Smith: JA1M216
Johnstone: X89-308

Why Choose the NBK-12188S?
The NBK-12188S is trusted by HVAC professionals for its compact yet powerful performance and OEM-level compatibility. Whether you're replacing a failed blower in a WoodMaster 3300, Heatmor 100, or Johnson Jr model, this motor offers reliable airflow, reduced noise, and easy installation—making it a smart, long-term solution.
