US Stove Flue Baffle (23397) – 14-3/4" x 14-1/2" Steel OEM Replacement for Hot Blast & Ashley Furnaces

US Stove Flue Baffle – 23397 | 14-3/4" x 14-1/2" Steel OEM Replacement | Fits Hot Blast & Ashley Furnaces

Restore your stove’s efficiency and protect the firebox with the US Stove Flue Baffle (part #23397). This OEM replacement redirects smoke flow into the flue while acting as a flame shield for the firebox top. Engineered from heavy-duty steel, it is designed to withstand high heat and daily use. Sold individually—many stoves require more than one baffle plate.

Key Features:

• OEM Replacement – Matches original specifications for proper fit and function
• Improves Draft Efficiency – Redirects smoke for better airflow and combustion
• Firebox Protection – Shields the firebox top from direct flame exposure
• Heavy-Duty Steel Construction – Built for durability under extreme heat
• Sold Individually – Check your manual to confirm how many baffles your unit requires

Specifications:

• Part Number: 23397 (also replaces 99723901)

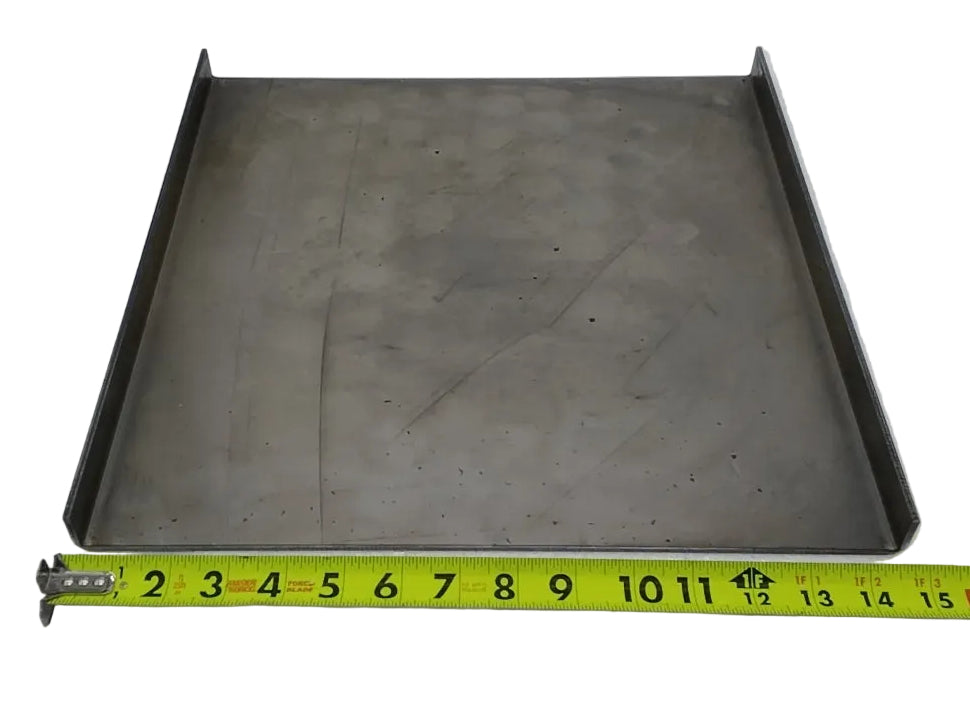

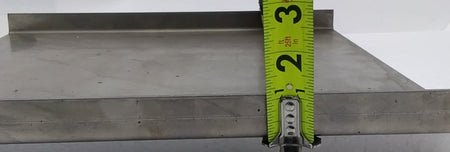

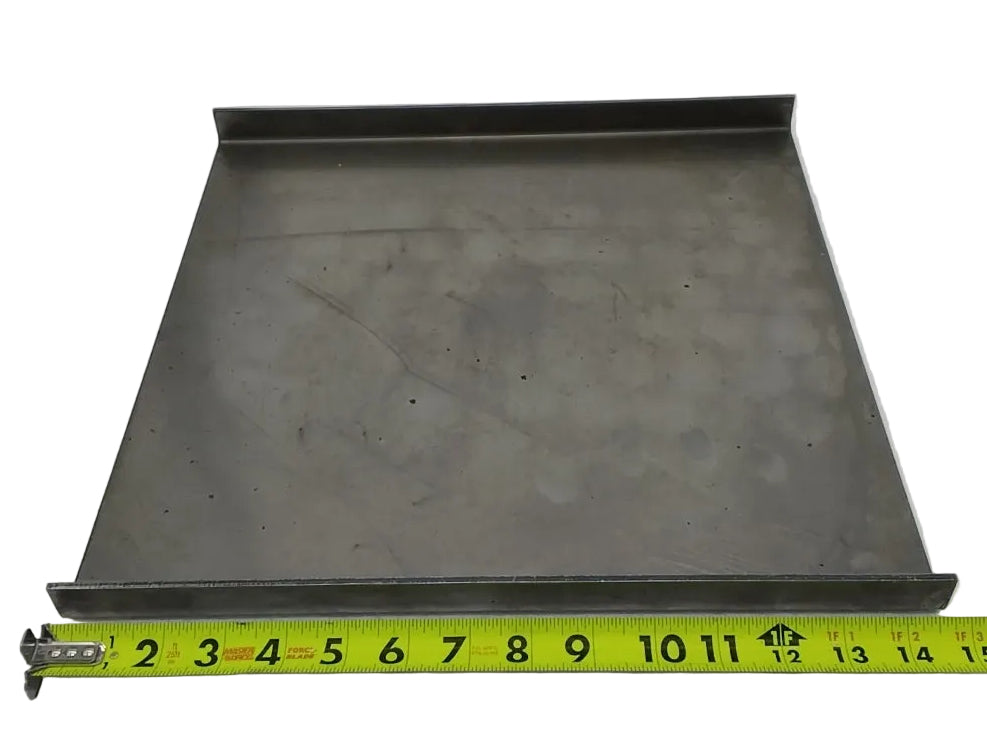

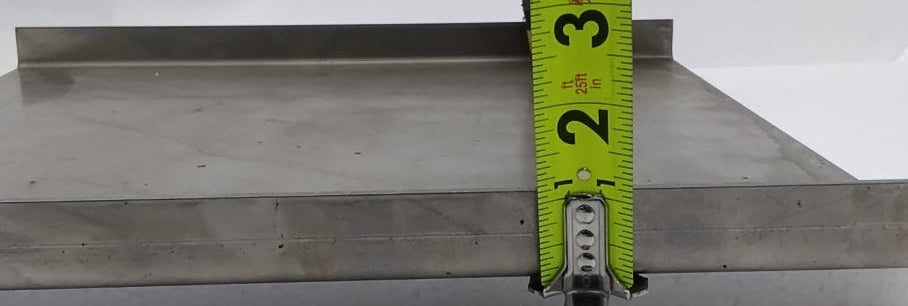

• Dimensions: Approx. 14-3/4" W x 14-1/2" H (some references list 16-1/4" x 14-3/4")
• Material: High-strength steel
• Quantity: 1 baffle plate (most units require more than one)
• Manufacturer: US Stove Company
• Application: Smoke deflection and firebox heat shielding

Compatible Models:

• US Stove Hot Blast: 1300 (models made 1994 and later), 1357M
• US Stove Ashley: 22AF

May also fit additional models. Always verify part number and dimensions with your stove’s owner’s manual.

Pairs well with: Ashley Stove Parts, Hot Blast Parts and US Stove Company Parts

Why Choose the US Stove 23397 Flue Baffle?

A cracked, warped, or missing flue baffle allows heat to escape too quickly, reduces efficiency, and exposes the firebox to excessive heat. Replacing worn components with the OEM 23397 flue baffle restores proper airflow, improves heat retention, and protects internal furnace components. Built to factory standards, this baffle ensures reliable performance and long service life.

Installation Instructions:

Allow the furnace to cool completely before servicing. Ensure all embers are extinguished and remove ash from the firebox.

Open the firebox door and locate the existing flue baffle plates positioned near the top of the firebox.

Carefully slide or lift the old baffle plates out of their support brackets or ledges. Use caution, as baffles may be heavy or brittle.

Clean the baffle support area to remove ash and debris. Inspect brackets and firebox surfaces for damage or warping.

Insert the new 23397 steel flue baffle into position, ensuring it sits flat and properly redirects exhaust toward the flue outlet.

If your furnace uses multiple baffles, repeat the process until all required plates are installed.

Close the firebox door and resume normal operation.

Installation tip: Never operate the furnace without the correct number of baffles installed. Missing baffles can reduce efficiency and cause permanent firebox damage.
