How to DIY a Wood Stove Door Gasket: Easy Steps

If your wood stove fire burns through logs faster than you can stack them, or if you’re constantly fighting a layer of soot on the glass, the problem might be smaller than you think. That rope-like seal around your stove door is the gasket, and it’s the gatekeeper of your stove’s efficiency and safety. When it wears out, it lets in too much air, turning your controlled burn into an expensive bonfire. The good news is that this is a fix you can absolutely handle yourself. This guide will walk you through every step of a DIY wood stove door gasket replacement, from picking the right materials to ensuring a perfect, airtight seal.

Key Takeaways

• A healthy gasket means an efficient stove: It creates an airtight seal critical for controlling airflow, helping you get more heat from less wood and preventing dangerous gases from entering your home.
• Know the signs of a worn-out gasket: Look for visible fraying or flattening, and use the simple dollar bill test to check your seal. If the bill slides out easily from the closed door, it’s time for a replacement.
• Proper installation is crucial for a lasting seal: To get it right, thoroughly clean the channel of old adhesive, press the new gasket in without stretching it, and give the adhesive a full 24 hours to cure before lighting a fire.

What Is a Wood Stove Gasket and Why Does It Matter?

If you’ve ever looked closely at your wood stove door, you’ve probably noticed the rope-like seal tucked into the channel around its edge. That’s the gasket, and it’s one of the most important, yet overlooked, parts of your stove. Its job is simple but critical: to create an airtight seal when the door is closed. This seal is the gatekeeper, preventing unwanted air from leaking into the firebox and stopping smoke, embers, and dangerous gases from escaping into your home.

Think of it as the weatherstripping for your stove. A good seal is essential for both efficiency and safety. Without it, you lose control over the fire. Too much air gets in, causing the wood to burn way too quickly. A worn-out or damaged gasket can turn your cozy, efficient heat source into a fuel-guzzling fireplace that struggles to keep you warm and poses a serious safety risk. That’s why regularly inspecting and replacing your wood stove gaskets is a non-negotiable part of stove maintenance. It’s a small component that makes a huge difference in performance, safety, and even your heating bill. Taking care of it ensures your stove runs the way it was meant to, keeping your home warm and your family safe all winter long.

How Gaskets Keep Your Stove Running Efficiently

A good gasket gives you complete control over your stove’s airflow, which is the key to an efficient fire. When the gasket is properly sealed, the only air feeding the flames is the air you allow through the stove’s vents or dampers. This lets you regulate the burn rate, allowing the wood to combust slowly and completely. The result? You get more heat from every log and use less fuel throughout the season.

On the flip side, a faulty gasket lets unregulated air seep in, fanning the flames and causing the fire to burn too hot and fast. This not only wastes wood but can also lead to overheating, which can damage internal stove components like the baffle or even your catalytic combustor. A tight seal also ensures that all the smoke and harmful byproducts, like carbon monoxide, are directed up the chimney instead of into your living space.

Controlling Airflow for a Better, Cleaner Burn

Proper airflow management is what separates a roaring, out-of-control fire from a clean, steady burn that produces consistent heat. Your stove’s gasket is the foundation of this control. By creating a sealed environment, it allows the stove to operate exactly as it was designed, burning wood at an optimal temperature for maximum heat output and minimal smoke. This leads to a cleaner burn with less creosote buildup in your chimney, which is a major fire hazard.

A simple way to check if your gasket is doing its job is with the "Dollar Bill Test." Close the stove door on a dollar bill. If you can pull the bill out easily, your seal is too loose, and it’s likely time for a replacement. A good seal will hold the bill firmly in place. Performing this quick test regularly helps you catch a failing gasket before it starts wasting your fuel and compromising your home’s safety.

Is It Time to Replace Your Wood Stove Gasket?

Your wood stove gasket might seem like a small detail, but it plays a huge role in your stove's safety and efficiency. This simple rope seal creates an airtight barrier around the door, giving you control over how your fire burns. Over time, gaskets wear out from the constant heat and pressure. Knowing when to replace yours is key to keeping your stove in top shape. Not sure if it’s time for a new one? Let’s look at a few clear signs.

Visual Signs of Wear and Tear

The easiest way to check your gasket’s health is to give it a good look. Open your stove door and inspect the rope seal. A healthy gasket is pliable and full, but a worn-out one will show obvious signs of distress. Look for areas where the gasket looks frayed, flattened, or brittle. You might even see parts that are coming loose or falling out of the channel. Another visual clue is a sudden increase in smoke or soot on the glass. If the door feels loose when you latch it or doesn't seem to close as tightly as it used to, your gasket is likely the culprit.

Performance Clues That It's Time for a New Gasket

Sometimes, your stove’s performance will tell you what your eyes can’t see. A bad gasket lets too much air into the firebox, which can cause several problems. You might notice your fires burn way too hot and fast, even when you close the damper to slow them down. This not only wastes firewood but can also damage the internal components of your stove over time. A leaky seal can also let smoke and dangerous carbon monoxide into your home. If you find yourself cleaning soot off the stove glass more often, it’s another strong indicator that your gaskets are failing and need to be replaced.

How to Use the "Dollar Bill Test" to Check Your Seal

If you’re still not sure, try the "dollar bill test." It’s a simple, effective way to check the integrity of your door seal. Take a dollar bill and close it in the stove door, leaving a bit sticking out. Now, try to pull it out. If you feel strong resistance or can’t pull it out at all, your seal is tight and doing its job. If the bill slips out easily with no drag, the gasket is worn and too loose to create a proper seal. You should repeat this test on all four sides of the door to check for any inconsistent or weak spots in the seal.

Gather Your Tools and Materials for the Job

Getting ready for any DIY project is half the battle, and replacing your wood stove gasket is no exception. Taking a few minutes to gather the right supplies will make the entire process smoother and ensure you get a perfect, long-lasting seal. With the right tools and materials on hand, you’ll be able to work efficiently and safely, getting your stove back in top shape without any last-minute trips to the store. Let’s walk through exactly what you’ll need.

Choosing the Right Gasket Rope

First things first, you need the correct gasket. Most wood stove doors use a rope-style gasket, typically made of fiberglass. It’s crucial to get the right diameter for your stove model, so check your owner’s manual or measure the old gasket before you buy. Also, keep in mind that the gasket for the door is different from the one for the glass. The glass usually requires a flat, tape-like gasket to cushion it properly, and these two types aren’t interchangeable. Double-check that you’re purchasing the right kind of gasket rope for the door channel.

Finding a High-Temperature Adhesive

Your new gasket won’t do much good if it doesn’t stay in place. You’ll need a special high-temperature adhesive or cement designed for this job. Look for a product that can handle temperatures of at least 2000°F to withstand the intense heat from your stove. When shopping, try to avoid adhesives containing "soda ash," as they can become brittle and fail over time. A quality adhesive ensures your gasket forms a tight, durable bond that will keep your stove running efficiently and safely.

Your Toolkit and Safety Gear Checklist

You don’t need a professional-grade workshop for this project, just a few key items. Before you start, make sure you have everything on this list ready to go. It will save you time and keep you safe.

Your toolkit should include:

• The new fiberglass gasket
• High-temperature gasket adhesive
• Work gloves
• Safety glasses
• A flat-head screwdriver or putty knife
• A wire brush
• A tape measure and scissors

The screwdriver helps pry out the old gasket, and the wire brush is essential for cleaning the channel. And please, don’t skip the gloves and safety glasses. Protecting your hands and eyes is always the most important step.

How to Safely Remove the Old Gasket

Getting rid of the old gasket is the most labor-intensive part of the job, but don’t let that intimidate you. Taking your time here and doing it right will make installing the new one a breeze and ensure you get that perfect, airtight seal. A little bit of prep and some elbow grease are all you need to get your stove door ready for its upgrade. Let’s walk through how to do it safely and effectively.

Prep Your Workspace and Remove the Stove Door

First things first, let's get your area ready. Lay down an old blanket or a drop cloth in front of your stove to protect your floor from any stray adhesive or gasket bits. Next, carefully lift the stove door off its hinges and place it face-down on your protected surface. Working on a flat, stable surface is much easier and safer than trying to do this while the door is still attached. Most doors come off quite easily, but if you’re having trouble, check your owner’s manual for specific instructions. This simple prep work makes the entire process smoother.

Scrape Away the Old Gasket and Adhesive

Now it’s time to get to work. Start by pulling the old, frayed gasket rope out of its channel. It might come out in one piece, or it may crumble as you go. Once the rope is out, grab a flat-head screwdriver, a sturdy putty knife, or a wire brush to scrape out the leftover adhesive and any remaining gasket fragments. Be patient and thorough, as getting all the old gunk out is essential for a good seal later. You’ll want to get the channel as clean as you possibly can before you even think about installing your new wood stove gasket.

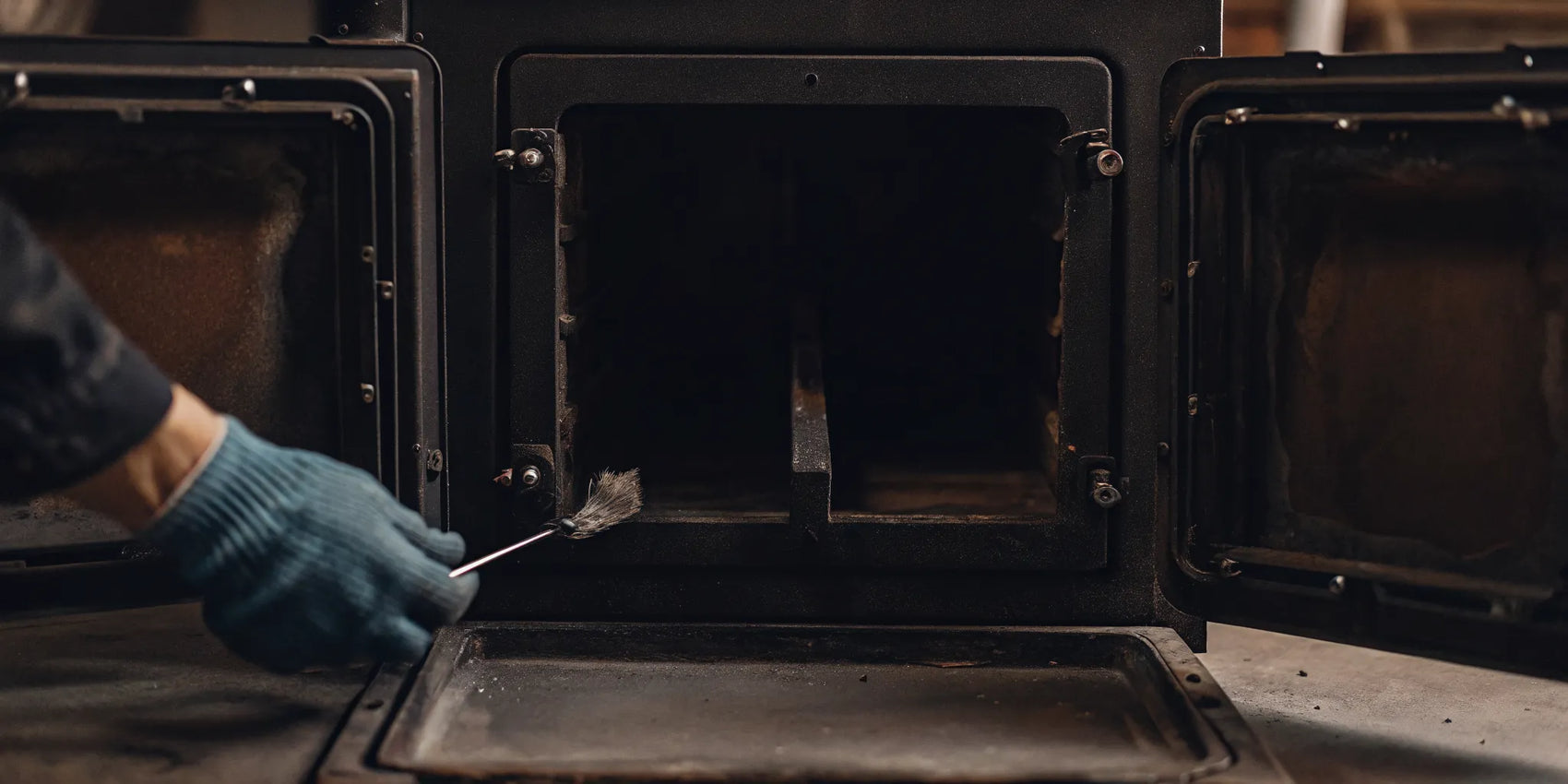

Clean the Gasket Channel for a Perfect Fit

Once you’ve scraped out the big stuff, the final cleaning step will ensure the new adhesive forms a super strong bond. Use a wire brush to give the channel one last good scrub, then use a shop vacuum with a brush attachment to clear out all the dust and debris. For a perfectly clean surface, you can wipe the channel with a cloth lightly dampened with acetone to remove any lingering residue. Your goal is to get the channel down to the bare metal. A pristine surface is the key to an airtight seal, which helps your stove burn efficiently and keeps your home safe.

Your Step-by-Step Guide to Installing a New Gasket

With the old gasket gone and the channel sparkling clean, you’re ready to install the new one. This is where your prep work pays off. Taking your time here ensures you get that perfect, airtight seal that will keep your stove running beautifully. The process is straightforward, but the details matter. You’ll want to be precise with your measurements and gentle with the new gasket material. Follow these three steps carefully, and you’ll have a freshly sealed stove door in no time.

Measure and Cut the New Gasket

First, let's get the right fit. The most accurate way to determine the size you need is to measure the width of the channel in the stove door where the gasket will sit. Don't measure the old, compressed gasket. Once you have your new gasket rope, wrap it around the channel to figure out the length. It’s smart to cut it just a little longer than you need. To get a clean cut and prevent fraying, wrap a piece of masking tape around the spot you plan to cut, then slice right through it.

Apply the High-Temperature Adhesive

Now for the adhesive. You need a cement specifically designed for this job, one that can handle temperatures of at least 2000°F. Squeeze a thin, continuous bead of the adhesive directly into the bottom of the clean gasket channel. You don’t need to go overboard; a little goes a long way. Applying too much can create a mess and prevent the gasket from sitting flush. Your goal is just enough glue to hold the gasket securely without it oozing out.

Press the New Gasket Firmly into Place

Starting at one point, gently press the new gasket into the adhesive-lined channel. Work your way around the door, carefully tucking the rope into place. The most important thing to remember is not to stretch the gasket as you go. Stretching it will make the rope thinner in spots, which can compromise the seal. When you get back to your starting point, trim any excess rope so the two ends meet perfectly without overlapping. Once it’s all in, close the door gently (don't latch it) to help set the gasket in place.

How to Test Your New Gasket Installation

You’re on the home stretch! With the new gasket in place, it’s time for a few final checks to make sure your hard work paid off. Taking a few minutes to test the seal now will ensure your stove runs safely and efficiently for the entire season. These simple tests confirm you have a perfect, airtight fit.

Check the Door's Alignment and Latch

First, carefully re-hang the stove door. Open and close it a few times to see how it feels. The door should swing smoothly and latch securely without you having to force it shut. Look closely around the entire perimeter where the door meets the stove body. You shouldn’t see any visible gaps. A properly aligned door is the first sign of a successful installation, confirming your new gaskets are seated correctly. If the door feels tight or crooked, the rope might be slightly out of place. It’s better to adjust it now than to discover a leak later.

Perform the Dollar Bill Test Again

Remember the dollar bill test we used to diagnose the old gasket? It’s time to do it again. This simple trick is the best way to check the quality of your new seal. Place a dollar bill halfway in the door opening and close the door on it. Now, try to pull the bill out. You should feel a definite drag. If it slides out with no resistance, your seal is too loose. If the bill is impossible to pull out or tears, the gasket might be too thick, which can put stress on your door hinges. Test several spots around the door to ensure a consistent, firm seal all the way around.

Let the Adhesive Cure (Don't Skip This!)

This last step is all about patience, but it’s one of the most important. Your high-temperature adhesive needs time to cure properly. After pressing the gasket into place, close the stove door and let it sit for at least two to three hours. This initial period helps the adhesive create a strong bond. After that, you still need to wait. Give the adhesive a full 24 hours to cure completely before you light a fire. Firing up the stove too early will cook the uncured cement, causing it to fail. A proper seal is essential for the performance of other components, like your catalytic combustor, so it's worth the wait.

Common Gasket Replacement Mistakes to Avoid

You’ve done the hard work of removing the old gasket and cleaning the channel. Now, you’re on the home stretch. But this is where a few small missteps can undo all your effort. Taking your time and being mindful during installation will ensure you get a perfect, airtight seal that lasts. By avoiding these common mistakes, you can feel confident that your wood stove will operate safely and efficiently for seasons to come. Let’s walk through what not to do, so you can get this project wrapped up correctly the first time.

Stretching the Gasket During Installation

When you’re fitting the new gasket into the channel, your first instinct might be to pull it tight for a snug fit. Resist that urge. Stretching the gasket rope makes it thinner, which is the exact opposite of what you want. A thinned-out gasket won't create the thick, robust seal your stove needs to control airflow properly. Instead, handle the new gasket gently. As you work your way around the door, carefully press the rope into the adhesive-lined channel. Don’t pull or tug on it. Just lay it in place, ensuring it fills the space without being stretched.

Not Cleaning the Channel Thoroughly

A strong bond starts with a clean surface. If you leave behind bits of old gasket or hardened adhesive, the new glue won’t stick properly. This will lead to a weak seal that fails quickly, forcing you to do the job all over again. Before you even think about applying new adhesive, make sure the gasket channel is completely clean. You want to get it down to the bare metal. Use a wire brush, flat-head screwdriver, or a scraper to remove every last bit of residue. A clean channel gives the new adhesive the perfect surface to grip, creating a durable, long-lasting seal.

Skipping the Adhesive Curing Time

Patience is a virtue, especially when it comes to high-temperature adhesive. After you’ve pressed the new gasket into place, the glue needs time to set and cure before it can handle the intense heat of a fire. If you light up your stove too soon, the heat will ruin the adhesive's bond, and the gasket will likely come loose. Once the gasket is installed, close the stove door and let it sit for at least a few hours to help the glue set. For a full cure, it’s best to wait 12 to 24 hours before using your stove. This waiting period is essential for a successful replacement.

How to Maintain Your New Gasket

You’ve successfully installed your new gasket, and your stove door is sealing perfectly. Great job! Now, let's talk about how to keep it that way. A little bit of regular maintenance can make a huge difference in how long your gasket lasts and how well your stove performs. Taking care of your new gasket ensures you get the most out of your wood stove, keeping your home warm and your family safe for years to come.

Create a Regular Inspection and Cleaning Routine

Making gasket checks a part of your routine is the easiest way to catch problems early. At the beginning of each heating season, give the gasket a quick look-over. Check for any spots that look frayed, flat, or brittle. Gently wipe it down with a dry cloth to remove any built-up soot or creosote. With average use, a quality gasket can last anywhere from five to 15 years, but if you use your stove frequently, you might need to replace your gaskets every four to six years. Regular inspections help you stay ahead of wear and tear.

Use Proper Burning Practices to Extend Gasket Life

How you use your stove directly affects your gasket’s lifespan. A good seal is essential for controlling the airflow to your fire, which helps you achieve an efficient, clean burn and prevents the stove from over-firing. A damaged gasket can waste wood by letting too much air in, sending precious heat right up the chimney. It can also damage your stove and even pose a health risk by allowing smoke into your room. Using quality, dry firewood and maintaining your catalytic combustor will also contribute to a healthier stove and a longer-lasting gasket.

Know When It's Time to Call a Professional

While replacing a gasket is a manageable DIY project, it’s also important to know when a problem might be bigger than just the seal. If you notice your fire is burning unusually fast, you see a lot more smoke or soot on the wood stove glass, or the gasket looks worn out soon after you’ve replaced it, it might be time to consult a professional. These could be signs of a warped door or another issue that needs an expert eye. Don’t hesitate to call for help if you feel something isn’t right; your safety is always the top priority.

Related Articles

• When to Replace Your Wood Stove Glass Gasket: A Complete Guide
• Hearthstone Castleton 8030 Wood Stove Gasket Kit (90-58300) – Complete

Frequently Asked Questions

How often do I really need to replace my wood stove gasket? There isn't a strict timeline, as it depends on how often you use your stove. A good quality gasket might last for several seasons, but it's best to inspect it annually before you start using your stove for the winter. Instead of following a rigid schedule, rely on the visual signs of wear and the dollar bill test. If the rope is frayed or flattened, or if the door seal feels loose, it's time for a replacement, regardless of how long it's been.

Is it normal for the stove door to be tight after installing a new gasket? Yes, a little bit of tightness is perfectly normal and actually a good sign. A new gasket is full and pliable, so it will create a much snugger seal than the old, compressed one you just removed. The door might require a bit more effort to latch at first, but it should still close securely without you having to force it. This snug fit will relax slightly over the first few fires as the gasket settles into place.

What's the difference between the door gasket and the glass gasket? While they both create seals, they are not the same and can't be used interchangeably. The door gasket is typically a thick, round rope that fits into a channel on the stove door to create an airtight seal. The glass gasket, on the other hand, is usually a flatter, tape-like material that cushions the glass against the metal frame, allowing it to expand and contract with the heat without cracking. Always make sure you buy the correct type for the job you're doing.

Can I just repair a small tear instead of replacing the whole thing? It might seem like a quick fix, but patching a gasket is not a good idea. A proper seal needs to be continuous and uniform to control airflow effectively. A patch creates a weak spot that will likely fail quickly, and it won't provide the consistent, airtight seal your stove needs for safe and efficient operation. For the best performance and your own peace of mind, it's always better to replace the entire gasket at once.

What are the biggest risks of ignoring a worn-out gasket? Ignoring a bad gasket can lead to two major problems: inefficiency and safety hazards. An improper seal allows unregulated air to enter the firebox, causing your fire to burn too hot and too fast. This wastes a significant amount of firewood and can damage internal stove parts. More importantly, a leaky seal can allow smoke and dangerous gases, including carbon monoxide, to escape into your home, creating a serious health risk.
